30

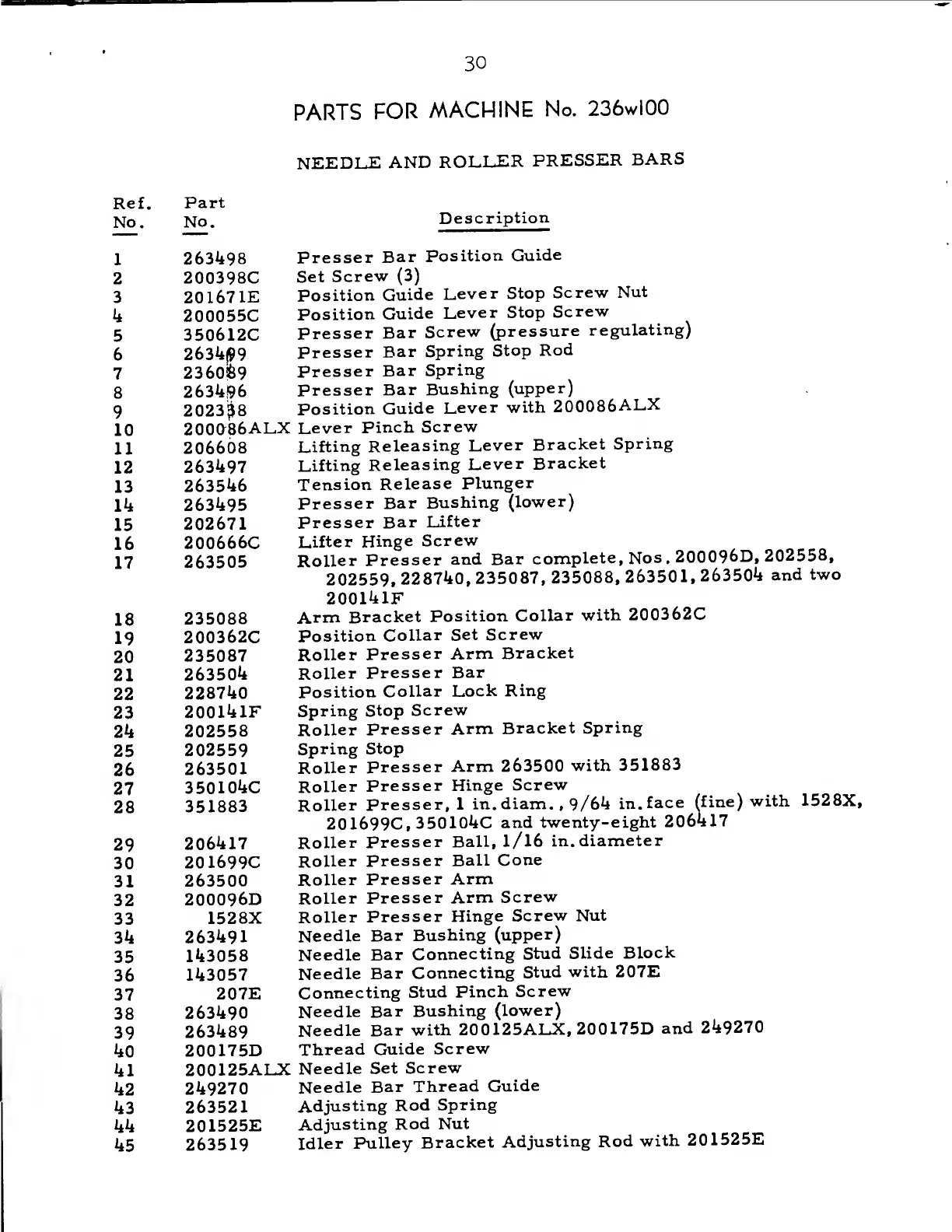

PARTS FOR MACHINE No. 236wl00
NEEDLE AND ROLLER PRESSER BARS
Ref. Part
No. No. Description
1
263498
2
200398C
3
201671E
4
200055C
5
350612C
6
2634(99
7
2360&9
8
263496
9
202338
10
200086ALX
11
206608
12
263497
13
263546
14
263495
15
202671
16
200666C
17
263505
18
235088
19
200362C
20
235087
21
263504
22
228740
23
200141F
24
202558
25 202559
26
263501
27
350104C
28
351883
29
206417
30
201699C
31
263500
32
200096D
33
1528X
34 263491
35
143058
36
143057
37
207E
38
263490
39
263489
40
200175D
41
200125ALX
42
249270
43
263521
44
201525E
45
263519
Presser Bar Position Guide
Set Screw (3)
Position Guide Lever Stop Screw Nut
Position Guide Lever Stop Screw
Presser Bar Screw (pressure regulating)
Presser Bar Spring Stop Rod
Presser Bar Spring
Presser Bar Bushing (upper)
Position Guide Lever with 200086ALX
Lever Pinch Screw
Lifting Releasing Lever Bracket Spring
Lifting Releasing Lever Bracket
Tension Release Plunger
Presser Bar Bushing (lower)
Presser Bar Lifter
Lifter Hinge Screw
Roller Presser and Bar complete, Nos. 200096D, 202558,
202559,228740,235087,235088,263501,263504 and two
200141F
Arm Bracket Position Collar with 200362C
Position Collar Set Screw
Roller Presser Arm Bracket
Roller Presser Bar
Position Collar Lock Ring
Spring Stop Screw
Roller Presser Arm Bracket Spring
Spring Stop
Roller Presser Arm 263500 with 351883
Roller Presser Hinge Screw
Roller Presser, 1 in.diam., 9/64 in. face (tine) with 1528X,
201699C, 350104C and twenty-eight 206417
Roller Presser Ball, 1 /16 in.diameter
Roller Presser Ball Cone
Roller Presser Arm
Roller Presser Arm Screw
Roller Presser Hinge Screw Nut
Needle Bar Bushing (upper)
Needle Bar Connecting Stud Slide Block
Needle Bar Connecting Stud with 207E
Connecting Stud Pinch Screw
Needle Bar Bushing (lower)
Needle Bar with 200125ALX, 200175D and 249270
Thread Guide Screw
Needle Set Screw
Needle Bar Thread Guide
Adjusting Rod Spring
Adjusting Rod Nut
Idler Pulley Bracket Adjusting Rod with 201525E
