32

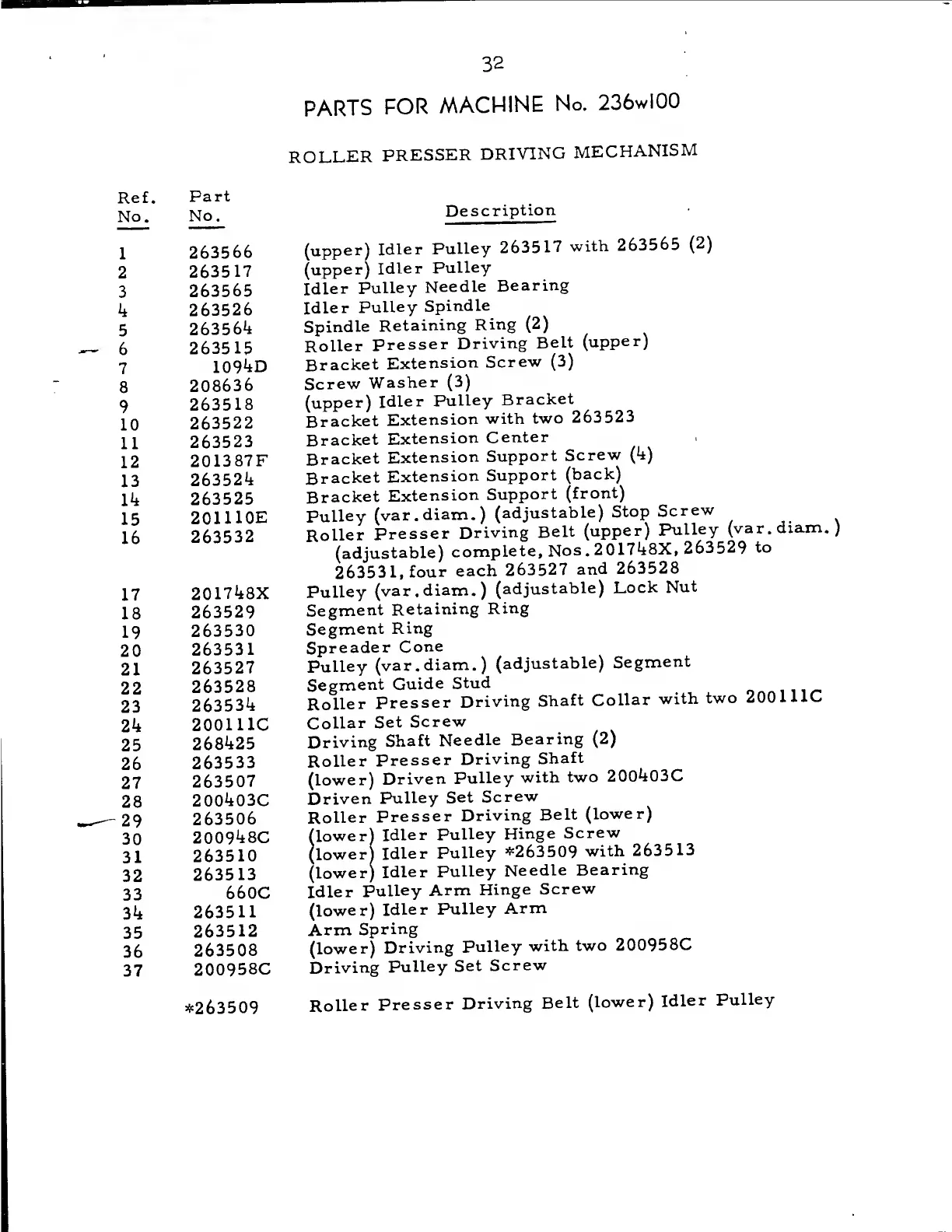

PARTS FOR MACHINE No. 236wl00
ROLLER PRESSER DRIVING MECHANISM
Ref. Part
No. No. Description
1 263566 (upper) Idler Pulley 263517 with 263565 (2)
2 263517 (upper) Idler Pulley
3 263565 Idler Pulley Needle Bearing
4 263526 Idler Pulley Spindle
5 263564 Spindle Retaining Ring (2)
6 263515 Roller Fresser Driving Belt (upper)
7 1094D Bracket Extension Screw (3)
8 208636 Screw Washer (3)
9 263518 (upper) Idler Pulley Bracket
10 263522 Bracket Extension with two 263523
11 263523 Bracket Extension Center
12 201387F Bracket Extension Support Screw (4)
13 263524 Bracket Extension Support (back)
14 263525 Bracket Extension Support (front)
15 201110E Pulley (var.diam.) (adjustable) Stop Screw
16 263532 Roller Presser Driving Belt (upper) Pulley (var.diajm. )
(adjustable) complete, Nos. 201748X, 263529 to
263531,four each 263527 and 263528
17 201748X Pulley (var.diam.) (adjustable) Lock Nut
18 263529 Segment Retaining Ring
19 263530 Segment Ring
20 263531 Spreader Cone
21 263527 Pulley (var.diam.) (adjustable) Segment
22 263528 Segment Guide Stud OAA111 _
23 263534 Roller Presser Driving Shaft Collar with two <sUUi.
24 200111C Collar Set Screw
25 268425 Driving Shaft Needle Bearing (2)
26 263533 Roller Presser Driving Shaft
27 263507 (lower) Driven Pulley with two 200403C
28 200403C Driven Pulley Set Screw
29 263506 Roller Presser Driving Belt (lower)
30 200948C (lower) Idler Pulley Hinge Screw
31 263510 (lower) Idler Pulley *263509 with 263513
32 263513 (lower) Idler Pulley Needle Bearing
33 660C Idler Pulley Arm Hinge Screw
34 263511 (lower) Idler Pulley Arm
35 263512 Arm Spring
36 263508 (lower) Driving Pulley with two 200958C
37 200958C Driving Pulley Set Screw
Roller Presser Driving Belt (lower) Idler Pulley
*263509
