11

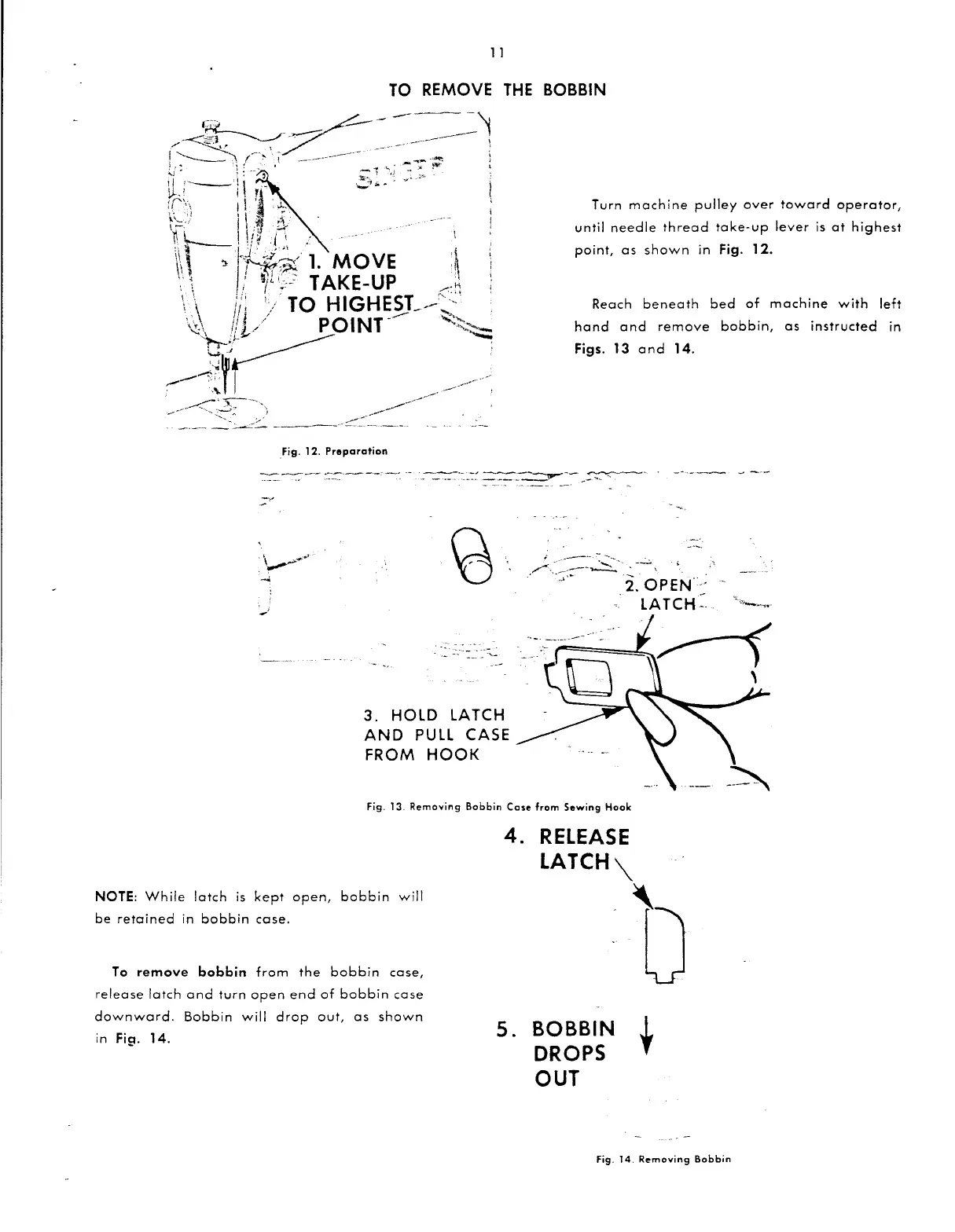

TO REMOVE THE BOBBIN
_Fig. 12. Preparation
3. HOLD LATCH
AND PULL CASE
FROM HOOK
Turn machine pulley over toward operator,
until needle thread toke-up lever is at highest
point, as shown in Fig. 12.
Reach beneath bed of machine with left
hand and remove bobbin, as instructed in
Figs. 13 and 14.
,,,.,.,, ./_., <:· .. ...;, .
. · -.,-- 2. OPEN·:_:
LATCH-
Fig. 13. Removing Bobbin Cose from Sewing Hook
NOTE: While latch is kept open, bobbin will
be retained in bobbin case.
To remove bobbin from the bobbin case,
release latch and turn open end of bobbin case
downward. Bobbin will drop out, as shown
in Fig. 14.
4.
5.
RELEASE
LATCH\
b
BOBBIN
t
DROPS
OUT
Fig. 14. Removing Bobbin
