13

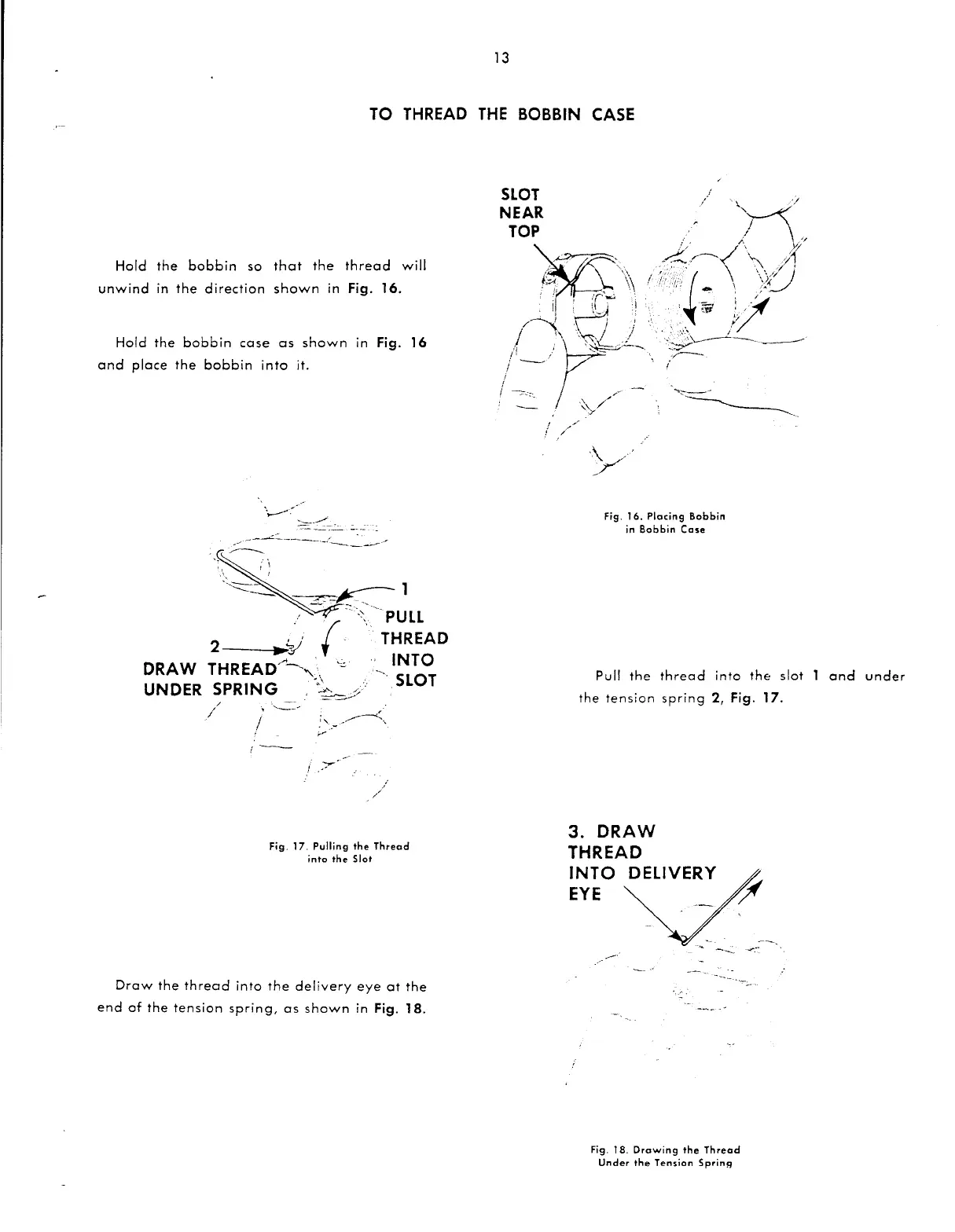

TO THREAD THE BOBBIN CASE
Hold the bobbin so that the thread will
unwind in the direction shown in Fig. 16.
Hold the bobbin case as shown in Fig. 16
and place the bobbin into it.
! ------
Fig. 17. Pulling the Thread
into the Slot
Draw the thread into the delivery eye at the
end of the tension spring, as shown in Fig. 18.
Fig. 16. Placing Bobbin
in Bobbin Cose
Pull the thread into the slot 1 and under
the tension spring 2, Fig. 17.
3. DRAW
THREAD
INTO DELIVERY /~
EYE /'
Fig. 18. Drawing the Thread
Under the Tension Spring
