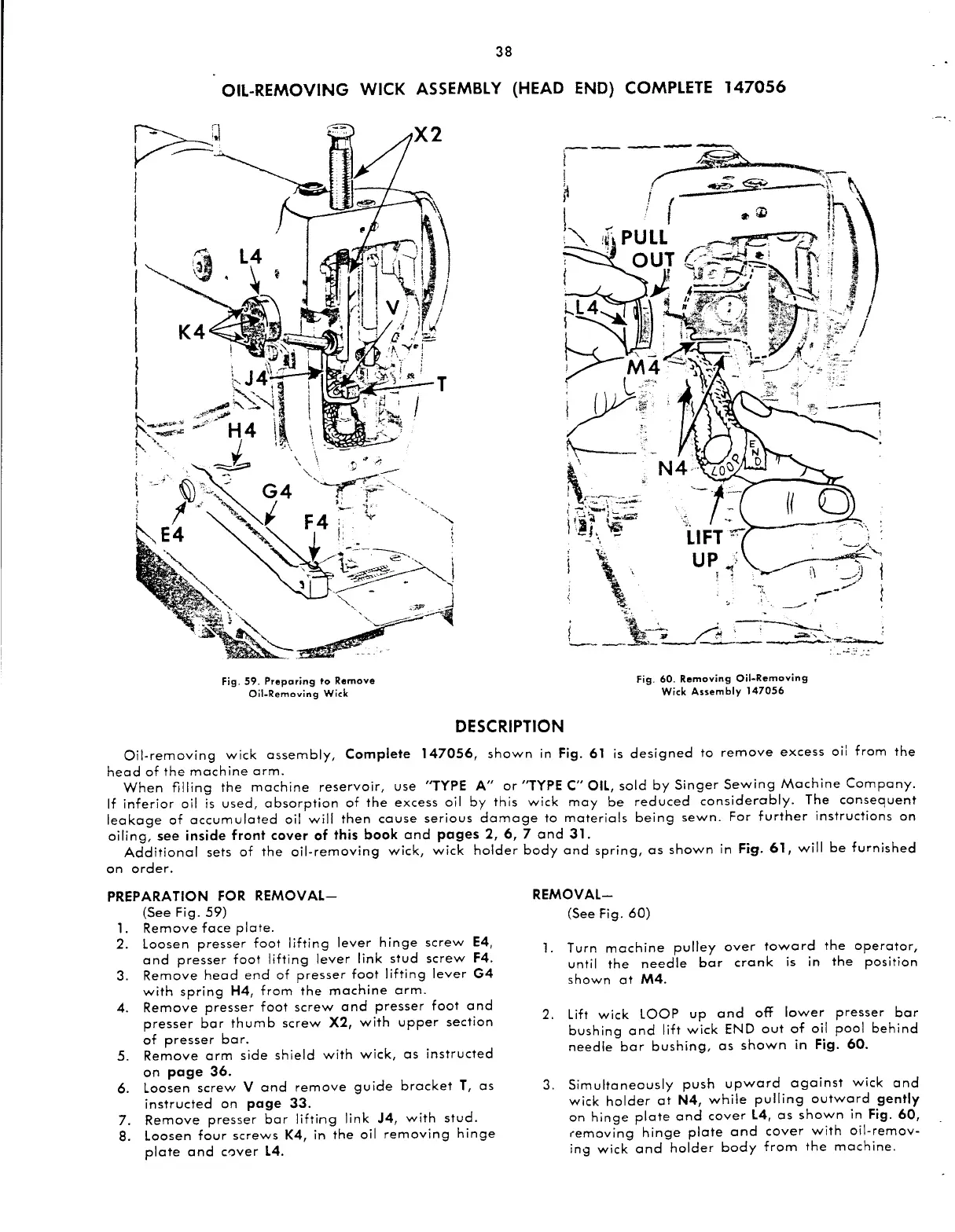

38
OIL-REMOVING WICK
ASSEMBLY
(HEAD
END}
COMPLETE
147056
Fig.
59.
Preparing
to
Remove
Oil-Removing
Wick
N4-ยท
.
---,.~-
~~-,\
LIFT~
Fig.
60.
Removing
Oil-Removing
Wick Assembly
147056
DESCRIPTION
Oil-removing
wick
assembly,
Complete
147056,
shown
in
Fig.
61
is
designed
to
remove
excess
oil
from
the
head
of
the
machine
arm.
When
filling
the
machine
reservoir,
use
"TYPE
A"
or
"TYPE C" OIL,
sold
by
Singer
Sewing
Machine
Company.
If
inferior
oil
is
used,
absorption
of
the
excess
oil
by
this
wick
may
be
reduced
considerably.
The
consequent
leakage
of
accumulated
oil
will
then
cause
serious
damage
to
materials
being
sewn.
For
further
instructions
on
oiling,
see
inside front cover
of
this book
and
pages 2,
6,
7
and
31.
Additional
sets
of
the
oil-removing
wick,
wick
holder
body
and
spring,
as
shown
in
Fig.
61,
will
be
furnished
on
order.
PREPARATION FOR
REMOVAL-
(See
Fig.
59)
l.
Remove
face
plate.
2.
Loosen
presser
foot
lifting
lever
hinge
screw
E4,
and
presser
foot
lifting
lever
link
stud
screw
F4.
3.
Remove
head
end
of
presser
foot
lifting
lever
G4
with
spring
H4,
from
the
machine
arm.
4.
Remove
presser
foot
screw
and
presser
foot
and
presser
bar
thumb
screw
X2,
with
upper
section
of
presser
bar.
5.
Remove
arm
side
shield
with
wick,
as
instructed
on
page
36.
6.
Loosen
screw
V
and
remove
guide
bracket
T,
as
instructed
on
page
33.
7.
Remove
presser
bar
lifting
link
J4,
with
stud.
8.
Loosen
four
screws
K4,
in
the
oil
removing
hinge
plate
and
cr.,ver
L4.
REMOVAL-
(See Fig.
60)
l.
Turn
machine
pulley
over
toward
the
operator,
until
the
needle
bar
crank
is in
the
position
shown
at
M4.
2.
Lift
wick
LOOP
up
and
off
lower
presser
bar
bushing
and
lift
wick
END
out
of
oil
pool
behind
needle
bar
bushing,
as
shown
in
Fig.
60.
3.
Simultaneously
push
upward
against
wick
and
wick
holder
at
N4,
while
pulling
outward
gently
on
hinge
plate
and
cover
L4,
as
shown
in
Fig.
60,
removing
hinge
plate
and
cover
with
oil-remov-
ing
wick
and
holder
body
from
the
machine.
