Singer 29K71 - Component Assemblies

16

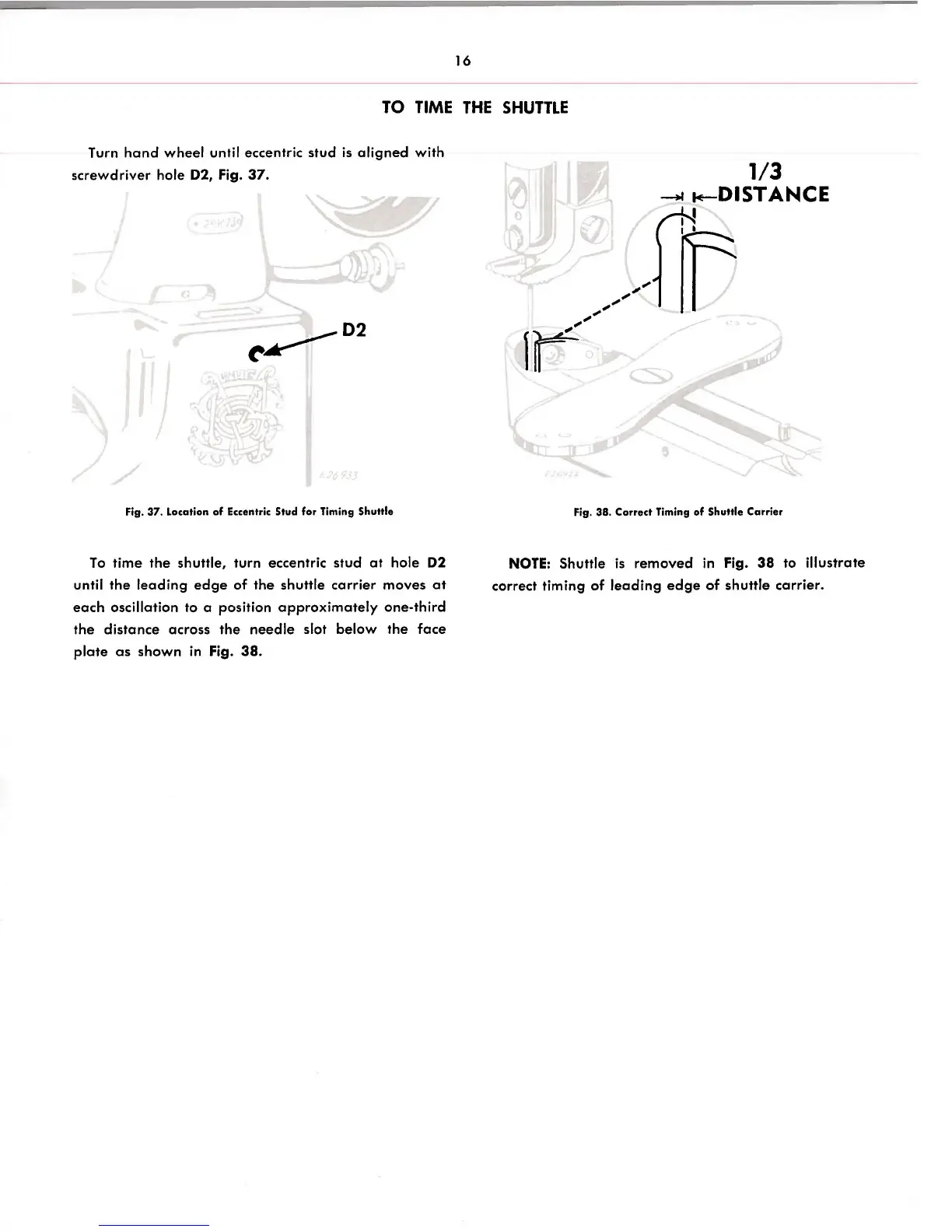

TO TIME THE SHUTTLE
Turn hand wheel until eccentric stud is aligned with
screwdriver hole 02, Fig. 37.
Fig. 37. Location of Eccentric Stud for Timing Shuttle
To time the shuttle, turn eccentric stud at hole 02
until the leading edge of the shuttle carrier moves at
each oscillation to a position approximately one-third
the distance across the needle slot below the face
plate as shown in Fig. 38.
1/3
--+~ .-DISTANCE
[;
Fig. 38. Correct Timing of Shuttle Carrier
NOTE: Shuttle is removed in Fig. 38 to illustrate
correct timing of leading edge of shuttle carrier.
