Singer 29K71 - Page 26

Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
22

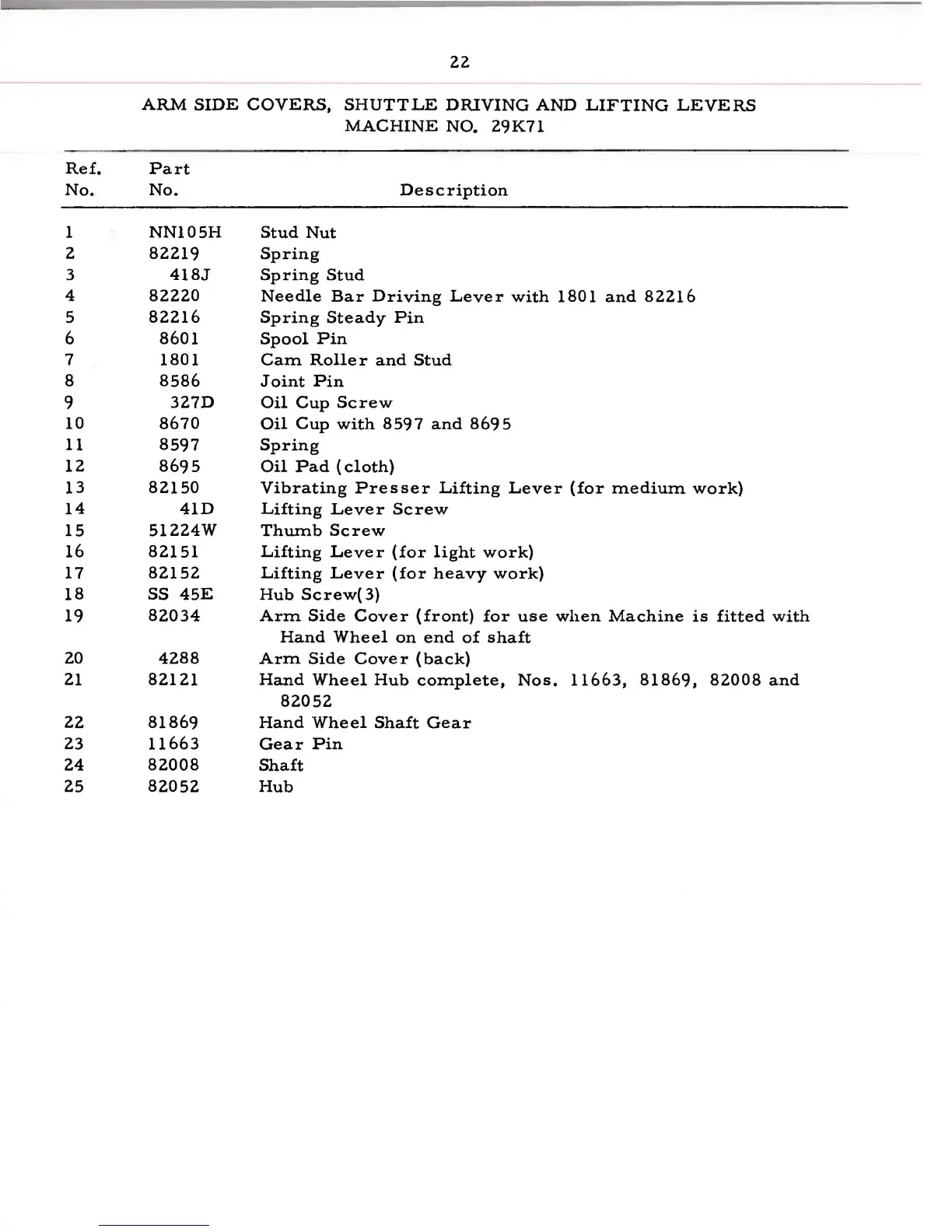

ARM SIDE COVERS, SHUTTLE DRlVING AND LIFTING LEVERS
MACHINE NO. 29K71
Part
No.
NN105H
82219
418J
82220
82216
8601
1801
8586
327D
8670
8597
8695
82150
41D
51224W
82151
82152
SS 45E
82034
4288
82121
81869
11663
82008
82052
Stud Nut
Spring
Spring Stud
Description
Needle Bar Driving Lever with 1801 and 82216
Spring Steady Pin
Spool Pin
Cam Roller and Stud
Joint Pin
Oil Cup Screw
Oil Cup with 8597 and 8695
Spring
Oil Pad (cloth)
Vibrating Presser Lifting Lever (for medium work)
Lifting Lever Screw
Thumb Screw
Lifting Lever (for light work)
Lifting Lever (for heavy work)
Hub Screw( 3)
Arm Side Cover (front) for use when Machine is fitted with
Hand Wheel on end of shaft
Arm Side Cover {back)
Hand Wheel Hub complete, Nos. 11663, 81869, 82008 and
82052
Hand Wheel Shaft Gear
Gear Pin
Shaft
Hub
