Singer 29K71 - Page 30

26

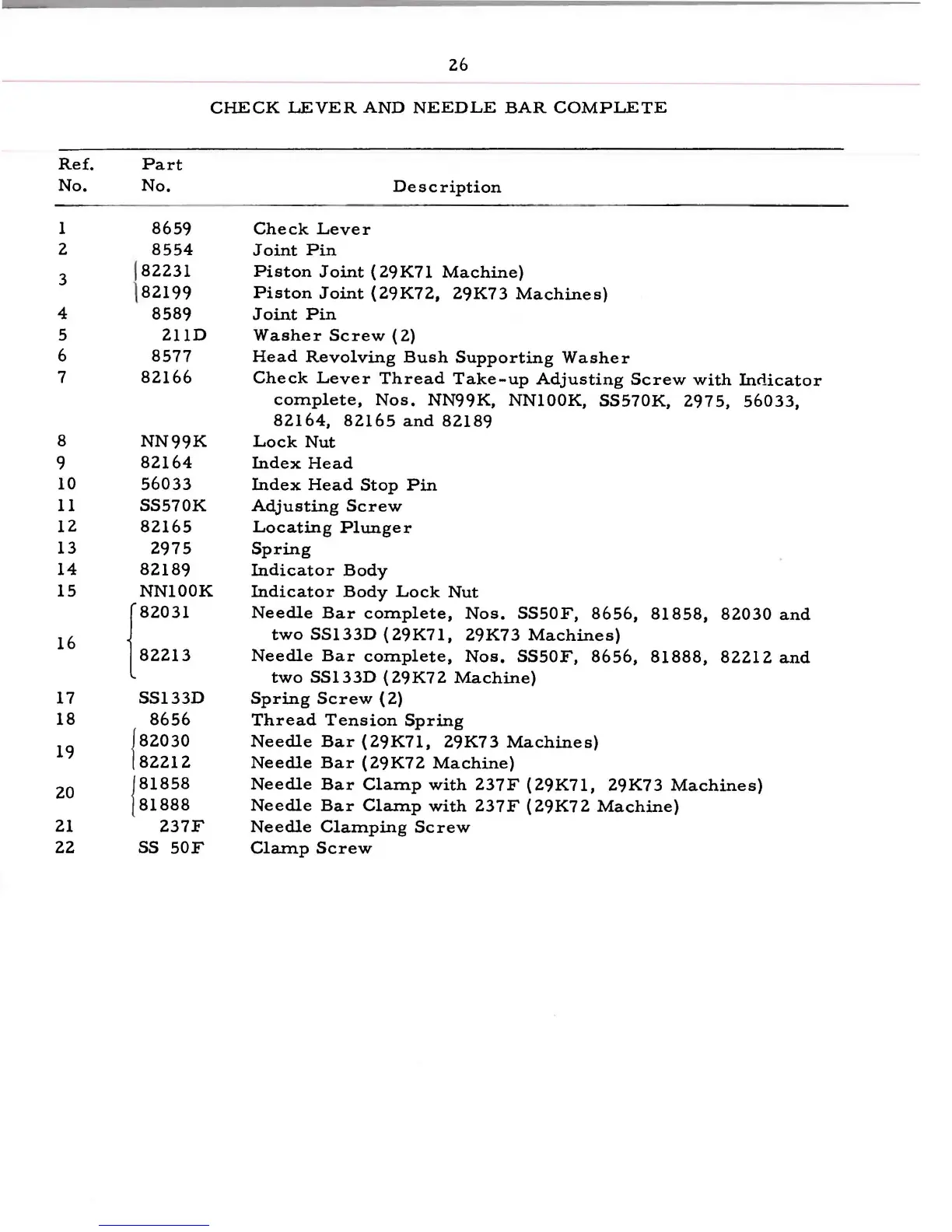

CHECK LEVER AND NEEDLE BAR COMPLETE
Ref.
Part
No.
No.
Description
1
8659 Check Lever
2
8554
Joint Pin
3
1 82231 Piston Joint ( 29K71 Machine)
) 82199
Piston Joint (29K72, 29K73 Machines)
4
8589
Joint Pin
5 211D Washer Screw (2)
6 8577
Head Revolving Bush Supporting Washer
7 82166
Check Lever Thread Take-up Adjusting Screw with Indicator
complete, Nos. NN99K, NN100K, SS570K, 2975, 56033,
82164, 82165 and 82189
8
NN99K Lock Nut
9
82164
Index Head
10
56033
Index Head Stop Pin
11 SS570K
Adjusting Screw
12
82165
Locating Plunger
13
2975
Spring
14
82189 Indicator Body
15 NNlOOK
Indicator Body Lock Nut
{82031
Needle Bar complete, Nos. SS50F, 8656,
81858,
82030 and
16
two SS133D (29K71, 29K73 Machines)
82213
Needle Bar complete, Nos. SS50F, 8656,
81888,
82212 and
two SS133D (29K72 Machine)
17
SS133D
Spring Screw ( 2)
18
8656
Thread Tension Spring
19
{ 82030
Needle Bar (29K71, 29K73 Machines)
82212
Needle Bar (29K72 Machine)
20
{ 81858
Needle Bar Clamp with 237F (29K71, 29K73 Machines)
81888
Needle Bar Clamp with 237F (29K72 Machine)
21 237F
Needle Clamping Screw
22 SS 50F
Clamp Screw
