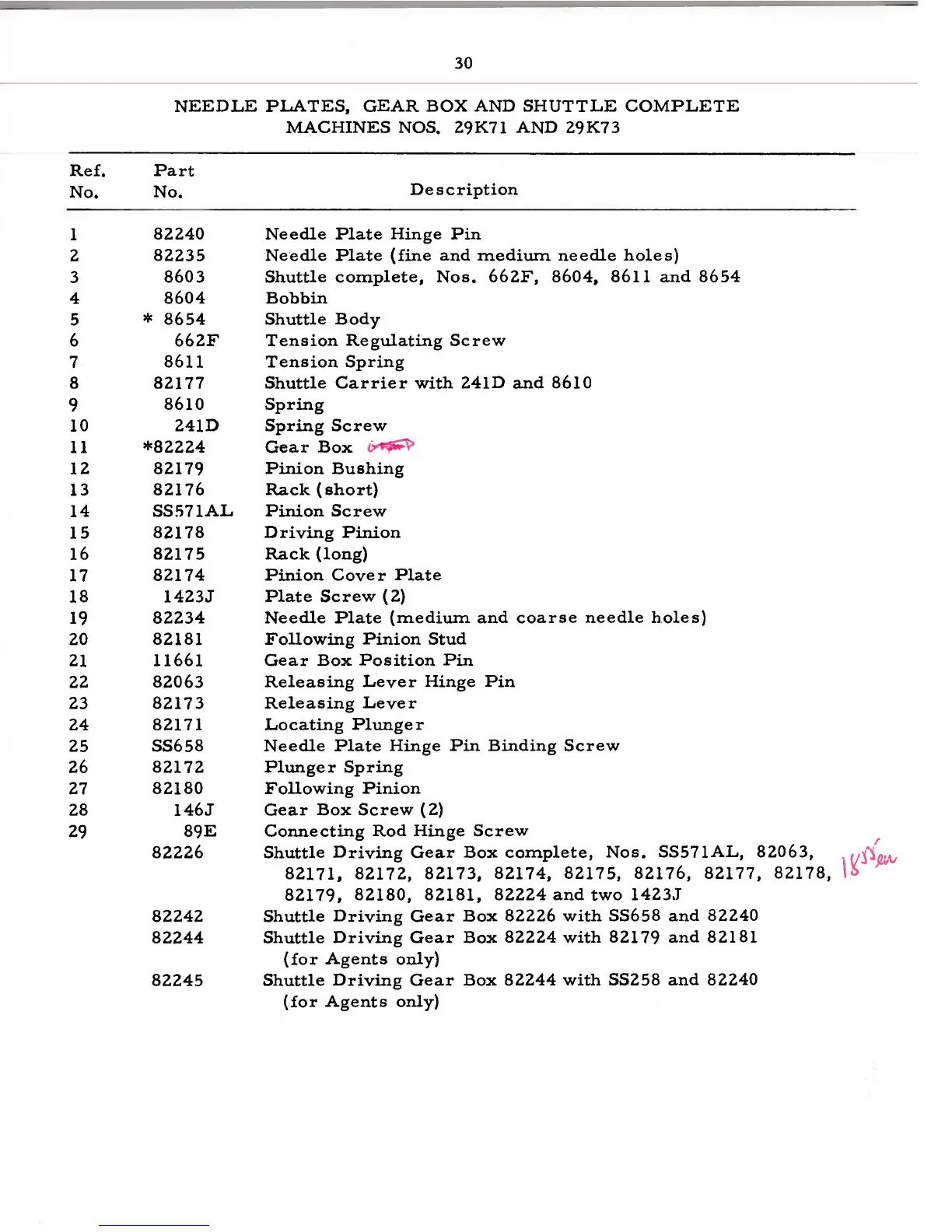

NEEDLE PLATES, GEAR BOX AND SHUTTLE COMPLETE
MACHINES NOS. 29K71 AND 29K73
Part
No.
82240
82235
8603
8604
* 8654
662F
8611
82177
8610
241D
*82224
82179
82176
SS571AL
82178
82175
82174
1423J
82234
82181
11661
82063
82173
82171
SS658
82172
82180
146J
89E
82226
82242
82244
82245
Description
Needle Plate Hinge Pin
Ne · edle Plate (fine and mediwn needle holes)
Shuttle complete, Nos. 662F, 8604, 8611 and 8654
Bobbin
Shuttle Body
Tension Regulating Screw
Tension Spring
Shuttle Carrier with 241D and 8610
Spring
Spring Screw
Gear Box ~
Pinion Bushing
Rack (short)
Pinion Screw
Driving Pinion
Rack (long)
Pinion Cover Plate
Plate Screw ( 2)
Needle Plate (medium and coarse needle holes)
Following Pinion Stud
Gear Box Position Pin
Releasing Lever Hinge Pin
Releasing Lever
Locating Plunger
Needle Plate Hinge Pin Binding Screw
Plunger Spring
Following Pinion
Gear Box Screw (2)
Connecting Rod Hinge Screw
I
Shuttle Driving Gear Box complete, Nos. SS571AL, 82063, j1
82171, 82172, 82173, 82174, 82175, 82176, 82177, 82178, \~ p,v
82179, 82180, 82181, 82224 and two 1423.J
Shuttle Driving Gear Box 82226 with SS658 and 82240
Shuttle Driving Gear Box 82224 with 82179 and 82181
(for Agents only)
Shuttle Driving Gear Box 82244 with SS258 and 82240
(for Agents only)
