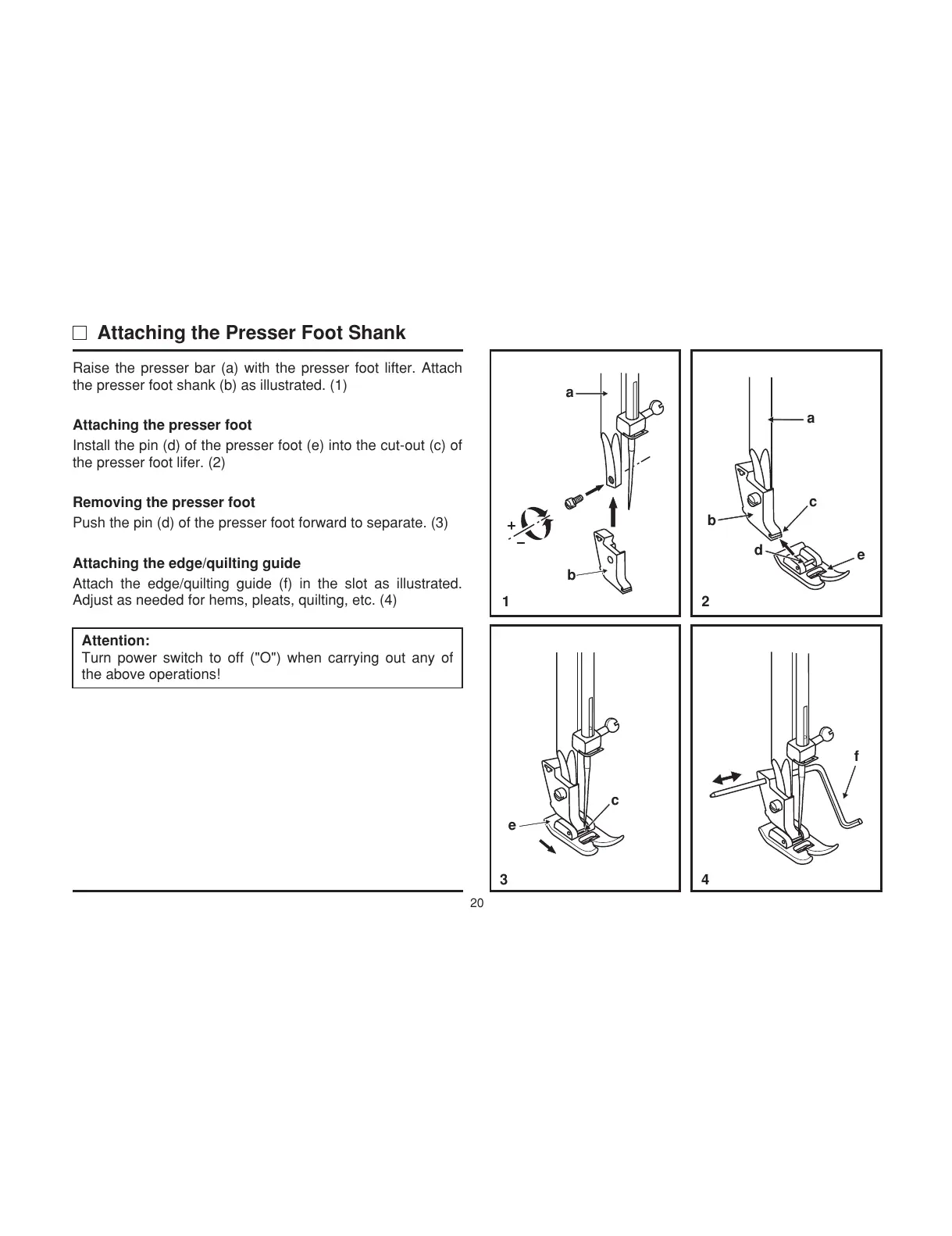

Attaching the Presser Foot Shank
20
1
3
2
Raise the presser bar (a) with the presser foot lifter. Attach
the presser foot shank (b) as illustrated. (1)
Install the pin (d) of the presser foot (e) into the cut-out (c) of
the presser foot lifer. (2)
Push the pin (d) of the presser foot forward to separate. (3)
Attach the edge/quilting guide (f) in the slot as illustrated.
Adjust as needed for hems, pleats, quilting, etc. (4)
Turn power switch to off ("O") when carrying out any of
the above operations!
Attaching the presser foot
Removing the presser foot
Attaching the edge/quilting guide
Attention:
4
e
c
f
a
b
a
c
d
e
b
