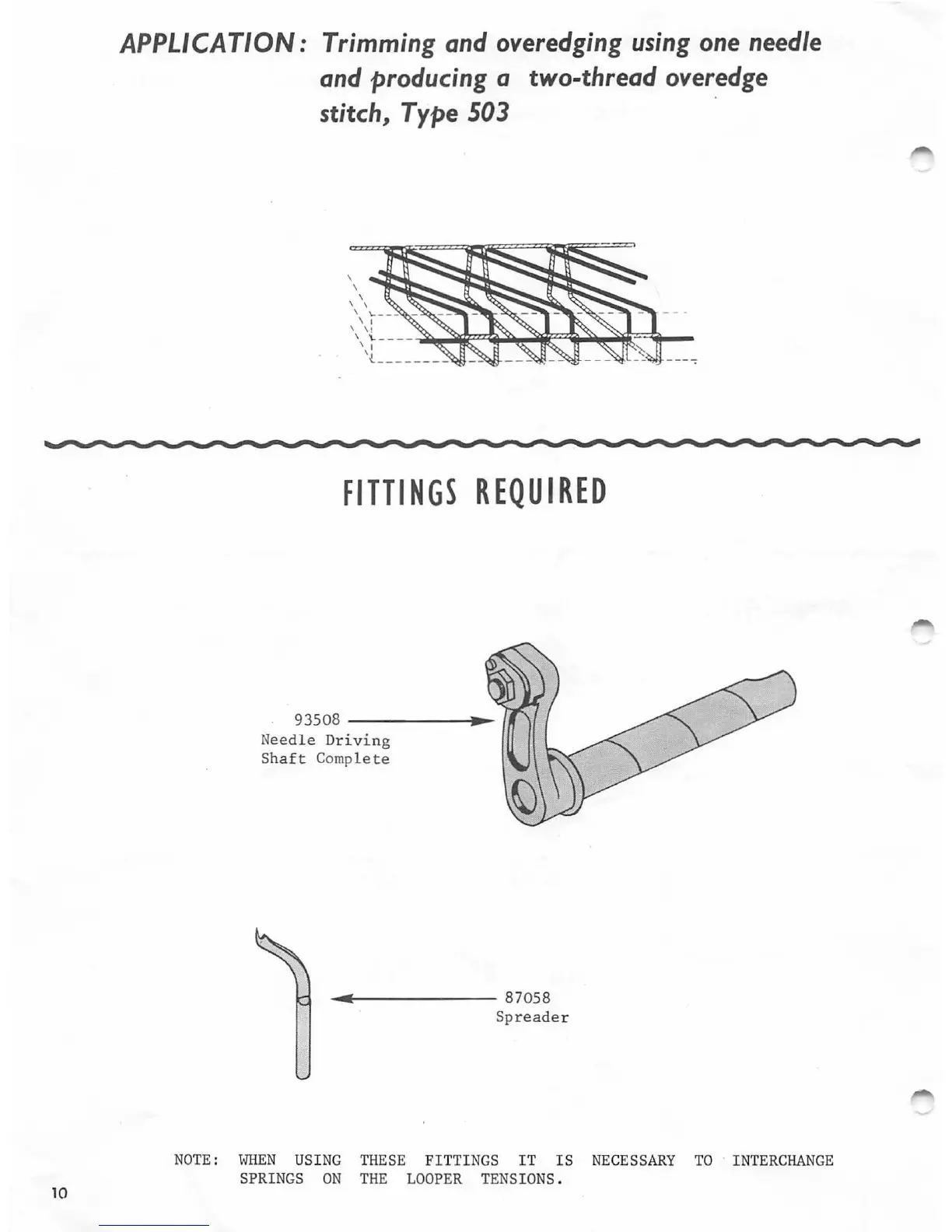

Singer 460K20 - Page 10

10
APPLICATION: Trimming and overedging using one needle
and producing a two-thread overedge
stitch, Type 503
FITTINGS REQUIRED
9350 8 -----.-
N eedle Driving
Shaft Co mplete
~------ 87058
Spreader
NOTE : WHEN USING THESE FITTINGS IT IS NECESSARY TO INTERCHANGE
SPRINGS ON THE LOOPER TENSIONS .
From the library of: Superior Sewing Machine & Supply LLC
