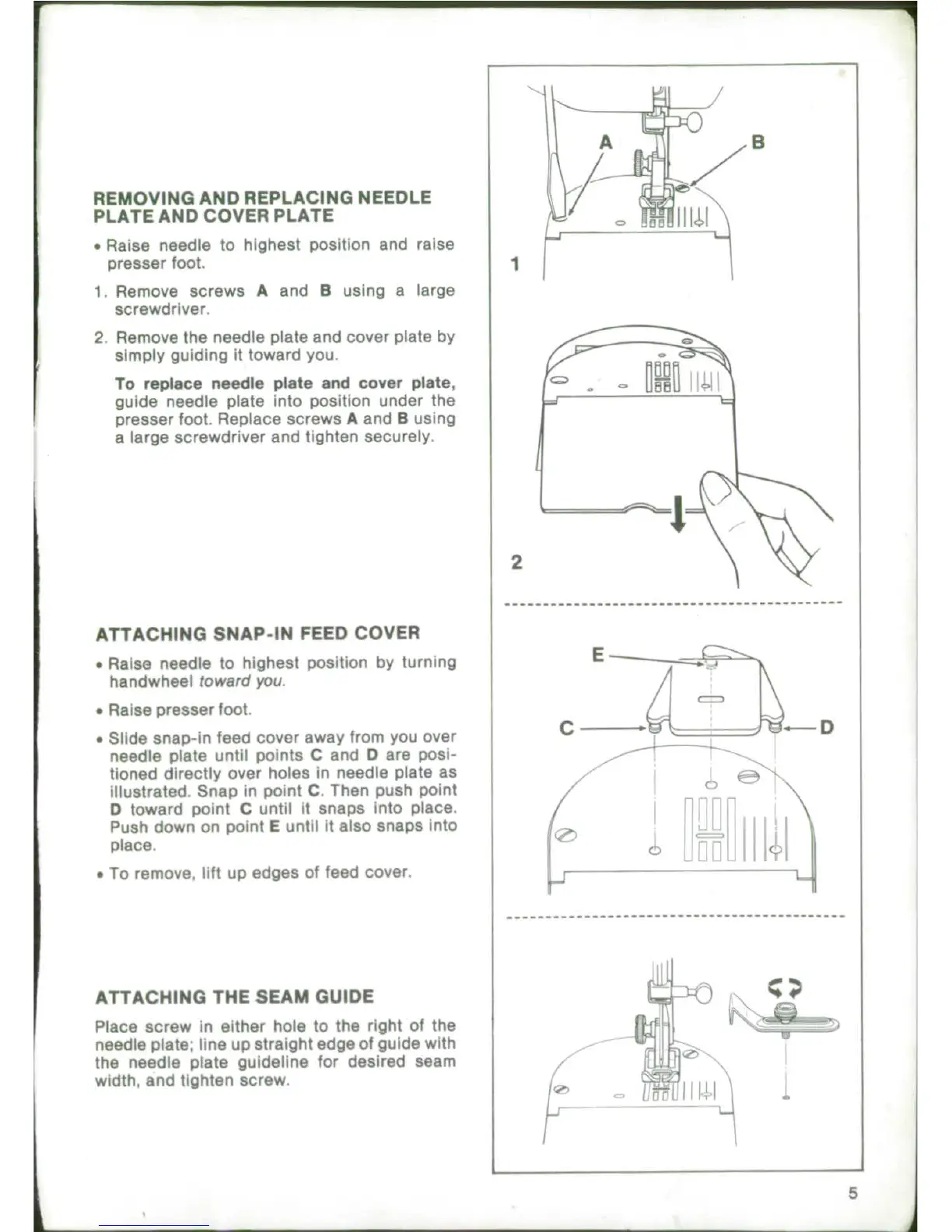

REMOVING
AND REPLACING
NEEDLE
PLATE
AND COVER PLATE
N
11W
Raise
needle
to highest
position
and raise
presser
foot.
1
1 Remove
screws
A and
B using
a large
screwdriver.
2. Remove the needle plate
and cover plate by
simply guiding
it toward
you.
To replace needle plate
and cover plate, C
guide needle
plate into position
under the
presser
foot.
Replace
screws
A
and B
using
a large
screwdriver
and
tighten
securely.
2
. . ...
........ - -
- - - - - - - -
-
ATTACHING
SNAP-IN
FEED
COVER
* Raise
needle to highest position
by turning
E _
handwheel toward you.
*
Raise
presser
foot.
* Slide
snap-in
feed
cover
away
from you
over
C
D
needle plate until points C
and 0 are posi-
tioned directly over
holes in needle plate as
illustrated. Snap in point C.
Then push point
D
toward
point C until
it snaps
into
place.
Push down
on point E until it also snaps into
place.
* To remove, lift
up edges of feed cover.
ATTACHING THE
SEAM GUIDE
f>J C)
Place screw
in either hole to the right of the ff . D
_
needle
plate;
line up
straight
edge of
guide with
the needle
plate guideline
for
desired seam
'C
width,
and
tighten
screw.
