Singer 591D200A - Threading the Bobbin Case; Replacing the Bobbin Case

SLOT NEAR TOP
Fig. 11
DRAWTHREAD
UP AND INTO
DELIVERYEYE
Fig. 12
PULL THREAD
INTO SLOT
DRAW THREAD
DOWN AND
UNDER SPRING
REPLACE BOBBIN CASE
ON STUD /
Fig. 13
PRESS BOBBIN CASE
FIRMLY INTO PLACE

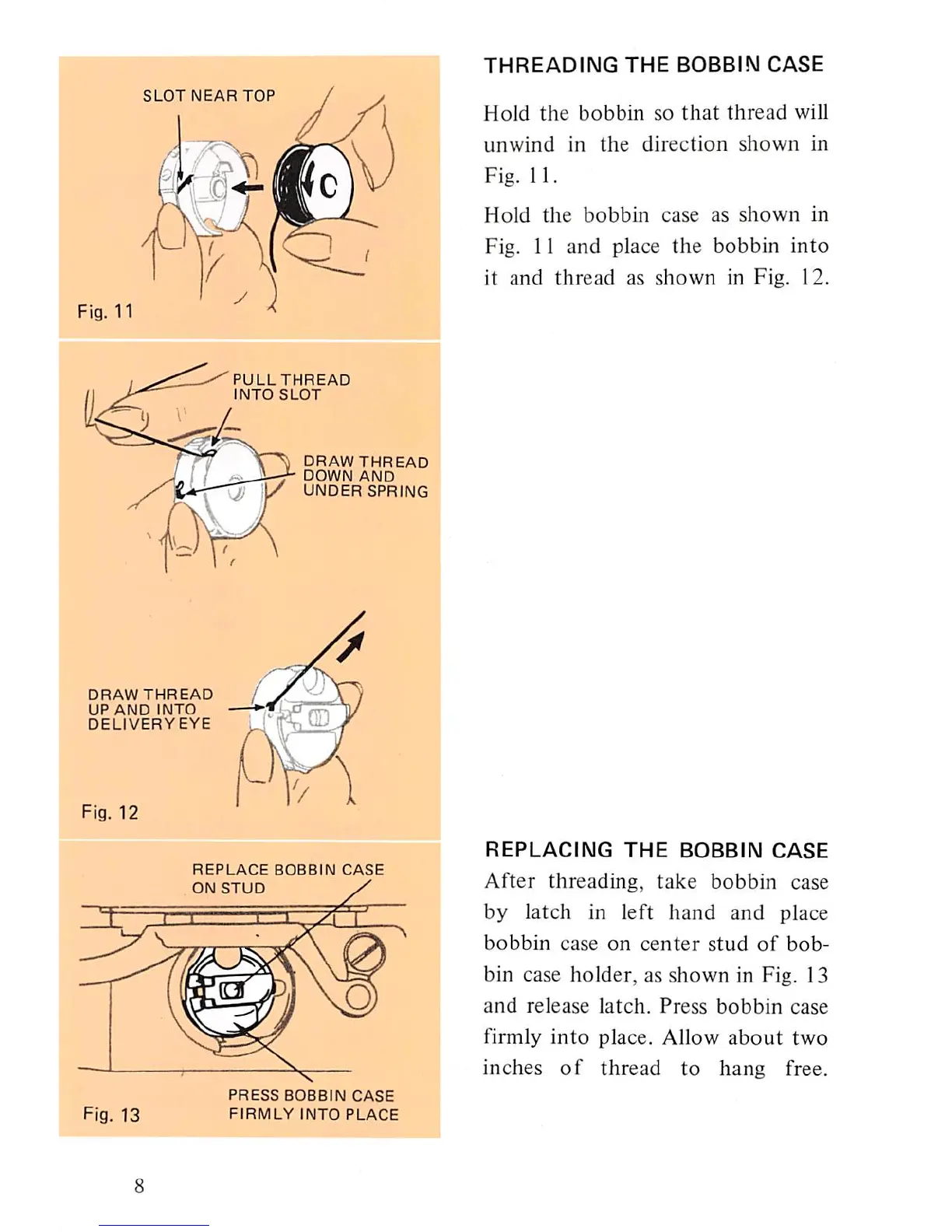

THREADING THE BOBBIN CASE
Hold the bobbin so that thread will
unwind in the direction shown in
Fig. 11.
Hold the bobbin case as shown in
Fig. 11 and place the bobbin into
it and thread as shown in Fig. 12.
REPLACING THE BOBBIN CASE
After threading, take bobbin case
by latch in left hand and place
bobbin case on center stud of bob
bin case holder, as shown in Fig. 13
and release latch. Press bobbin case
firmly into place. Allow about two
inches of thread to hang free.
