Drive Belt Replacement (continued):

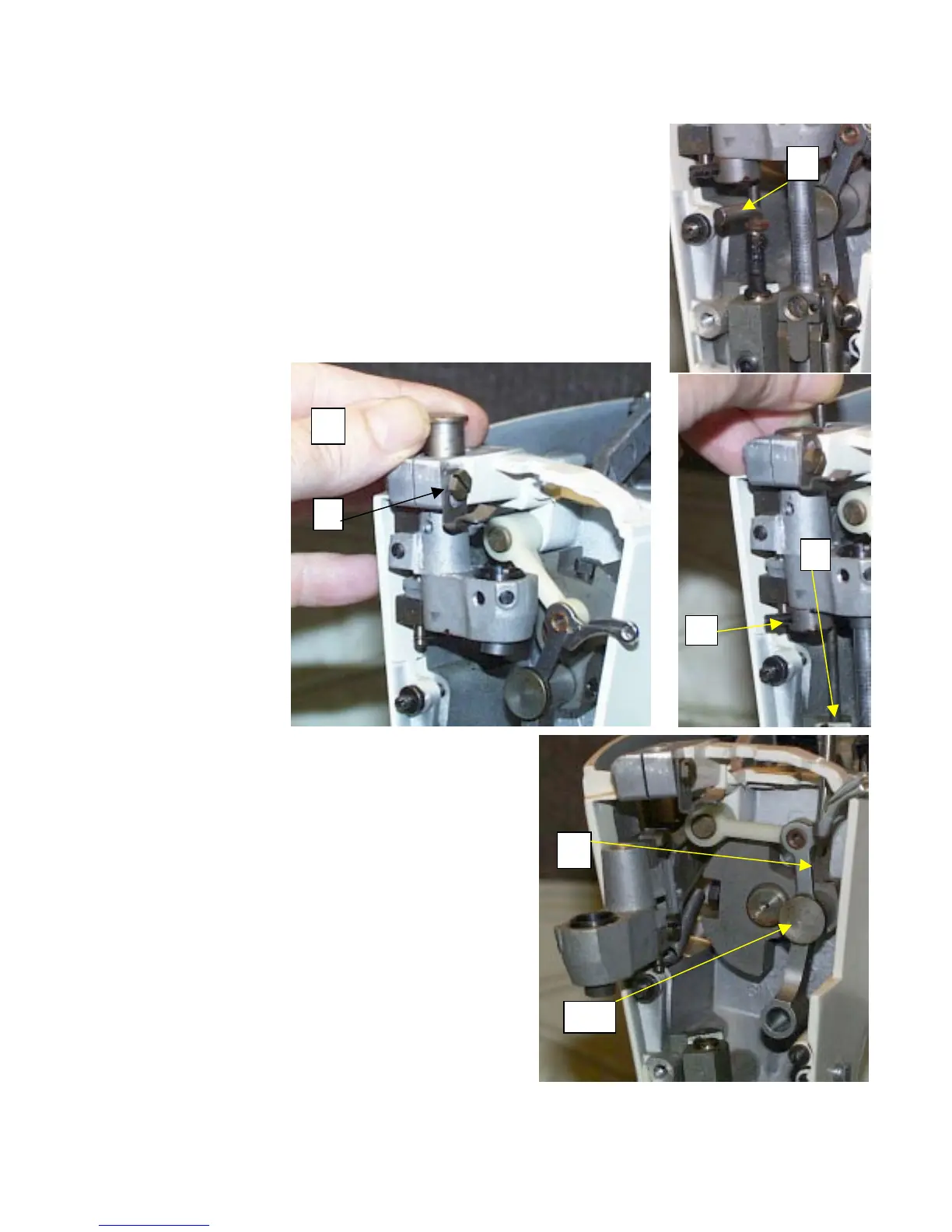

7. Now the pressure dial unit is removed, remove the pressure bar
regulating extension pin. (fig 5)
8. Before removing the tension releasing pin, pay attention to its
location, then pull it straight upward to remove. (fig 6)
9. Next, loosen screw (a) and then loosen screw (b) in figure 6. The
screw in figure 6 will require a 5/64ths Allen wrench. Remove the
needle bar eccentric pin by working it upward. (fig 7) You may find
these parts a little difficult to remove it they are oil stained, and
gummed up. Use a little solvent or other degreaser to help assist in
this. Just make sure to not get it on any paint or plastic parts.
10. Remove the take up lever by turning the hand
wheel to position the main shaft counter weight
to this position. Insert the screw drive down
through the top and loosen the setscrew that
holds the take up lever stud in place. (fig 8)
5
7
8
stud
