Basic Service (continued)
Return to Table of Contents

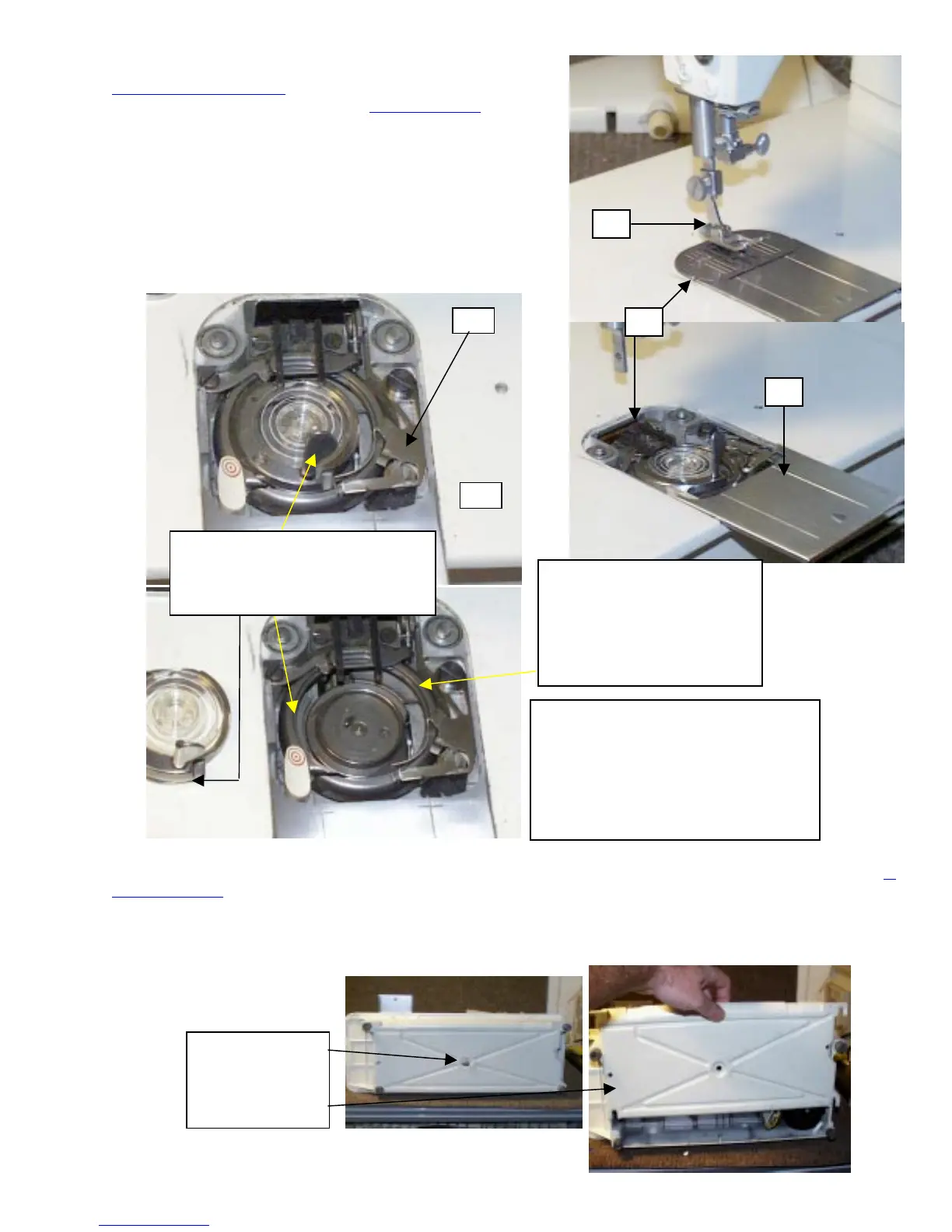

7. Remove the Presser Foot Click here for Feed Dog Section
.
8. Open the Slide Plate, but don’t attempt to remove it.
9. Remove the Needle Plate, it just lifts off.
10. Lift the Positing Bracket up, very gently, and move to the right. Don’t
lift it up very high, just enough to clear the Positioning Adjustment
Stud. Some units are equipped with a Position Locking Lever.
11. Lift the latch on the Bobbin Case, and rotate the Bobbin Case to the
right (counter clockwise) until it will lift of the Hook Railing.
12. Lay the machine on its back and remove the Bottom Bed Cover. You generally do not need to loosen the 4 rubber foot pegs,
just the center Pan screw. Remove the Pan by lifting straight up. The Pan is usually slotted around the foot pegs. Return to
Feed Dog Section if checking this out for referral.
7
8
9
otice the step down part on
the Hook, that’s what I’ll call
the rail. Put a little oil on your
rag, and wipe if lightly on the
rail. Just to give is a light trace
of oil
otice the Position Bracket. Most are
black in color; this is an after market
Bracket. Also note that this style bracket
was not the original bracket used in the
machines. This style is improved, and
work much better than the original
brackets that Singer used in the beginning.
Center Pan Screw
Remove by lifting
upward
Lift the bobbin case latch up & rotate
counter clockwise until it clears the
rail. Also inspect the Bobbin Case
groves for lint build up
To Next Page
