7
82387 No. 66
To Wind the Bobbin continued...
The end of the thread must be held by the
hand unti1 a few coils are wound and should
then be broken off. Figs. 5 and 6 show the
bobbin winder properly threaded and in posi-
tion for winding. When sufficient thread has
been wound upon the bobbin it is automati-
cally released from the stop latch (C, Fig. 6).
If the pressure of the rubber ring (B, Fig. 6)
against the hub of the balance wheel is insuf-
ficient for winding the bobbin, loosen the
adjusting screw (D, Fig. 6) and press the bob-
bin winder lightly until the rubber ring is in
contact with the hub of the balance wheel;
then tighten the screw.

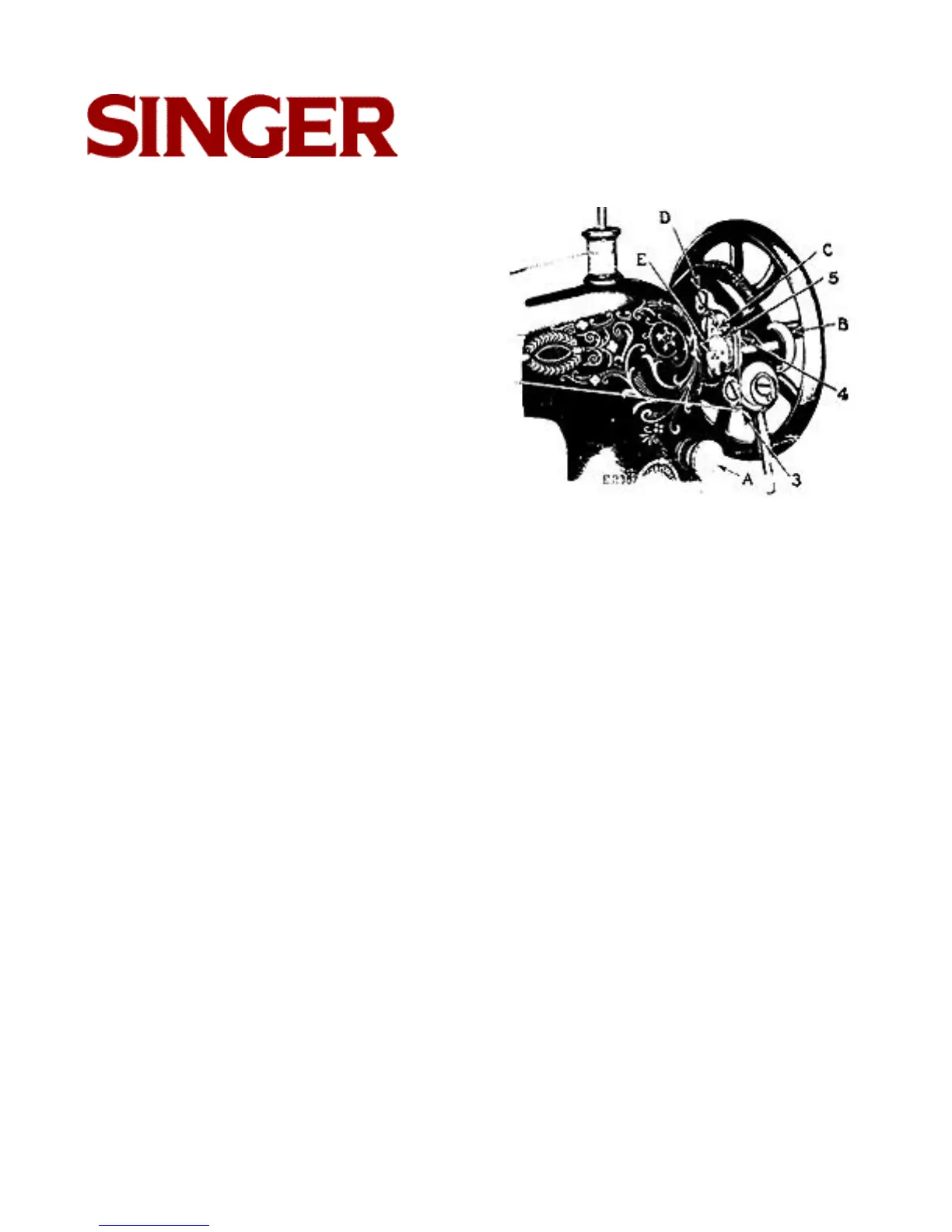

FIG. 6. WINDING THE BOBBIN
