Singer Centurion 121D - FEED REVERSING LEVER MECHANISM (Disassembly)

From the library of Superior Sewing Machine & Supply LLC - www.supsew.com

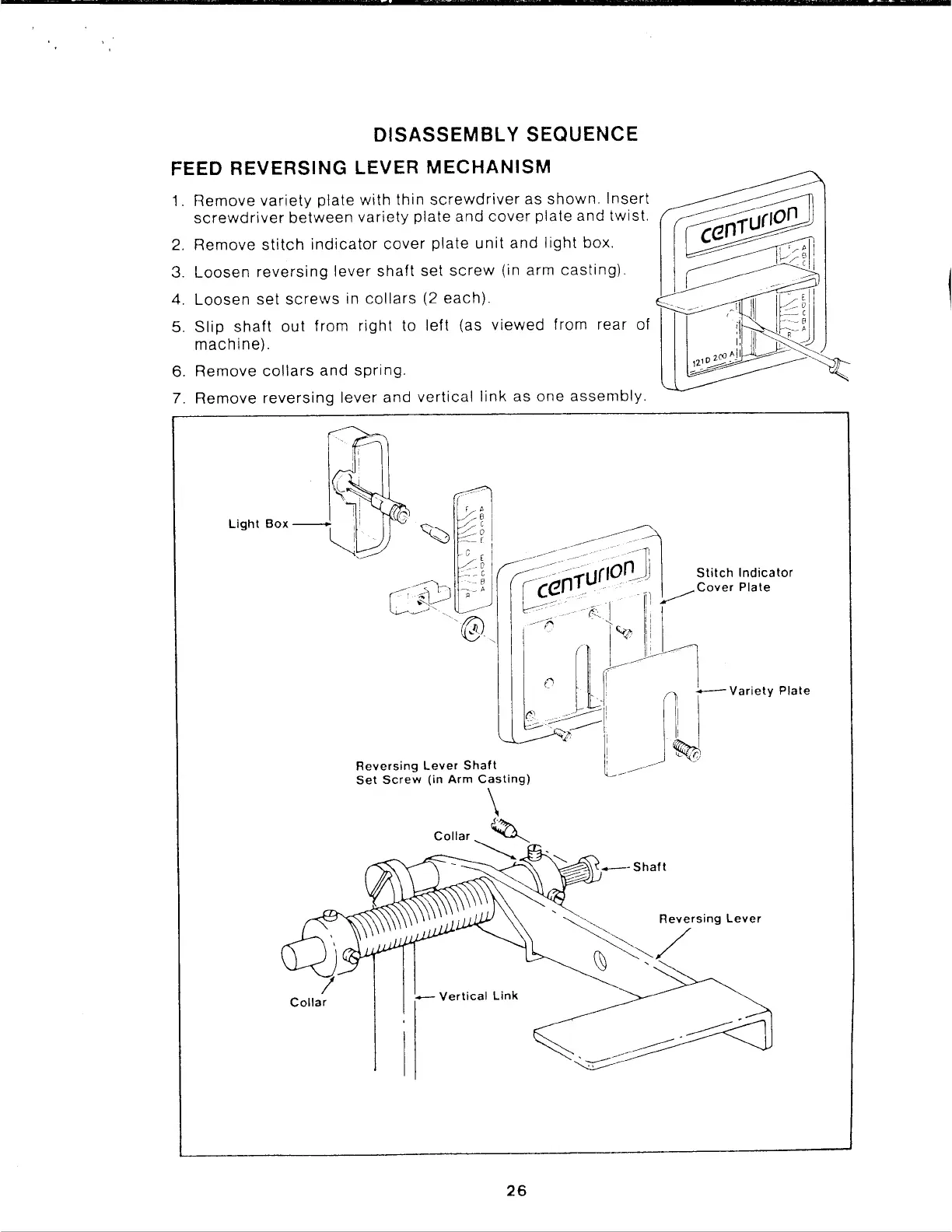

DISASSEMBLY
SEQUENCE
FEED REVERSING LEVER
MECHANISM
1.
Remove
variety
plate
with
thin
screwdriver
as shown.
Insert
screwdriver
between
variety
plate and
cover
plate and twist.
2.
Remove
stitch
indicator
cover
plate
unit
and
light
box.
3.
Loosen
reversing
lever
shaft
set
screw
(in arm
casting).
4.
Loosen
set
screws
in
collars
(2 each).
5.
Slip
shaft
out
from
right
to
left
(as
viewed
from rear of
machine).
6. Remove
collars
and
spring.
7.
Remove
reversing
lever and
vertical
link
as one
assembly.
Light
Box-
Reversing
Lever
Shaft
Set
Screw
(in Arm
Casting)
\
Collar~
,~,~
~
Collar
-
Vertical
Link
26
