Singer Centurion 121D - FEED REVERSING LEVER MECHANISM (Assembly)

From the library of Superior Sewing Machine & Supply LLC - www.supsew.com

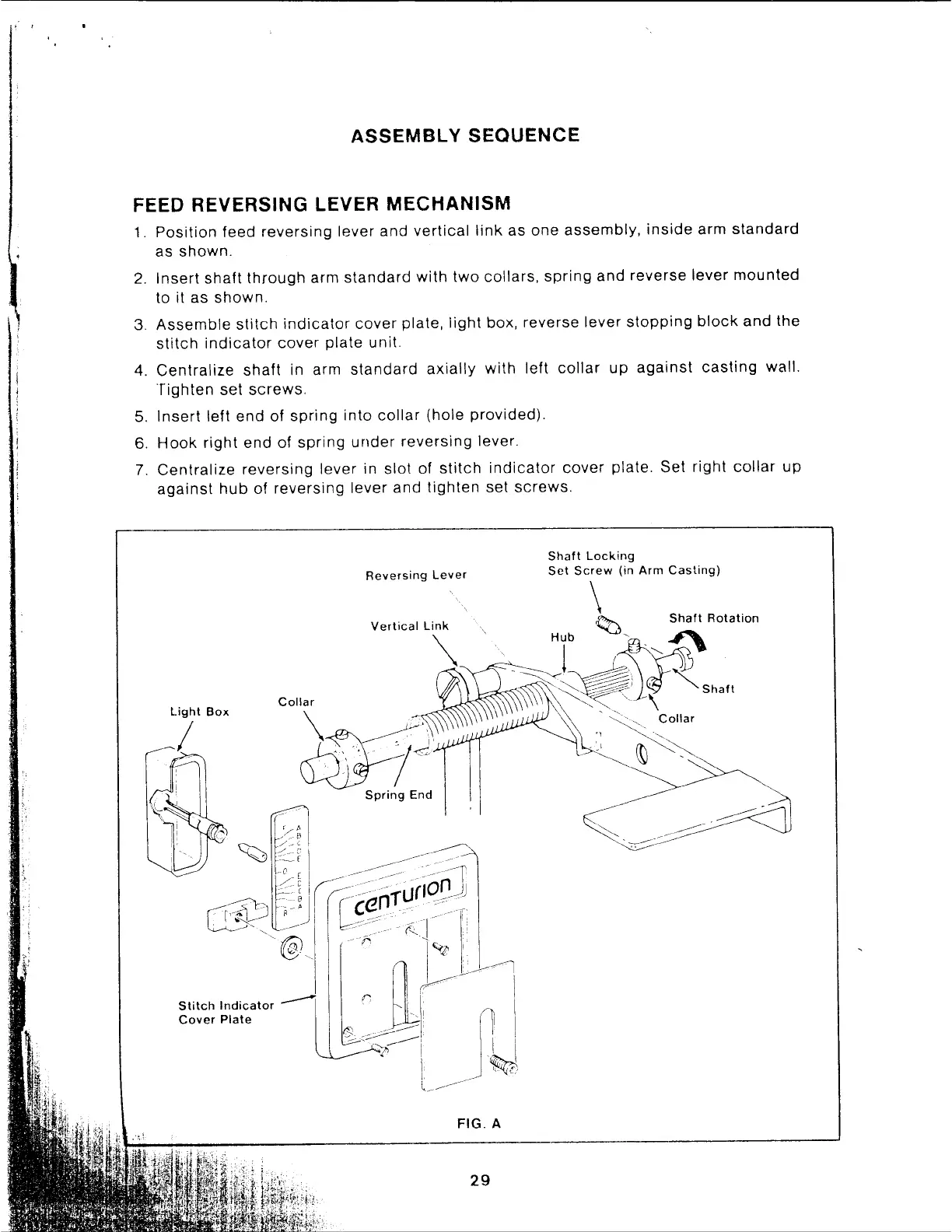

ASSEMBL V SEQUENCE
FEED REVERSING LEVER
MECHANISM
1.
Position
feed
reversing
lever and
vertical
link
as one
assembly,
inside
arm
standard
as shown.
2.
Insert
shaft
through
arm
standard
with
two
collars,
spring
and reverse lever
mounted
to it as shown.
3.
Assemble
stitch
indicator
cover
plate,
light
box, reverse lever
stopping
block
and the
stitch
indicator
cover
plate
unit.
4.
Centralize
shaft
in arm
standard
axially
with
left
collar
up
against
casting
wall.
Tighten
set
screws.
5.
Insert
left end of
spring
into
collar
(hole provided).
6.
Hook
right
end of
spring
under
reversing
lever.
7.
Centralize
reversing
lever in
slot
of
stitch
indicator
cover
plate. Set
right
collar
up
against
hub
of
reversing
lever and
tighten
set
screws.
Stitch
Indicator
__.-;
Cover
Plate
FIG.
A
29
