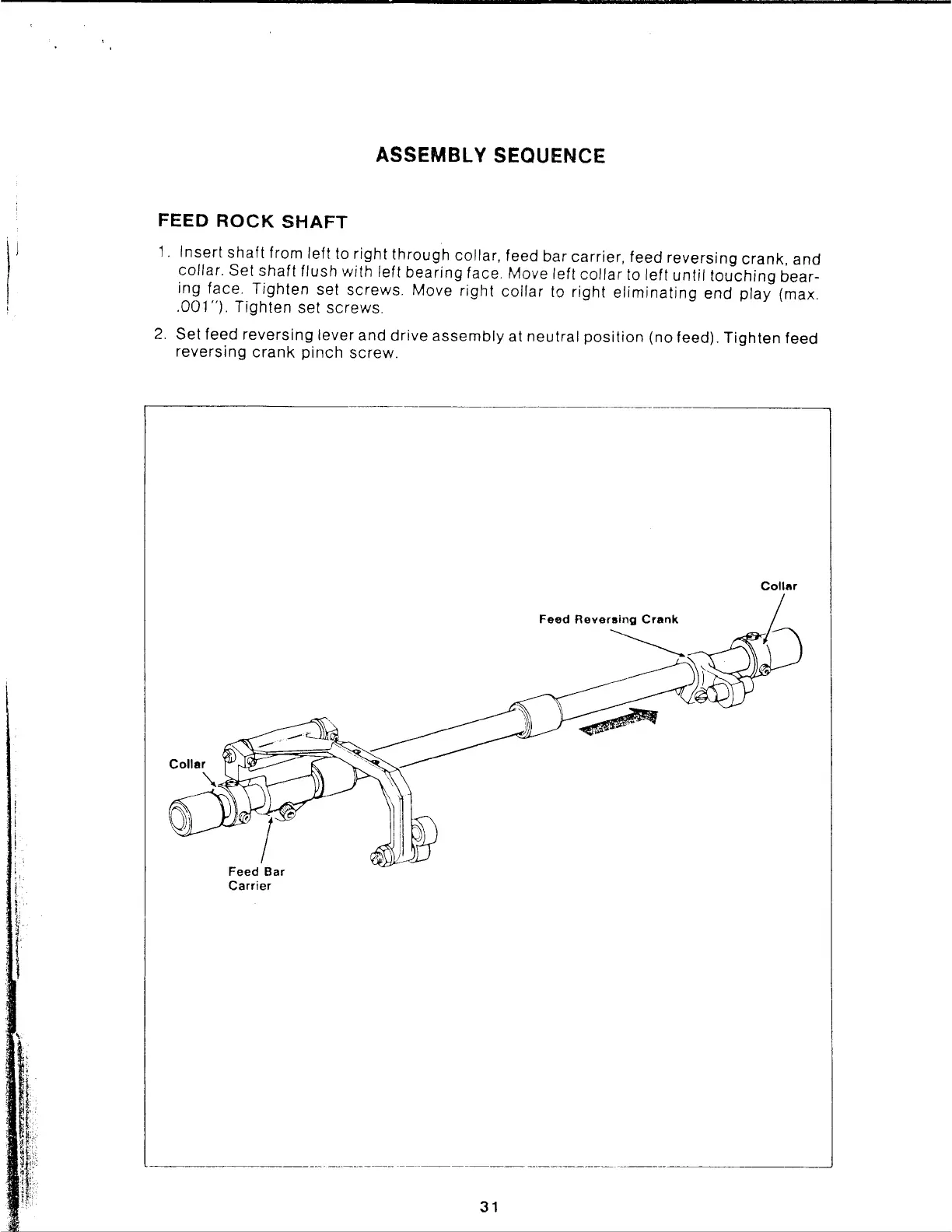

ASSEMBLY SEQUENCE
FEED
ROCK
SHAFT
1.
Insert
shaft
from left to right through collar, feed bar carrier, feed reversing crank,
and
collar. Set
shaft
flush with left bearing face. Move left
collar
to left
until
touching
bear-
ing face. Tighten set screws.
Move right
collar
to right
eliminating
end
play
(max .
. 001 "). Tighten set screws.
2.
Set feed reversing lever and
drive
assembly
at neutral
position
(no feed). Tighten feed
reversing
crank
pinch
screw.
Feed
Bar
Carrier
31
Feed
Reversing
Crank
~
-------------1
