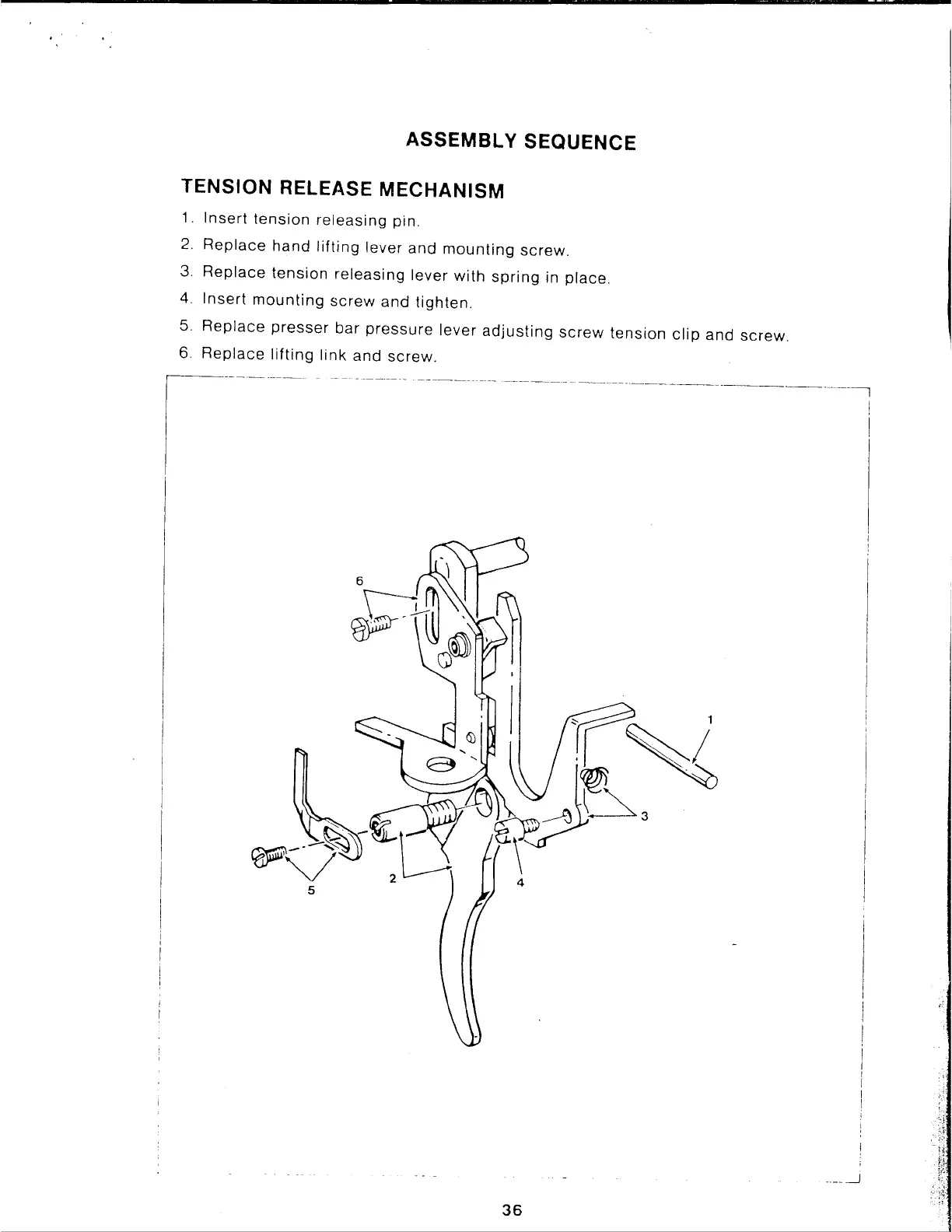

ASSEMBLY SEQUENCE
TENSION RELEASE MECHANISM
1.
Insert
tension
releasing
pin.
2.
Replace
hand
lifting
lever
and
mounting
screw.
3.
Replace
tension
releasing
lever
with
spring
in place.
4.
Insert
mounting
screw
and
tighten.
5.
Replace
presser
bar
pressure
lever
adjusting
screw
tension
clip
and
screw.
6.
Replace
lifting
link
and
screw.
----
------··--------
------------------------------------------,
