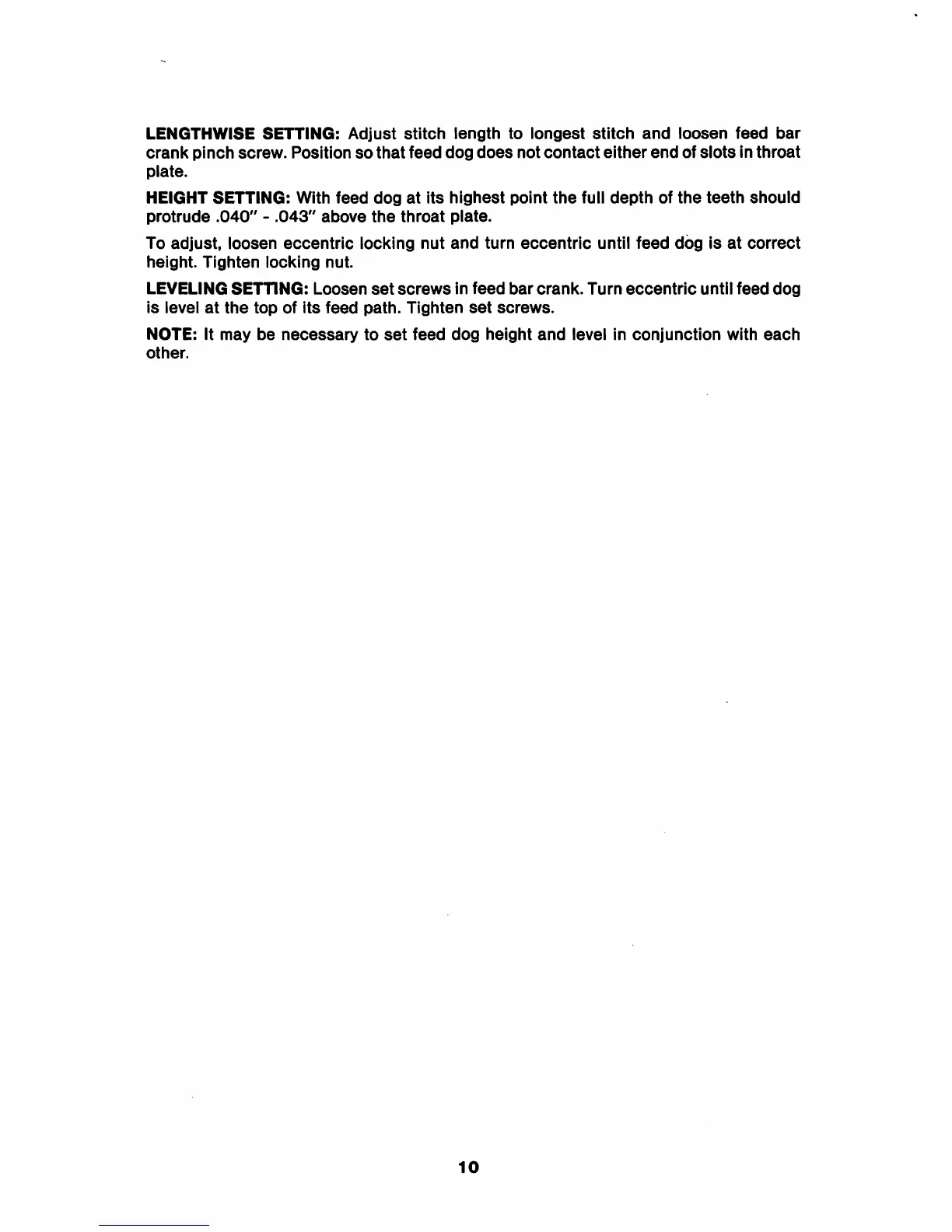

LENGTHWISE
SETTING:
Adjust
stitch
length
to
longest
stitch
and
loosen
feed
bar
crank
pinch
screw.
Position
so
that
feed
dog
does
not
contact
either
end
of
slots
In
throat
plate.
HEIGHT
SETTING:
With
feed
dog
at
Its
highest
point
the
full
depth
of
the
teeth
should
protrude
.040"
-
.043"
above
the
throat
plate.
To
adjust,
loosen
eccentric
locking
nut
and
turn
eccentric
until
feed
dog
Is
at
correct
height.
Tighten
locking
nut.
LEVELING
SETTING:
Loosen
set
screws
In
feed
bar
crank.
Turn
eccentric
until
feed
dog
Is
level
at
the
top
of
Its
feed
path.
Tighten
set
screws.
NOTE: It
may
be
necessary
to
set
feed
dog
height
and
level In
conjunction
with
each
other.
