Singer Centurion 121D200A - TENSION RELEASE ADJUSTMENT

TENSION RELEASE
The tension releasing mechanism should be adjusted so that when the presser foot Is
raised, using the knee lifter, the tension assembly opens as the presser foot approaches
maximum lift.
To adjust, loosen alien cap screw. Move cap screw and block toward front of machine to
open tension sooner, and towards rear of machine to open later. After desired adjust
ment, retlghten alien screw.

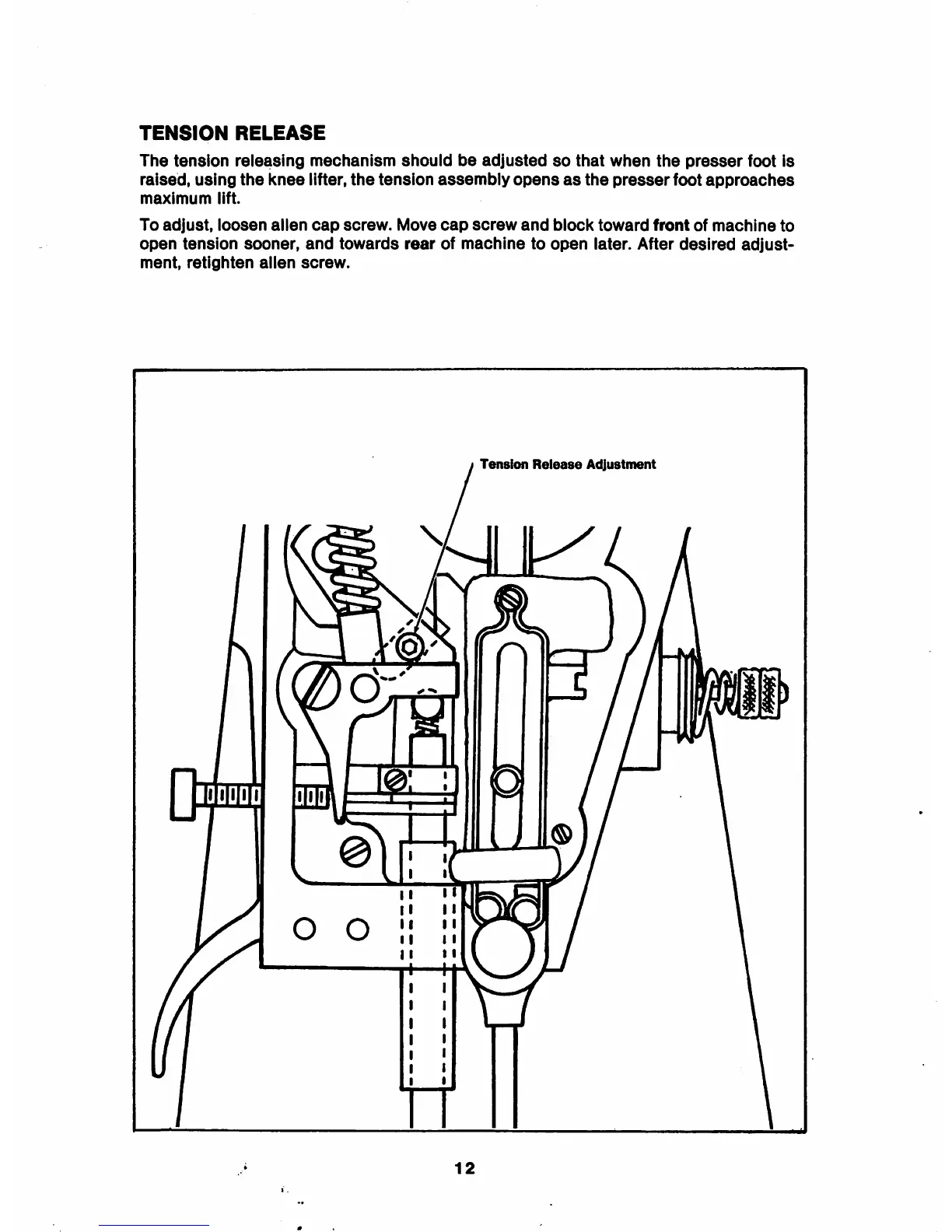

Tension Release Adjustment
3
D
1
O O
12
