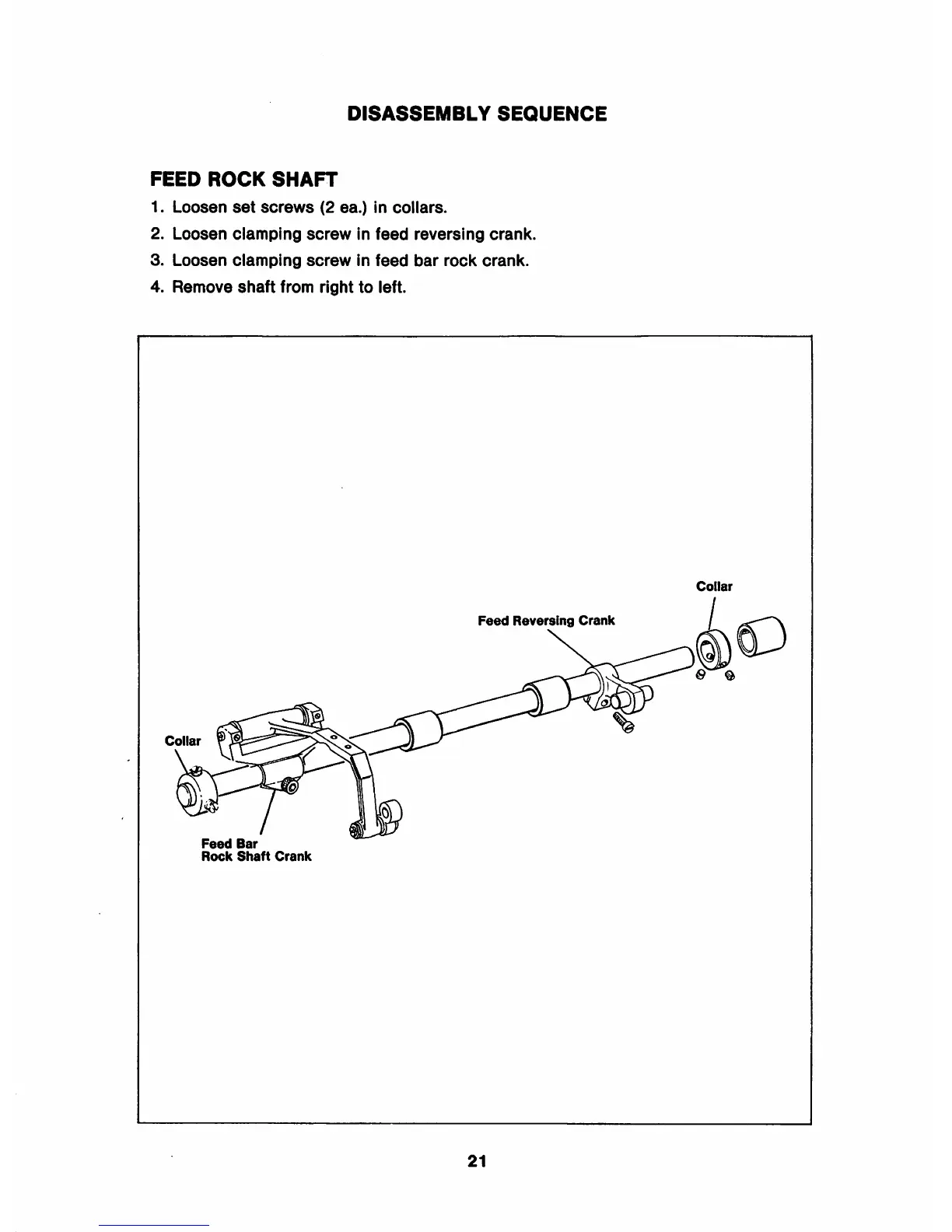

DISASSEMBLY SEQUENCE
FEED ROCK SHAFT
1. Loosen set screws (2 ea.) in collars.
2. Loosen clamping screw In feed reversing crank.
3. Loosen clamping screw In feed bar rock crank.
4. Remove shaft from right to left.
Collar
Feed Bar
Rock Shaft Crank
Feed Reversing Crank
21
Collar
