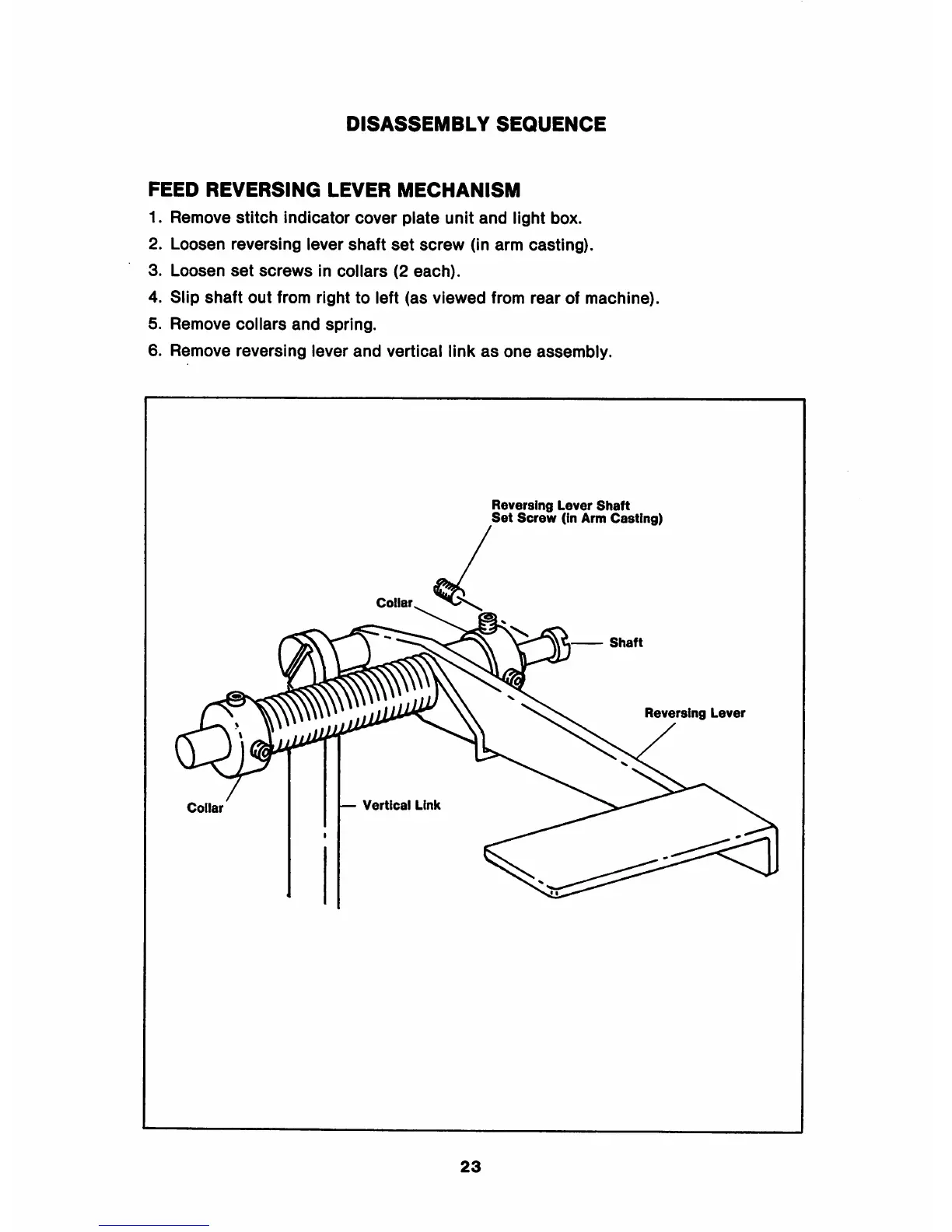

DISASSEMBLY SEQUENCE
FEED REVERSING LEVER MECHANISM
1. Remove stitch Indicator cover plate unit and light box.
2.
Loosen reversing lever shaft set screw (In arm casting).
3. Loosen set screws In collars (2 each).
4. sup shaft out from right to left (as viewed from rear of machine).
5. Remove collars and spring.
6. Remove reversing lever and vertical link as one assembly.
Coilar
Coilar
— Vertical Link
23
Reversing Lever Shaft
Set Screvr (in Arm Casting)
Shaft
Reversing Lever
