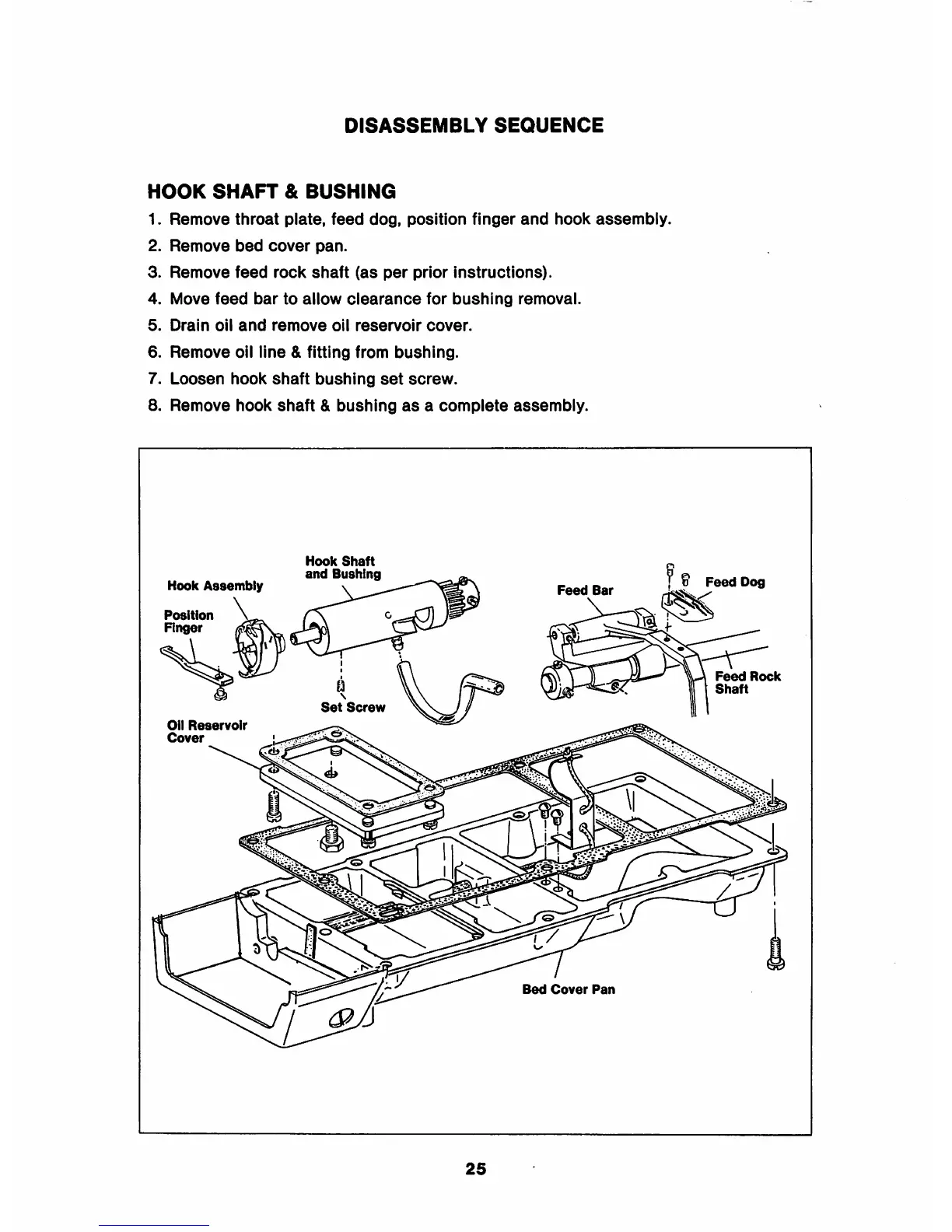

DISASSEMBLY SEQUENCE
HOOK SHAFT & BUSHING
1. Remove throat plate, feed dog. position finger and hook assembly.
2. Remove bed cover pan.
3. Remove feed rock shaft (as per prior instructions).
4. Move feed bar to ailow clearance for bushing removal.
5. Drain oii and remove oil reservoir cover.
6. Remove oil line & fitting from bushing.
7. Loosen hook shaft bushing set screw.
8. Remove hook shaft & bushing as a compiete assembly.
Hook Assembly
Position \.
Rnger
Oil Reservoir
Cover
Hook Shaft
and Bushing
\
Set Screw
Feed Bar
Bed Cover Pan
25
Feed Dog
Feed Rock
Shaft
