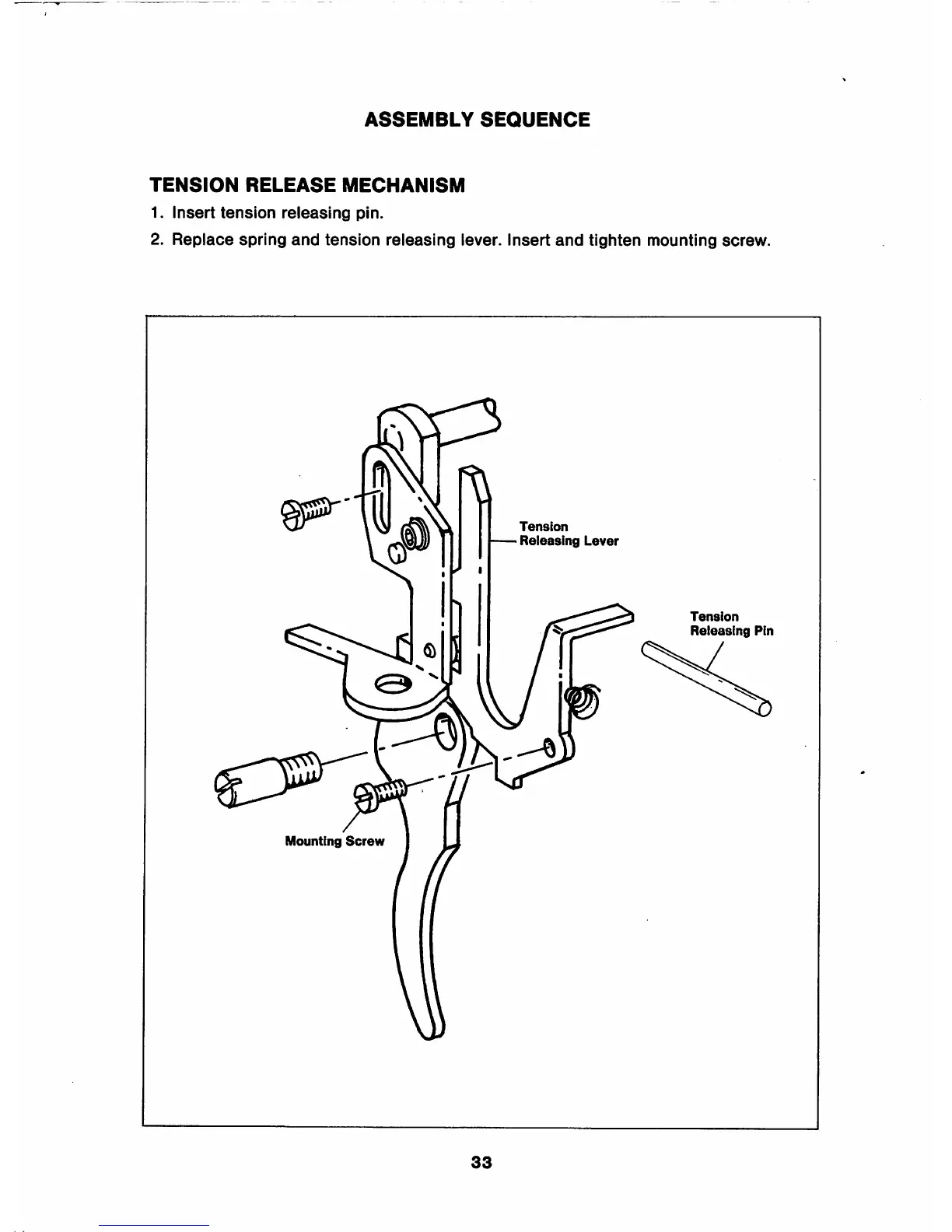

ASSEMBLY
SEQUENCE
TENSION
RELEASE
MECHANISM
1.
Insert
tension
releasing
pin.
2.
Replace
spring
and
tension
releasing
lever.
Insert
and
tighten
mounting
screw.
Mounting
Screw
33
Tension
Releasing
Lever
Tension
Releasing
Pin
