ASSEMBLY SEQUENCE

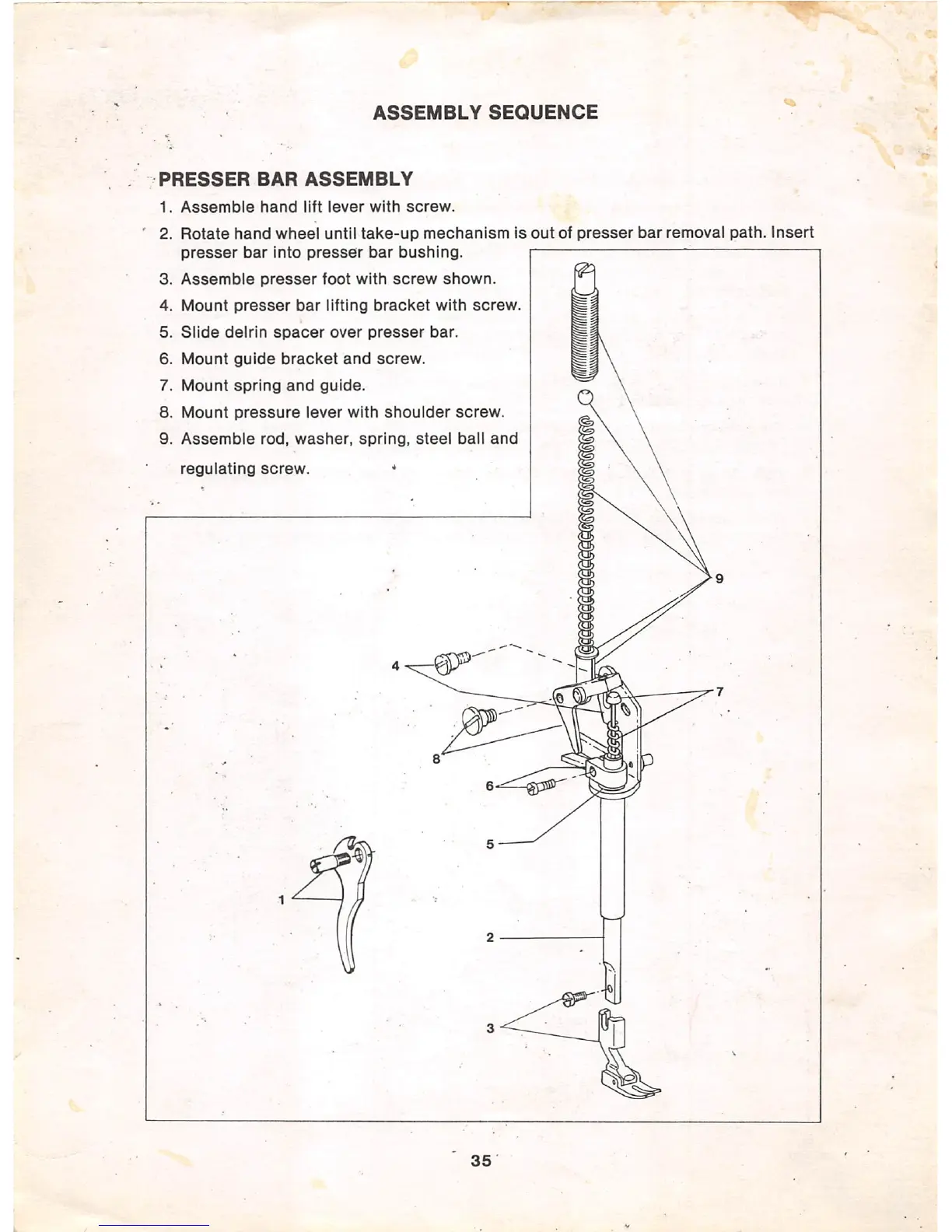

PRESSER BAR ASSEMBLY
1. Assemble hand lift lever with screw.
2. Rotate hand wheel until take-up mechanism is out of presser bar removal path. Insert
presser bar Into presser bar bushing.
3. Assemble presser foot with screw shown.
4. Mount presser bar lifting bracket with screw.
5. Slide delrin spacer over presser bar.
6. Mount guide bracket and screw.
7. Mount spring and guide.
8. Mount pressure lever with shoulder screw.
9. Assemble rod, washer, spring, steel ball and
regulating screw. ^
