Singer class 251 - Feed Timing and Dog Height Setting; To Time the Feed; To Set the Feed Dog at the Correct Height; Sewing Hook Removal

From the library of Superior Sewing Machine & Supply LLC - www.supsew.com

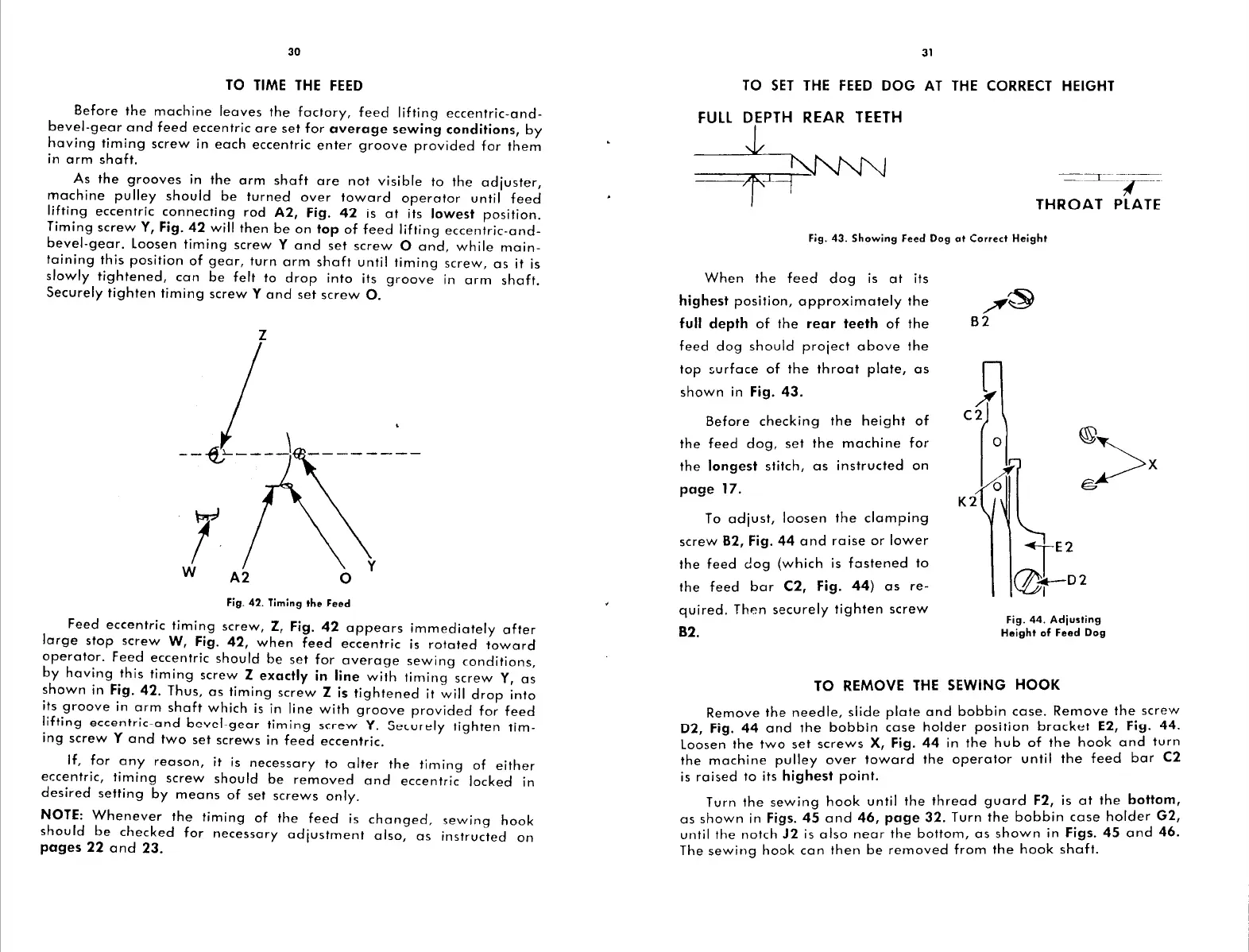

30
TO
TIME
THE
FEED
Before
the
machine
leaves
the
factory,
feed
lifting
eccentric-and-
bevel-gear
and
feed
eccentric
are
set
for
average
sewing conditions,
by
having
timing
screw
in
each
eccentric
enter
groove
provided
for
them
in
arm
shaft.
As
the
grooves
in
the
arm
shaft
are
not
visible
to
the
adjuster,
machine
pulley
should
be
turned
over
toward
operator
until
feed
lifting
eccentric
connecting
rod
A2, Fig.
42
is
at
its
lowest
position.
Timing
screw
Y,
Fig.
42
will
then
be
on
top
of
feed
lifting
eccentric-and-
bevel-gear.
Loosen
timing
screw
Y
and
set
screw
O
and,
while
main-
taining
this
position
of
gear,
turn
arm
shaft
until
timing
screw,
as
it is
slowly
tightened,
can
be
felt
to
drop
into
its
groove
in
arm
shaft.
Securely
tighten
timing
screw
Y
and
set
screw
0.
z
T
W
A2
0
Fig. 42. Timing the Feed
Feed
eccentric
timing
screw,
Z,
Fig.
42
appears
immediately
after
large
stop
screw
W, Fig.
42,
when
feed
eccentric
is
rotated
toward
operator.
Feed
eccentric
should
be
set
for
average
sewing
conditions,
by
having
this
timing
screw
Z
exactly
in
line
with
timing
screw
Y,
as
shown
in
Fig. 42.
Thus,
as
timing
screw
Z
is
tightened
it will
drop
into
its
groove
in
arm
shaft
which
is
in
line
with
groove
provided
for
feed
lifting
eccentric-and-bevel-gear
timing
sc:rew
Y.
Securely
tighten
tim-
ing
screw
Y
and
two
set
screws
in
feed
eccentric.
If,
for
any
reason,
it
is
necessary
to
alter
the
timing
of
either
eccentric,
timing
screw
should
be
removed
and
eccentric
locked
in
desired
setting
by
means
of
set
screws
only.
NOTE:
Whenever
the
timing
of
the
feed
is
changed,
sewing
hook
should
be
checked
for
necessary
adjustment
also,
as
instructed
on
pages 22
and
23.
31
TO
SET
THE
FEED
DOG
AT
THE
CORRECT
HEIGHT
FULL
DEPTH
REAR
TEETH
-==~~;,------
THROA T
PLATE
Fig.
43.
Showing
Feed Dog
at
Correct
Height
When
the
feed
dog
is
at
its
highest
position,
approximately
the
full depth
of
the
rear
teeth
of
the
feed
dog
should
project
above
the
top
zurface
of
the
throat
plate,
as
shown
in
Fig.
43.
Before
checking
the
height
of
the
feed
dog,
set
the
machine
for
the
longest
stitch,
as
instructed
on
page
17.
To
adjust,
loosen
the
clamping
screw
82, Fig.
44
and
raise
or
lower
the
feed
dog
(which
is
fastened
to
the
feed
bar
C2, Fig.
44)
as
re-
quired.
Then
securely
tighten
screw
82.
Fig.
44.
Adjusting
Height
of Feed Dog
TO
REMOVE
THE
SEWING HOOK
Remove
the
needle,
slide
plate
and
bobbin
case.
Remove
the
screw
D2, Fig.
44
and
the
bobbin
case
holder
position
bracket
E2, Fig. 44.
Loosen
the
two
set
screws
X,
Fig.
44
in
the
hub
of
the
hook
and
turn
the
machine
pulley
over
toward
the
operator
until
the
feed
bar
C2
is
raised
to its
highest
point.
Turn
the
sewing
hook
until
the
thread
guard
F2,
is
at
the
bottom,
as
shown
in
Figs.
45
and
46,
page
32.
Turn
the
bobbin
case
holder
G2,
until
the
notch
J2
is
also
near
the
bottom,
as
shown
in
Figs. 45
and
46.
The
sewing
hook
can
then
be
removed
from
the
hook
shaft.
