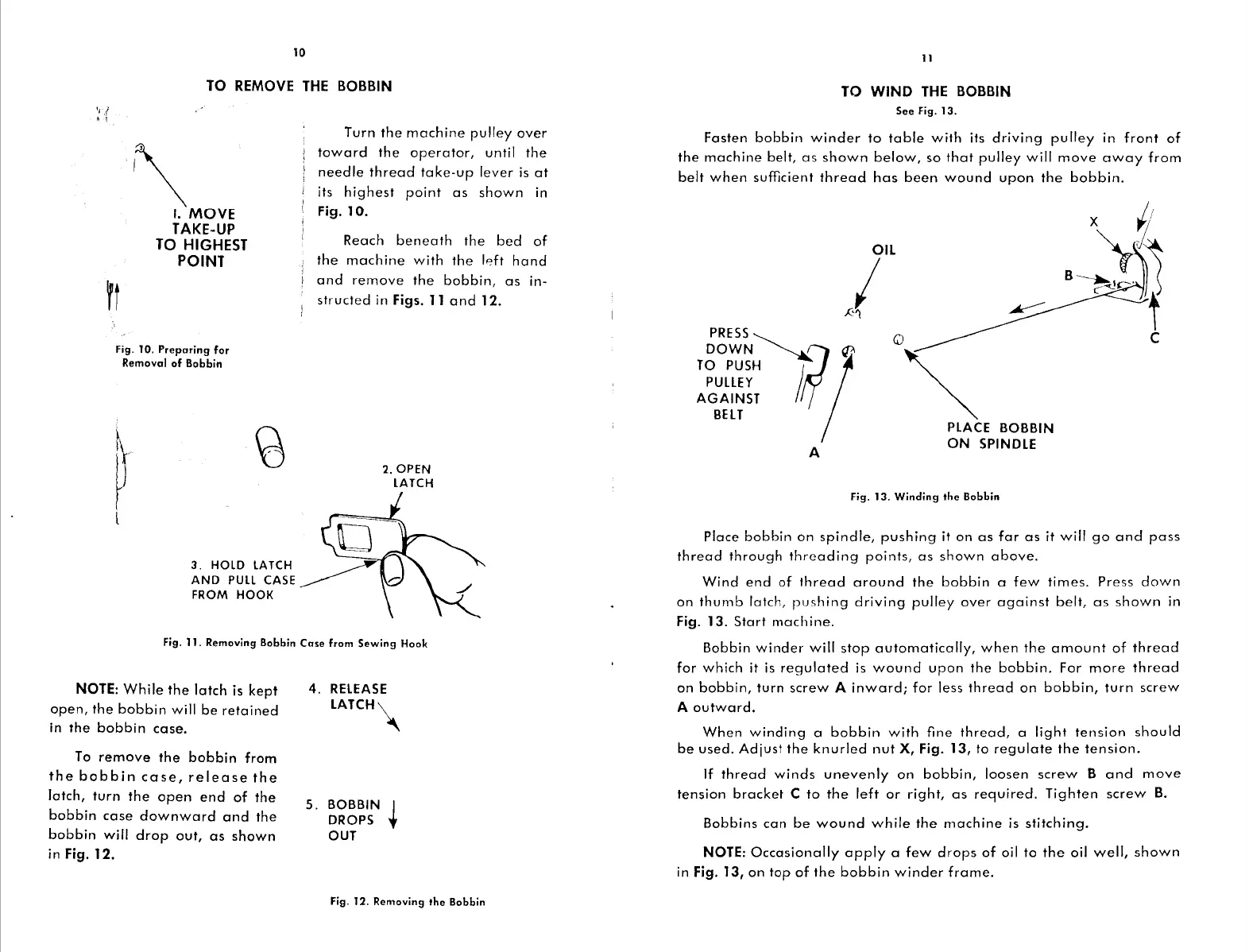

TO REMOVE THE BOBBIN
I~
1. MOVE
TAKE-UP
TO HIGHEST
POINT
Fig. 10. Preparing for
Removal of Bobbin
3. HOLD LATCH
AND PULL CASE
FROM HOOK
Turn the machine pulley over
toward the operator, until the
1
needle thread take-up lever is at
its highest point as shown in
Fig. 10.
Reach beneath the bed of
the machine with the ldt hand
and remove the bobbin, as in-
structed in Figs.11 and 12.
2. OPEN
LATCH
Fig. 11. Removing Bobbin Case from Sewing Hook
NOTE: While the latch is kept
open, the bobbin will be retained
in the bobbin case.
To remove the bobbin from
the bobbin case, release the
latch, turn the open end of the
bobbin case downward and the
bobbin will drop out, as shown
inFig.12.
4. RELEASE
LATCH\
5. BOBBIN i
DROPS l
OUT
Fig. 12. Removing the Bobbin
11
TO WIND THE BOBBIN
See Fig. 13.
Fasten bobbin winder to table with its driving pulley in front of
the machine belt, as shown below, so that pulley will move away from
belt when sufficient thread has been wound upon the bobbin.
PLACE BOBBIN
ON SPINDLE
Fig. 13. Winding the Bobbin
Place bobbin on spindle, pushing it on as far as it will go and pass
thread through threading points, as shown above.
Wind end of thread around the bobbin a few times. Press down
on thumb latch, pushing driving pulley over against belt, as shown in
Fig. 13. Start machine.
Bobbin winder will stop automatically, when the amount of thread
for which it is regulated is wound upon the bobbin. For more thread
on bobbin, turn screw A inward; for less thread on bobbin, turn screw
A outward.
When winding a bobbin with fine thread, a light tension should
be used. Adjust the knurled nut X, Fig. 13, to regulate the tension.
If thread winds unevenly on bobbin, loosen screw B and move
tension bracket C to the left or right, as required. Tighten screw B.
Bobbins can be wound while the machine is stitching.
NOTE: Occasionally apply a few drops of oil to the oil well, shown
in Fig. 13, on top of the bobbin winder frame.
