Singer Class 269w - Page 12

Ref. Part
No. No.
1 239210
2 239203
3
239202
4 68721
5
202(819)
6 239205
7 239204
8
68723
9
239201
10 350132(819)
ll 239207
12
239209
13
239206
14 141575(803)
15
201711(803)
16
350605(869)
17 239208
18 68729
19
239248
20 201526{805)
21
350602{819)
22
239473
23 691(819)
24
239250
25
239262
26 239501
27
350645(805)
28
239474
29
239249
12

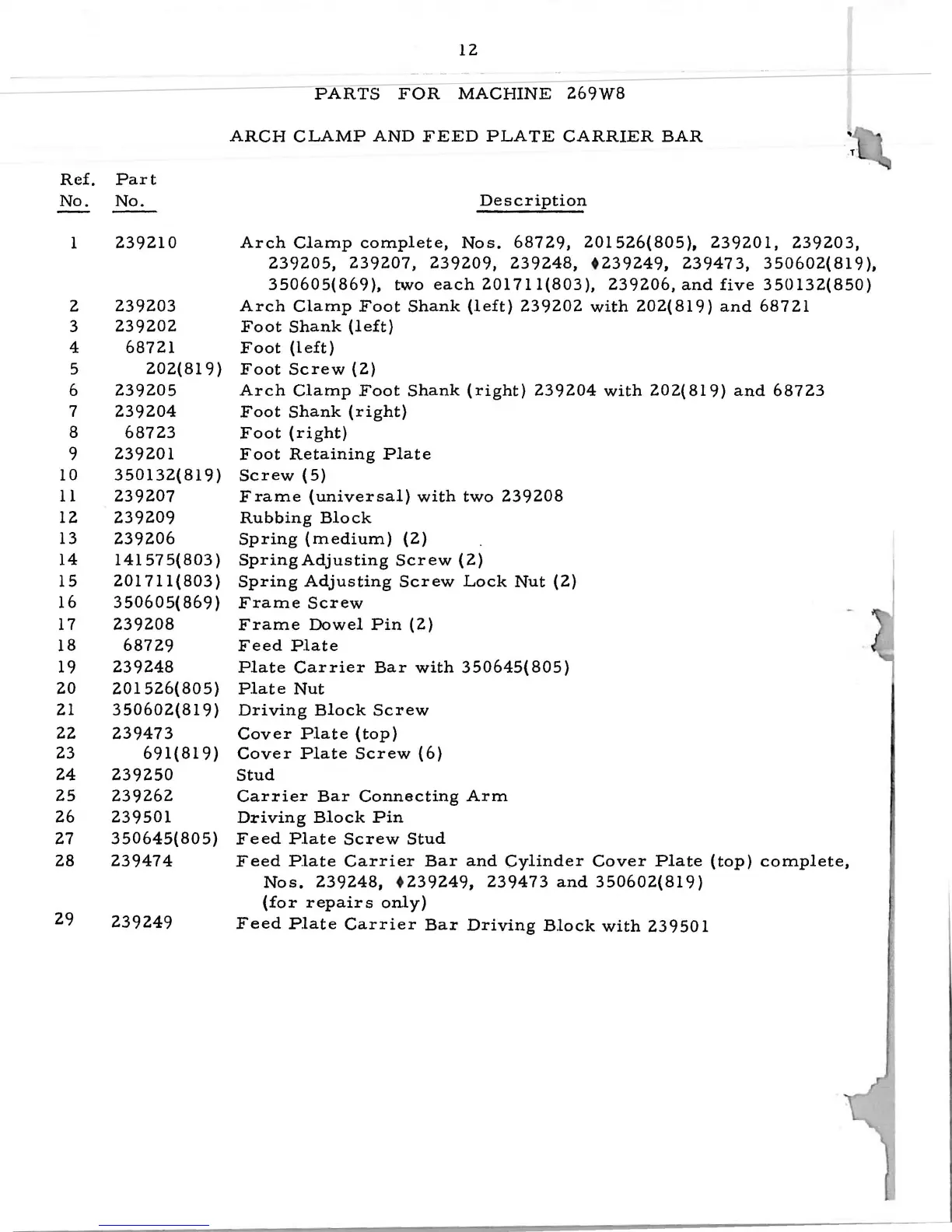

PARTS FOR MACHINE 269W8
ARCH CLAMP AND FEED PLATE CARRIER BAR
Description
Arch Clamp complete, Nos. 68729, 201526(805), 239201, 239203,
239205, 239207' 239209, 239248, +239249, 23947 3, 350602( 819 ),
350605(869), two each 201711(803), 239206, and five 350132(850)
Arch Clamp Foot Shank (left) 239202 with 202( 819) and 68721
Foot Shank (left)
Foot (left)
Foot Screw (2)
Arch Clamp Foot Shank (right) 239204 with 202( 819) and 68723
Foot Shank (right)
Foot (right)
Foot Retaining Plate
Screw (5)
Frame {universal) with two 239208
Rubbing Block
Spring (medium) (2)
SpringAdjusting Screw (2)
Spring Adjusting Screw Lock Nut (2)
Frame Screw
Frame Dowel Pin (2)
Feed Plate
Plate
Carrier Bar with 350645{ 805)
Plate Nut
Driving Block Screw
Cover Plate (top)
Cover Plate Screw (6)
Stud
Carrier Bar Connecting Arm
Driving Block Pin
Feed Plate Screw Stud
Feed Plate Carrier Bar and Cylinder Cover Plate (top) complete,
Nos. 239248, +239249, 239473 and 350602(819)
(for repairs only)
Feed Plate Carrier Bar Driving Block with 239501
