Singer Class 269w - Page 16

Ref.
Part
No. No.
1
239254
2 239253
3
239261
4
239260
5
202603
6
350132(819)
7
239284
8
201472(803)
9
200333(830)
10
239283
11
239550
12 239282
13 239145
14 24050
15
226(809)
16
12424
17
19448
18
1 035(803)
19
239551
20
239552
21
1636(805)
22
13275
23
39653
24
201749(805)
25 239280
26
239279
27
222583
28
23421
29 200394(803)
30 908(803)
31
20197
32
896(803)
33 125044
34 201083(803)
35
213484
35
213484
36
200689(803)
37 350447(804)
38
239257
39 239251
40
239252
41
239146
42
239553
+ 239258
16

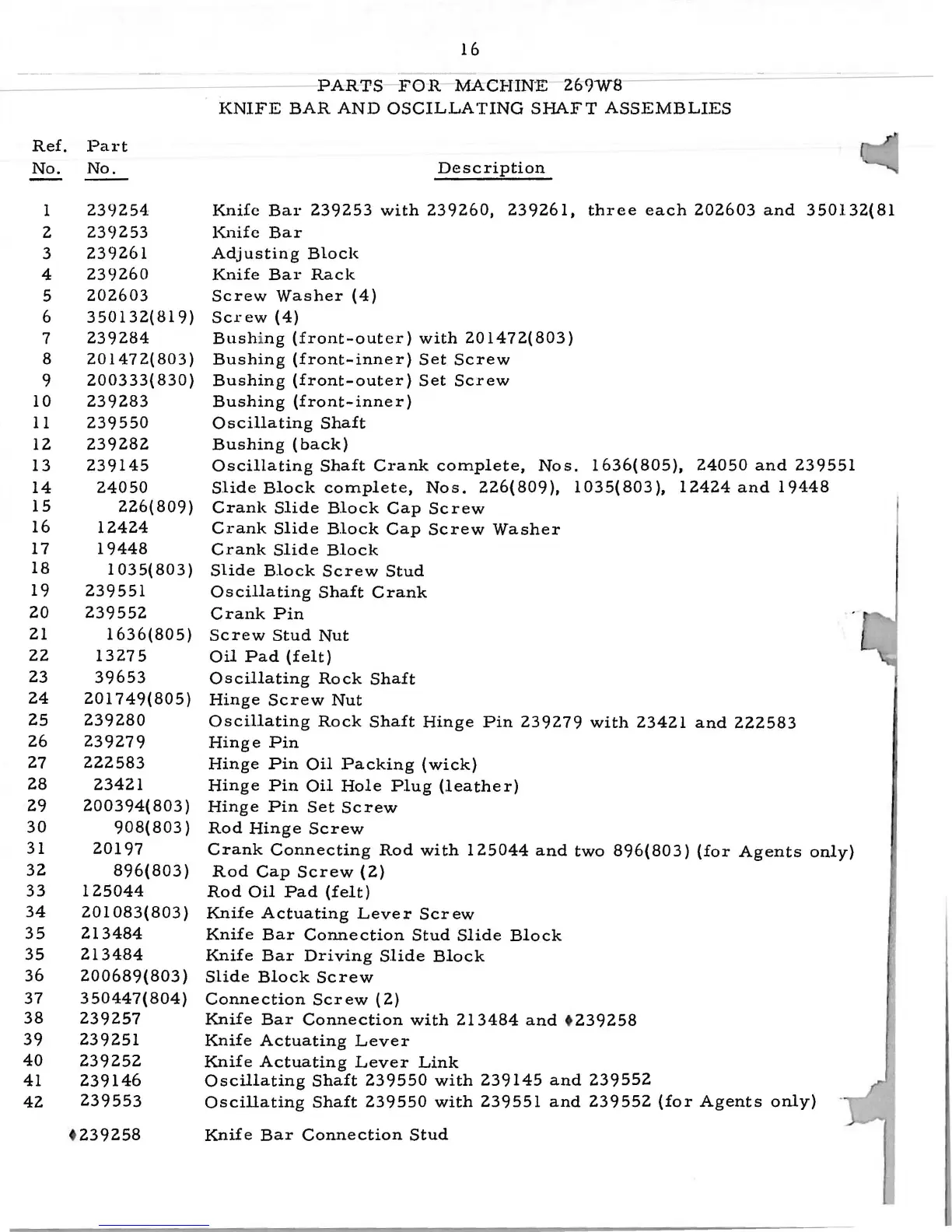

PARTS FOR MACHIN -E 26<JW8
KNIFE BAR AND OSCILLATING SHAFT ASSEMBLIES
Description
Knife Bar 239253 with 239260, 239261, three each 202603 and 350132(81
Knife Bar
Adjusting Block
Knife Bar Rack
Screw Washer (4)
Screw (4)
Bush i ng (front-outer) with 201472(803)
Bushing (front-inner) Set Screw
Bushing (front-outer) Set Screw
Bushing (front-inner)
Oscillating Shaft
Bushing (back)
Oscillating Shaft Crank complete, Nos. 1636(805), 24050 and 239551
Slide Block complete, Nos. 226(809), 1035(803), 12424 and 19448
Crank Slide Block Cap Screw
Crank Slide Block Cap Screw Washer
Crank Slide Block
Slide Block Screw Stud
Oscillating Shaft Crank
Crank
Pin
Screw Stud Nut
Oil Pad (felt)
Oscillating Rock Shaft
Hinge Screw Nut
Oscillating Rock Shaft Hinge Pin 239279 with 23421 and 222583
Hinge Pin
Hinge Pin Oil Packing (wick)
Hinge Pin Oil Hole Plug (leather)
Hinge Pin Set Screw
Rod Hinge Screw
Crank Connecting Rod with 125044 and two 896(803) (for Agents only)
Rod Cap Screw (2)
Rod Oil Pad (felt)
Knife Actuating Lever Screw
Knife Bar Connection Stud Slide Block
Knife Bar Driving Slide Block
Slide Block Screw
Connection Screw ( 2)
Knife Bar Connection with 213484 and + 239258
Knife Actuating Lever
Knife Actuating Lever Link
Oscillating Shaft 239550 with 239145 and 239552
Oscillating Shaft 239550 with 239551 and 239552 (for Agents only)
Knife Bar Connection Stud
