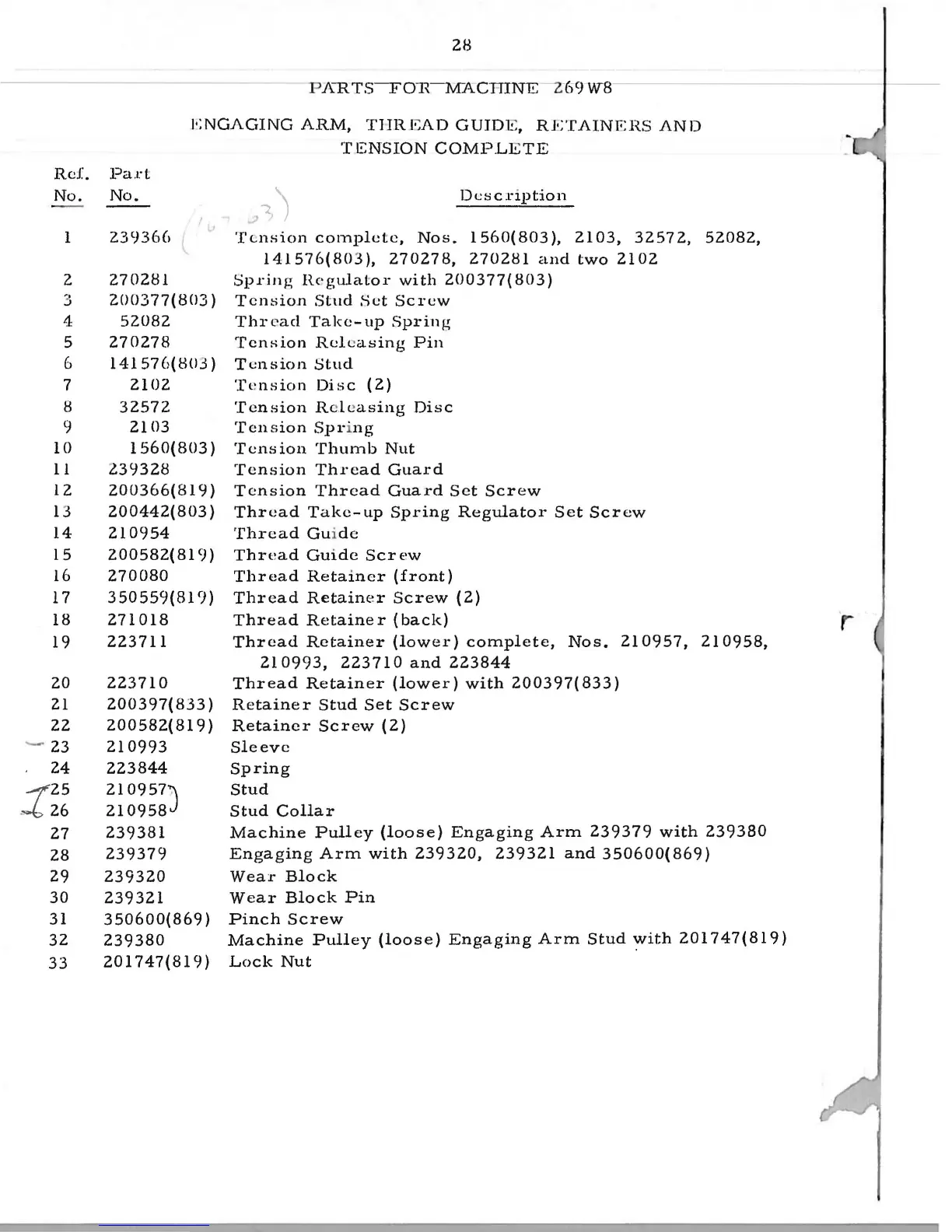

Singer Class 269w - Page 28

Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
- 23
24
:1 25
- 26
27
28
29
30
31
32
33
28
A""R TS~01\~ACTIINE 69 W8
I•:NGAGING ARM, TJIRI•,AD GUIDE, R E TAINERS AND
T E:NSION COMPL E TE
: Pa.t·t
No.
23l)36(1 1
270281
200377(803)
52082
270278
14157(>(80 3 )
2102
32572
2103
1560(803)
239328
200366(819)
200442(803)
210954
200582(819)
270080
350559(81 en
271018
223711
223710
200397(833)
200582(819)
210993
223844
210957)
210958
239381
239379
239320
239321
350600(869)
239380
201747{819)
~ ')
Desc .t ·iption
T e nsion complete, Nos. 1560(803), 2103, 32572, 52082,
141576(803), 270278, 270281 and two 2102
Spring Rc·g•~la l: or with 200377(803)
Tension Stud Set Screw
Thr<. ' ad Take-up Spring
Tension Rel e asing Pin
Tension Stud
T e nsion Disc (2)
Tension R el e asing Disc
Tension Spr i ng
Tension Thumb Nut
Tension Thread Gua.t·d
Tension Thread Guard Set Screw
Thread Take-up Spring Regulator Set Screw
Thread Gu i de
Thr e ad Guide Scr f:.'W
Thread Retainer (front)
Thread Retainer Screw (2)
Thread Retainer (back)
Thread Retainer (lower) complete, Nos. 210957, 210958,
210993 , 223710 and 223844
Thread Retainer (lower) with 200397( 833)
Retainer Stud Set Screw
Retainer Screw (2)
Sleeve
Spring
Stud
Stud Collar
Machine Pulley (loose) Engaging Arm 239379 with 239380
Engaging Arm with 239320, 239321 and 350600{869)
Wear Block
Wear Block Pin
Pinch Screw
Machine Pulley (loose) Engaging Arm Stud ~ith 201747(819)
Lock Nut
