Singer Class 269w - Page 30

Ref.
No.
1
2
3
4
5
6
7
8
9
10
ll
12
13
14
15
16
17
30

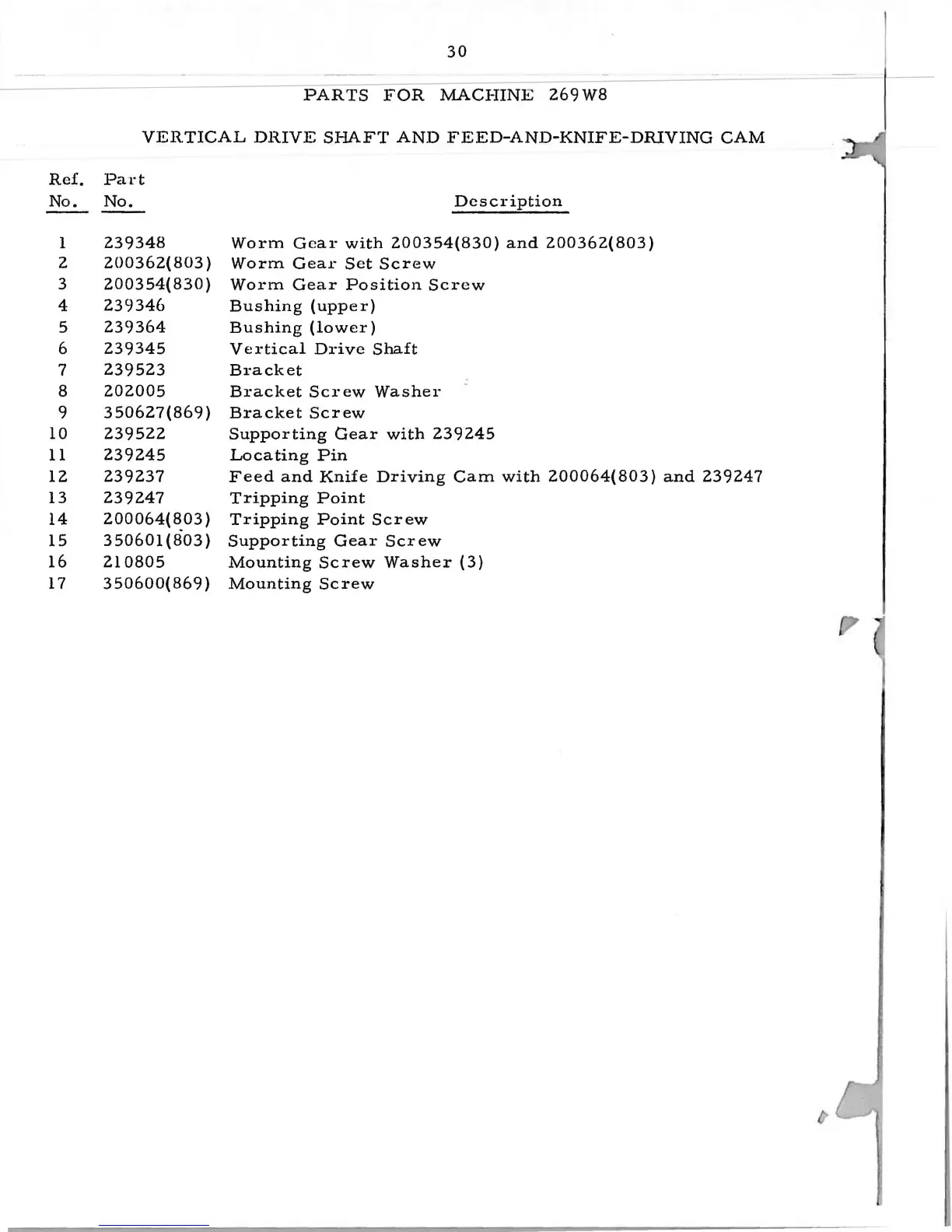

PARTS FOR MACI-IINE 269 W8
VERTICAL DRIVE SHAFT AND FEED-AND-KNIFE-DRIVING CAM
Part
No.
239348
200362(803)
200354( 830)
239346
239364
239345
239523
202005
350627(869)
239522
239245
239237
239247
200064(803)
35060l(Bo3)
210805
350600( 869)
Description
Worm Gear with 200354(830) and 200362(803)
Worm Gea1· Set Screw
Worm Gear Position Screw
Bushing (upper)
Bushing (lower)
Vertical Drive Shaft
Bracket
Bracket Screw Washer
Bracket Screw
Supporting Gear with 239245
Locating Pin
Feed and Knife Driving Cam with 200064(803) and 239247
Tripping Point
Tripping Point Screw
Supporting Gear Screw
Mounting Screw Washer (3)
Mounting Screw
