Singer Class 269w - Page 32

Ref.
P a J·t
No. No.
1
228800
2
167292
3
462( 830)
4
228798
5
200084(850)
6 268122
7
5989
8
418{804)
9
2455
10 10141
11
1562(819)
12 228792
13
350238(804)
14
239158
15 228793
16
. 200436(803)
GJ?
228795
18 249716
19
201256(803)
e7
239157
21
228796
22 50628(809)
23
225459
24
225458
25
50356(804)
26
1620(819)
27 202478
28
200056(805)
29
225444
30 200299(819)
31 228794
32 239558
32

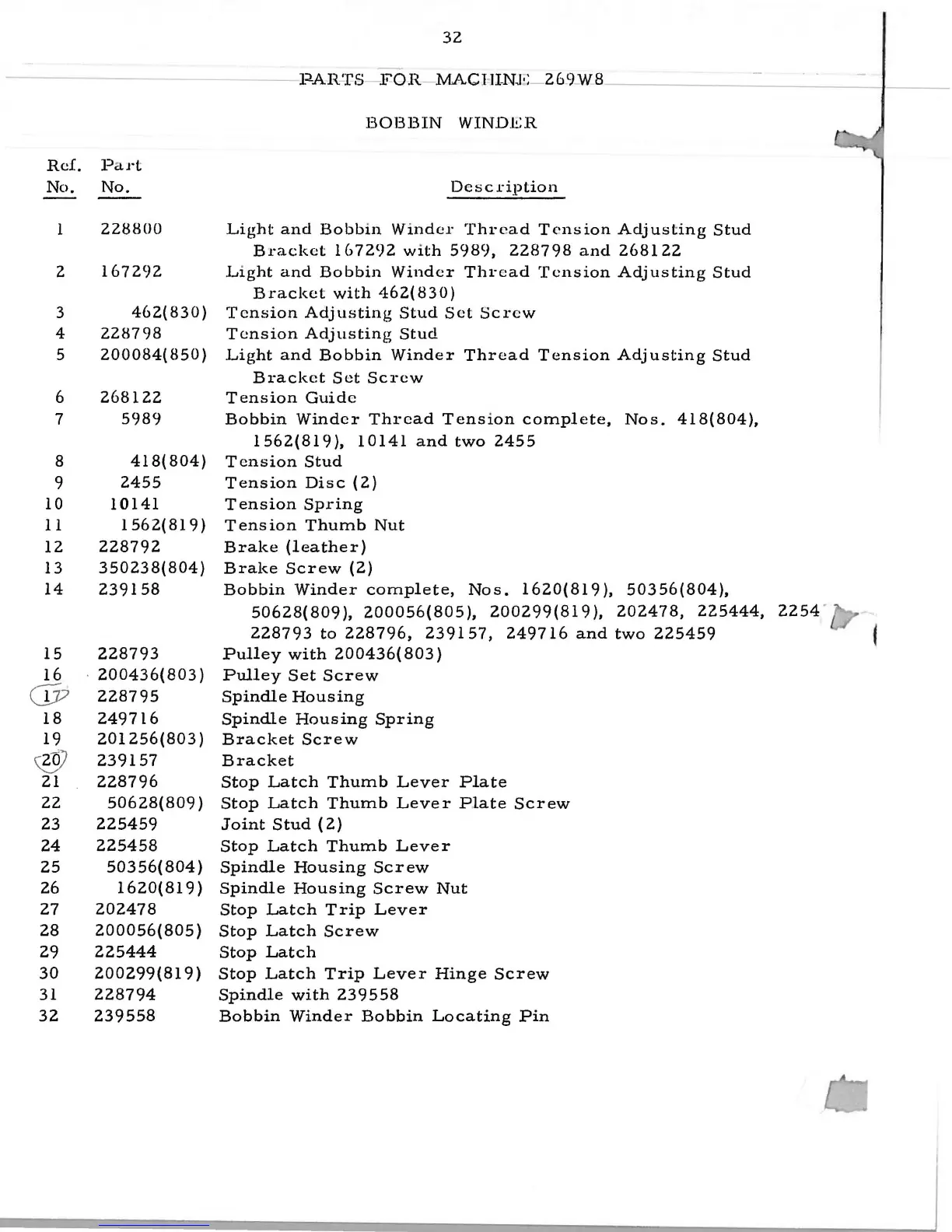

FARTS FOR MACIU-NJ•: 269W8
BOBBIN WINDER
Descdption
Light and Bobbin Winder Thread Tension Adjusting Stud
Bracket 167292 with 5989, 228798 and 268122
L i ght and Bobbin Winder Thread Tension Adjusting Stud
Bracket with 462(830)
Tension Adjusting Stud Set Screw
Tension Adjusting Stud
Light and Bobbin Winder Thread Tension Adjusting Stud
Bracket Set Screw
Tension Guide
Bobbin Winder Thread Tension complete, Nos. 418(804),
1562(819), 10141 and two 2455
Tension Stud
Tension Disc (2)
Tens ion Spring
Tension Thumb Nut
Brake (leather)
Brake Screw (2)
Bobbin Winder complete, Nos. 1620(819 ), 50356(804),
50628( 809 ), 200056(805 ), 200299(819 ), 2024 78, 225444, 2254 .
228793 to 228796, 239157, 249716 and two 225459
Pulley with 200436( 803)
Pulley Set Screw
Spindle Housing
Spindle Housing Spring
Bracket Screw
Bracket
Stop Latch Thumb Lever Plate
Stop Latch Thumb Lever Plate Screw
Joint Stud (2)
Stop Latch Thumb Lever
Spindle Housing Screw
Spindle Housing Screw Nut
Stop Latch Trip Lever
Stop Latch Screw
Stop Latch
Stop Latch Trip Lever Hinge Screw
Spindle with 239558
Bobbin Winder Bobbin Locating Pin
