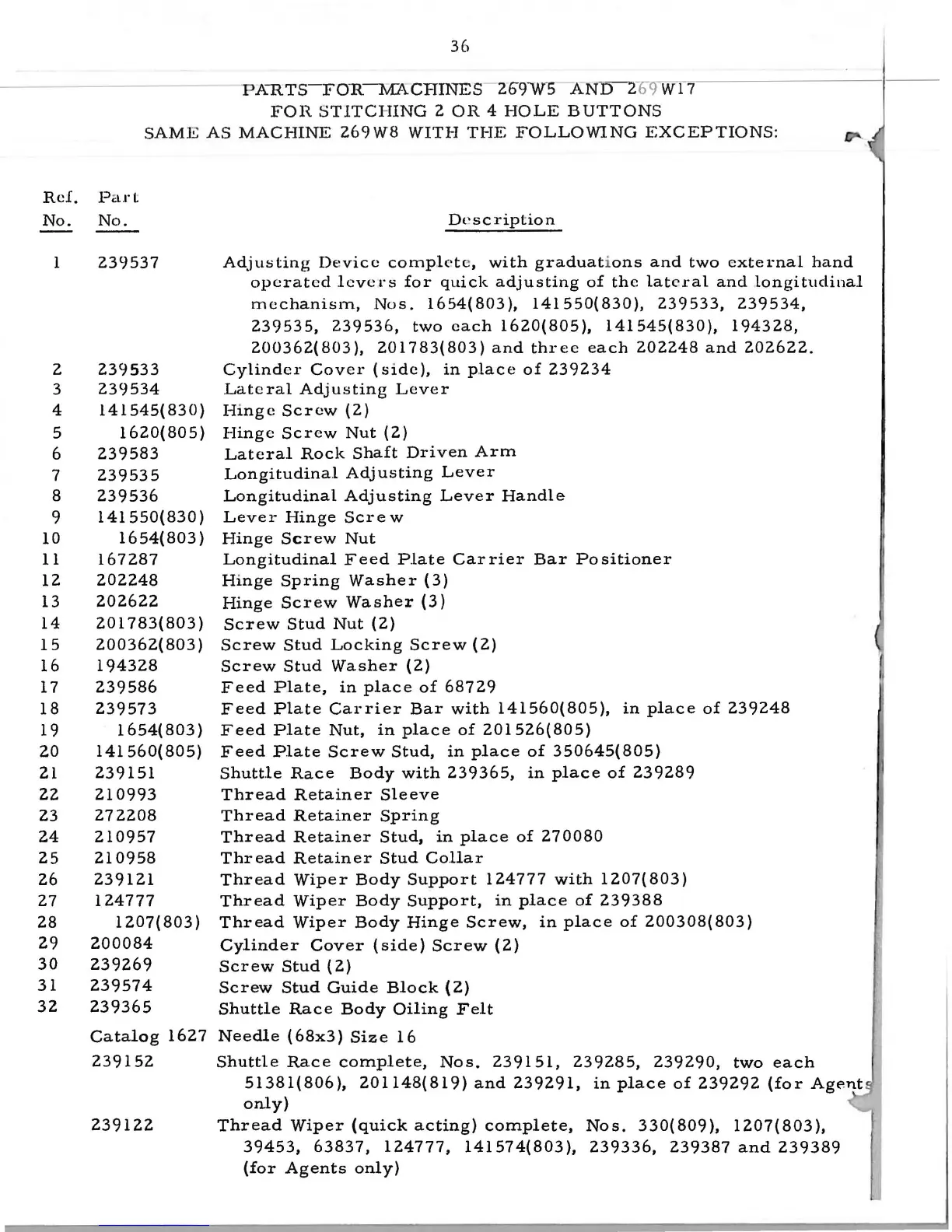

Singer Class 269w - Page 36

36
A-n.Ts-yoR-rv~ACHINES 269WS ANI)2 -69 Wl7
FOR STITCHING 2 OR 4 HOLE BUTTONS
SAME AS MACHINE 269W8 WITH THE FOLLOWING EXCEPTIONS:
Rei. Part
No. No.
1 239537
2
239 533
3
239534
4
141545(830)
5
1620{805)
6
239583
7 239535
8
239536
9
141550{830)
10
1654(803)
11 167287
12
202248
13
202622
14
201783(803)
15
200362(803)
16
194328
17 239586
18 239573
19
1654(803)
20 141560(805)
21 239151
22
210993
23
272208
24 210957
25 210958
26
239121
27 124777
28
1207(803)
29 200084
30
239269
31
239574
32
239365
Catalog
1627
239152
239122
Description
Adjusting Device compl<·tc, with graduat i ons and two external hand
operated levet·s for quick adjusting of the lateral and longitudinal
mechanism, Nos. 1654( 803 ), 141550(830 ), 239 533, 239 534,
239535, 239536, two each 1620(805), 141545(830), 194328,
200362(803), 201783(803) and three each 202248 and 202622.
Cylinder Cover (side), in place of 239234
Lateral Adjusting Lever
Hinge Screw (2)
Hinge Screw Nut (2)
Lateral Rock Shaft Driven Arm
Longitudinal Adjusting Lever
Longitudinal Adjusting Lever Handle
Lever Hinge Sere w
Hinge Screw Nut
Longitudinal Feed Plate Carrier Bar Positioner
Hinge Spring Washer (3)
Hinge Screw Washer (3)
Screw Stud Nut (2)
Screw Stud Locking Screw (2)
Screw Stud Washer (2)
Feed Plate, in place of 68729
Feed Plate Carrier Bar with 141560(805), in place of 239248
Feed Plate Nut, in place of 201526(805)
Feed Plate Screw Stud, in place of 350645(805)
Shuttle Race Body with 239365, in place of 239289
Thread Retainer Sleeve
Thread Retainer Spring
Thread Retainer Stud, in place of 270080
Thread Retainer Stud Collar
Thread Wiper Body Support 124777 with 1207(803)
Thread Wiper Body Support, in place of 239388
Thread Wiper Body Hinge Screw, in place of 200308(803)
Cylinder Cover (side) Screw (2)
Screw Stud (2)
Screw Stud Guide Block {2)
Shuttle Race Body Oiling Felt
Needle ( 68x3) Size 16
Shuttle Race complete, Nos. 239151, 239285, 239290, two each
51381(806), 201148(819) and 239291, in place of 239292 (for Ag~nt
only)
Thread Wiper (quick acting) complete, Nos. 330(809), 1207(803),
39453, 63837, 124777, 141574(803), 239336, 239387 and 239389
(for Agents only)
