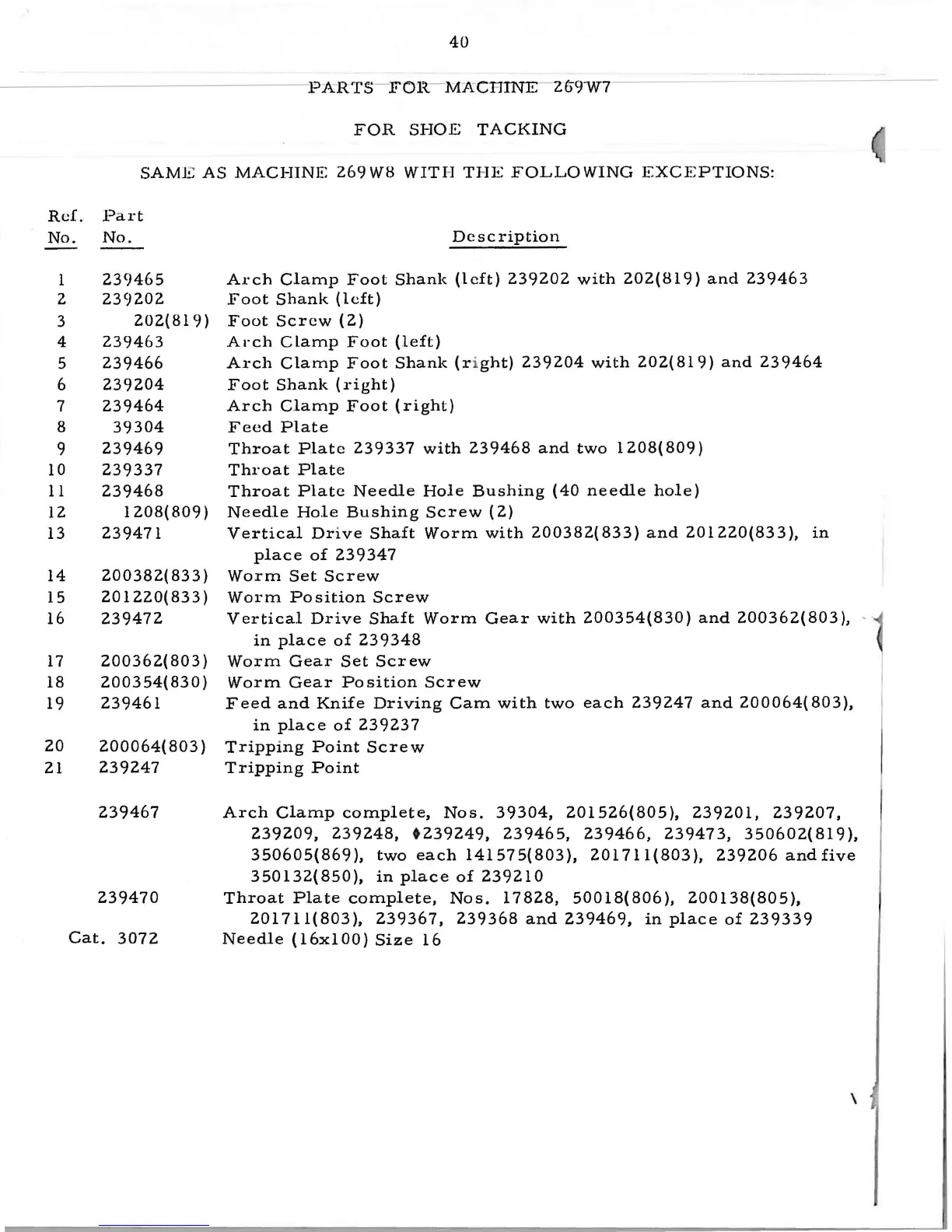

Singer Class 269w - Page 40

40
FOR SHOE TACKING
SAME AS MACHINE 269WB WITH THE FOLLOWING EXCEPTIONS:
Ref. Part
No. No.
1 239465
2 239202
3 202(819)
4 239463
5 239466
6 239204
7 239464
8 39304
9 239469
10 239337
11 239468
12 1208(809)
13 239471
14 200382(833)
15 201220(833)
16 239472
17 200362( 803)
18 200354(830)
19 239461
20 200064( 803)
21 239247
239467
239470
Cat. 3072
Description
Arch Clamp Foot Shank (left) 239202 with 202(819) and 239463
Foot Shank (left)
Foot Screw (2)
Arch Clamp Foot (left)
Arch Clamp Foot Shank (r i ght) 239204 with 202(819) and 239464
Foot Shank (l·ight)
Arch Clamp Foot (right)
Feed Plate
Throat Plate 239337 with 239468 and two 1208( 809)
Throat Plate
Throat Plate Needle Hole Bushing (40 needle hole)
Needle Hole Bushing Screw ( 2)
Vertical Drive Shaft Worm with 200382( 833) and 201220(833 ), in
place of 239347
Worm Set Screw
Worm Position Screw
Vertical Drive Shaft Worm Gear with 200354(830) and 200362(803),
in place of 239348
Worm Gear Set Screw
Worm Gear Position Screw
Feed and Knife Driving Cam with two each 239247 and 200064(803),
in place of 239237
Tripping Point Screw
Tripping Point
Arch Clamp complete, Nos. 39304, 201526(805), 239201, 239207,
239209, 239248, +239249, 239465, 239466, 239473, 350602(819).
350605(869), two each 141575(803), 201711(803), 239206 andfive
350132(850), in place of 239210
Throat Plate complete, Nos. 17828, 50018(806), 200138(805),
20 1711( 803 ), 239367, 239368 and 239469, in place of 239339
Needle ( 16x1 00) Size 16
\
