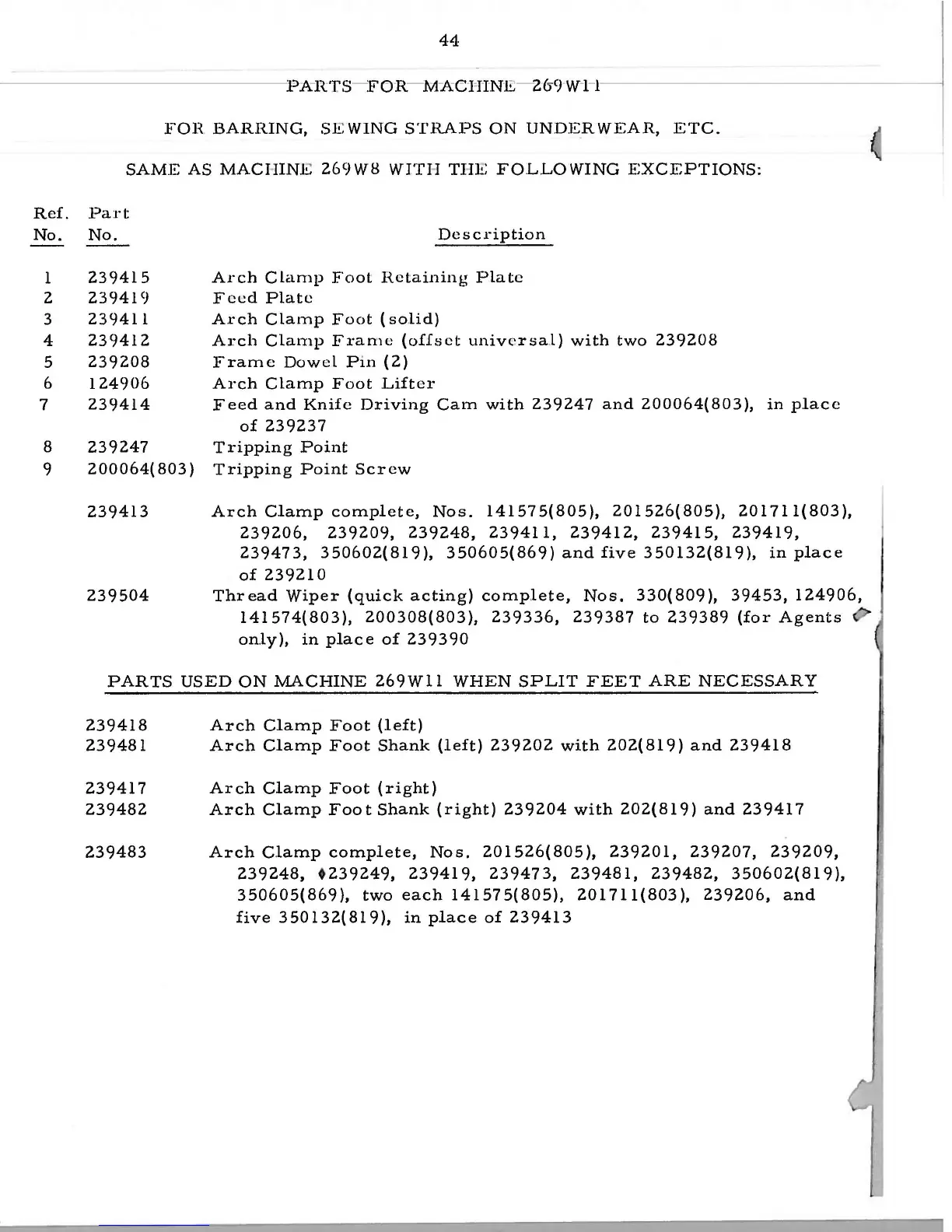

44
FOH BARRING, S E. WING STRAPS ON UNDE _R WEAR, ETC.
SAME AS MACHIN E 269WH WITH TI - JE FOLLOWING EXCEPTIONS:
Ref. Part
No. No.
1
2
3
4
5
6
7
239415
239419
239411
239412
239208
124906
239414
Description
Arch Clamp Foot Retaining Plate
Feed Plate
Arch Clamp Foot (solid)
Arch Clarnp Frame (offset univE·rsa.l) with two 23920H
Frame Dowel Pin (2)
Arch Clamp Foot Lifter
Feed and Knife Driving Cam with 239247 and 200064(803), in place
of 239237
8 239247 Tripping Point
9 200064( 803) Tripping Point Screw
239413
239504
Arch Clamp complete, Nos. 141575(805), 201526(805), 201711(803),
239206, 239209, 239248, 239411, 239412, 239415, 239419,
239473,
350602(819), 350605(869) and five 350132(819), in place
of 239210
Thread Wiper (quick acting) complete, Nos, 330( 809 ), 39453, 124906,
141574(803), 200308(803), 239336, 239387 to 239389 (for Agents
only), in place of 239390
PARTS USED ON MACHINE 269Wll WHEN SPLIT FEET ARE NECESSARY
239418
239481
239417
239482
239483
Arch Clamp Foot (left)
Arch Clamp Foot Shank (left) 239202 with 202(819) and 239418
Arch Clamp Foot (right)
Arch Clamp Foot Shank (right) 239204 with 202(819) and 239417
Arch Clamp complete, Nos. 201526(805), 239201, 239207, 239209,
239248, + 239249, 239419, 239473, 239481, 239482, 350602(819),
350605(869), two each 141575(805), 201711(803), 239206, and
five 350132(819), in place of 239413
