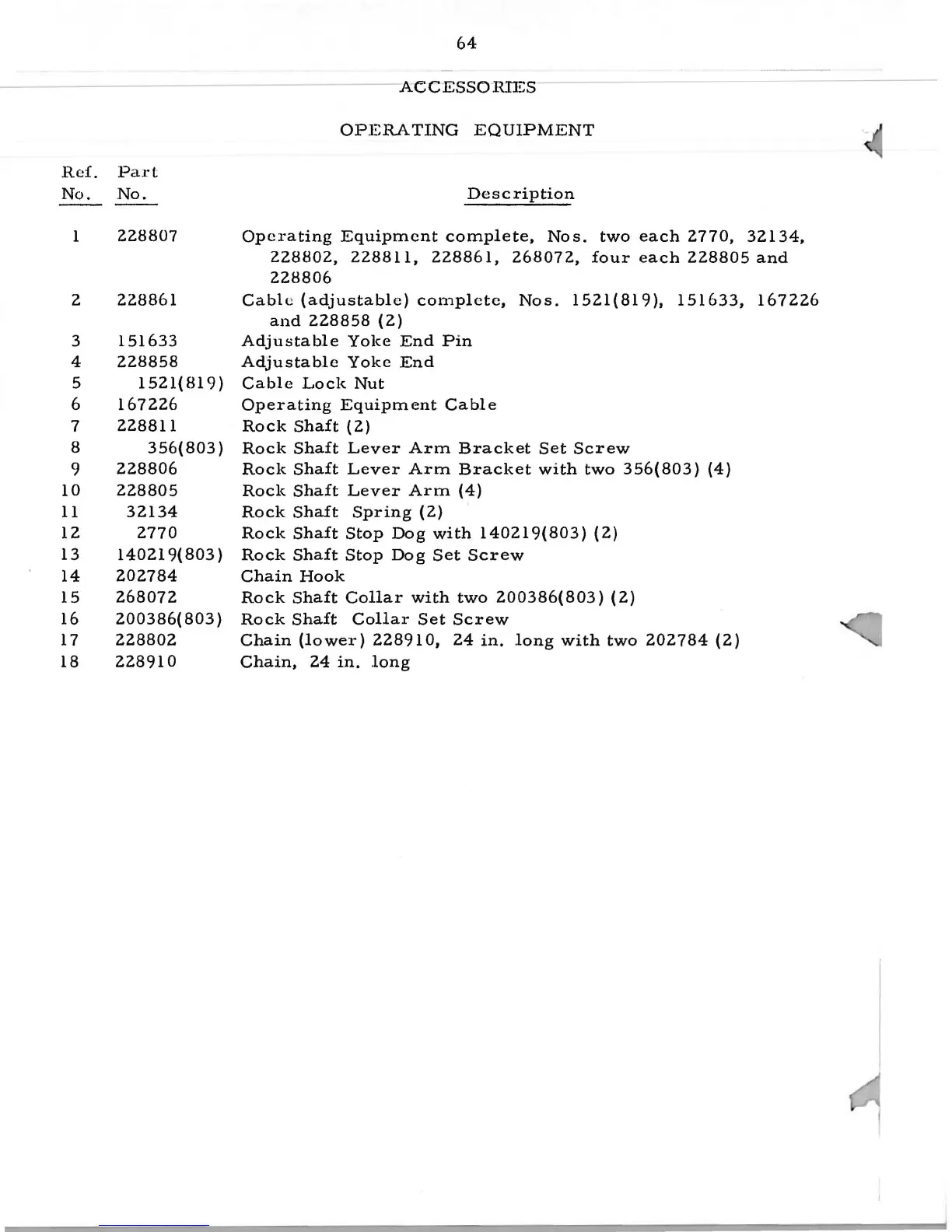

Singer Class 269w - Accessories Operating Equipment

Rd. Part
No. No.
1 228807
2 228861
3 151633
4 228858
5 1521(819)
6 167226
7
228811
8
356(803)
9
228806
10 228805
11 32134
12 2770
13 140219( 803)
14
202784
15
268072
16
200386( 803)
17
228802
18
228910
64
ACCESSORIES
OPERATING EQUIPMENT
Description
Operating Equipment complete, Nos. two each 2770, 32134,
228802, 228811, 228861, 268072, four each 228805 and
228806
Cabl e (adjustable) complete, Nos. 1521(819), 151633, 167226
and 228858 (2)
Adjustable Yoke End Pin
Adjustable Yoke End
Cable Lock Nut
Operating Equipment Cable
Rock Shaft (2)
Rock Shaft Lever Arm Bracket Set Screw
Rock Shaft Lever Arm Bracket with two 356(803) (4)
Rock Shaft Lever Arm (4)
Rock Shaft Spring (2)
Rock Shaft Stop Dog with 140219(803) (2)
Rock Shaft Stop Dog Set Screw
Chain Hook
Rock Shaft Collar with two 200386(803) (2)
Rock Shaft Collar Set Screw
Chain (lower) 228910, 24 in. long with two 202784 (2)
Chain, 24 in. long
From the library of: Superior Sewing Machine & Supply LLC
