£27566

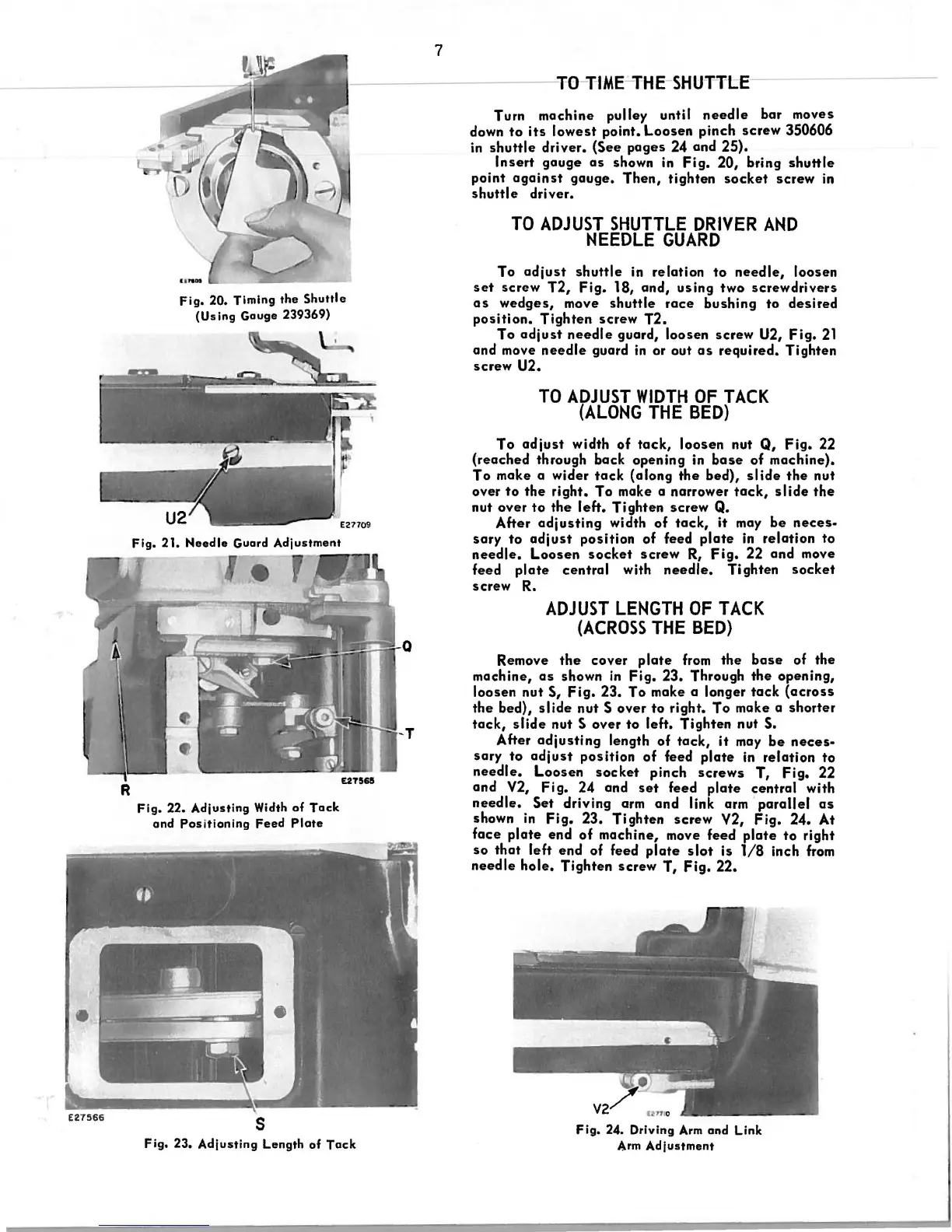

Fig.
20.
Timing
the
Shuttle
(Using
Gauge
239369)
Fig.
21.
Needle
Guard
Adjustment
Fig.
22.
Adjusting
Width
of
Tack
and
Positioning
Feed
Plote
s
Fig.
23.
Adjusting
Length
of
Tack
7
TO
TIME
THE
SHUTTLE
Turn
machine
pulley until
needle
bar
moves
dawn
ta
its
lowest
paint.
Loosen
pinch
screw
350606
in
shuttle
driver.
(See
pages
24 and
25).
Insert
gauge
as
shown in
Fig.
20,
bring
shuttle
point
against
gauge.
Then,
tighten
socket
screw
in
shuttle
driver.
TO
ADJUST
SHUTTLE
DRIVER
AND
NEEDLE
GUARD
To
adjust
shuttle
in
relation
to
needle,
loosen
set
screw
T2,
Fig.
18,
and,
using
two
screwdrivers
as
wedges,
move
shuttle
race
bushing
to
desired
position.
Tighten
screw
T2.
To
adjust
needle
guard,
loosen
screw
U2,
Fig.
21
and
move
needle
guard
in
or out
as
required.
Tighten
screw
U2.
TO
ADJUST
WIDTH
OF
TACK
(ALONG
THE
BED)
To
adjust
width
of
tack,
loosen
nut
Q,
Fig.
22
(reached
through back
opening
in
base
of
machine).
To
make a
wider
tack
(along
the
bed),
slide
the
nut
over
to
the
right.
To
make a narrower
tack,
slide
the
nut
over
to
the
left.
Tighten
screw
Q.
After
adjusting
width
of
tack,
it may
be
neces·
sary
to
adjust
position
of
feed
plate
in
relation
to
needle.
Loosen
socket
screw
R,
Fig.
22
and
move
feed
plate
central
with
needle.
Tighten
socket
screw
R.
ADJUST
LENGTH
OF
TACK
(ACROSS
THE
BED)
Remove
the
cover
plate
from
the
bose
of the
machine,
as
shown
in
Fig.
23.
Through
the
opening,
loosen
nutS,
Fig.
23.
To
make a longer
tack
(across
the
bed),
slide
nut
S
over
to
right.
To
make a
shorter
tack,
slide
nut
S
over
to
left.
Tighten
nut
S.
After
adjusting
length
of
tack,
it
may
be
neces·
sary
to
adjust
position
of
feed
plate
in
relation
to
needle.
Loosen
socket
pinch
screws
T,
Fig.
22
and
V2,
Fig.
24
and
set
feed
plate
central
with
needle.
Set
driving
arm
and
link arm
parallel
as
shown
in
Fig.
23.
Tighten
screw
V2,
Fig.
24.
At
face
plate
end
of
machine,
move
feed
plate
to
right
so
that
left
end
of
feed
plate
slot
is
1/8
inch from
needle
hole.
Tighten
screw
T,
Fig.
22.
Fig,
24.
Driving
Arm
and
Link
Arm
Adjustment
