Singer Inspiration 4210 User Manual

Singer Inspiration 23
Setting

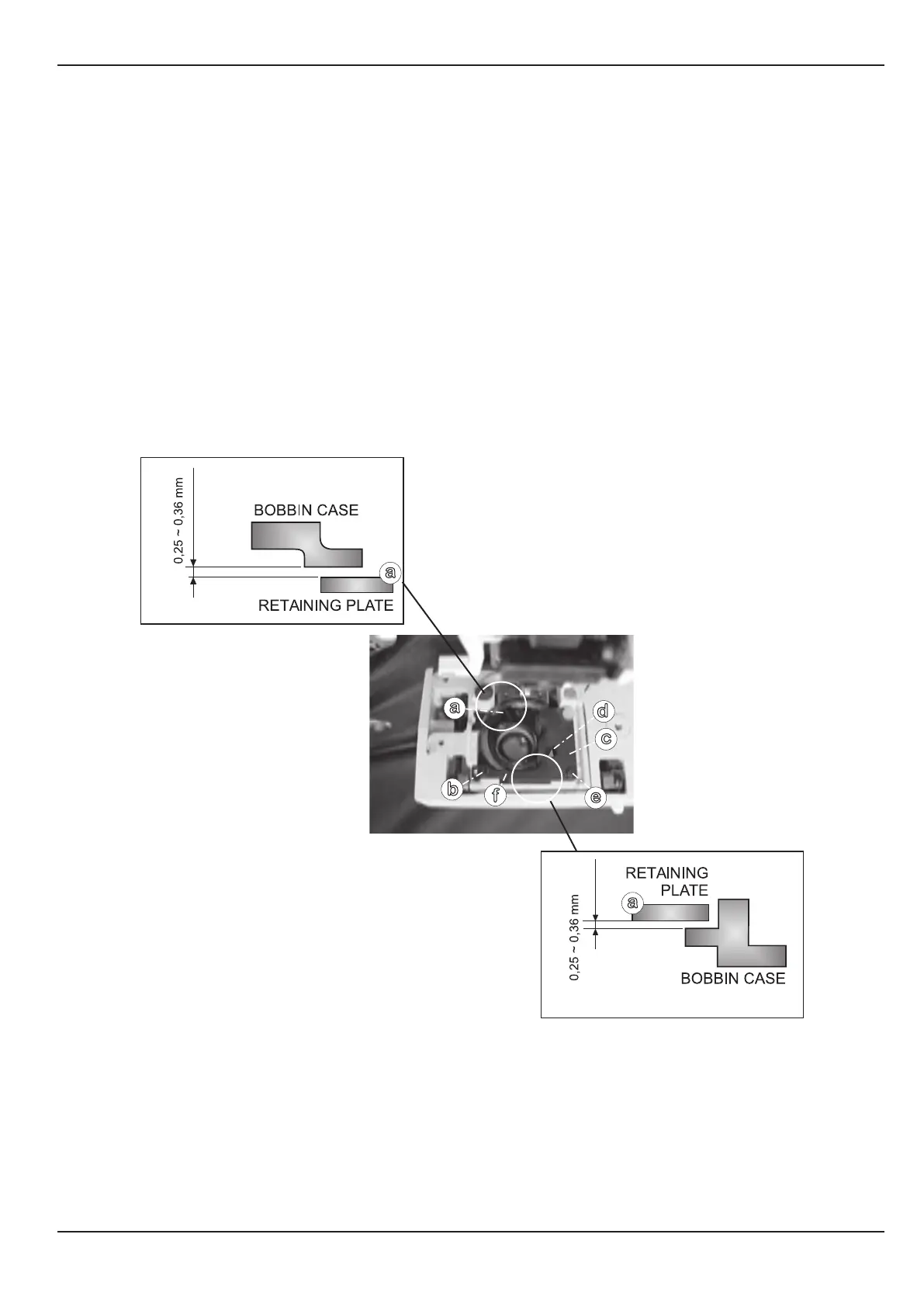

Bobbin case clearances
Check
1. Remove the needle plate.
2. Turn handwheel to the front of the machine, to lead hook point to position (d).
3. Rest heel of the bobbin case against the position plate (c).
4. The clearance between retaining plate and bobbin case must be between 0,25 and 0,36 mm.
NOTE ! Equaly, the clearance between the extension of position plate (c) and bobbin case up-
per surface (f) should comply with the above criteria.
If the measurement is not correct:
Adjustment
1. Turn handwheel to the front of the machine, to lead hook point to position (d).
2. By means a screwdriver adjust clearances bending the extension upwards or downwards
according the measures.

Singer Inspiration 4210 Specifications

General

Free arm	Yes
Control type	Rotary
Product color	White
Buttonhole type	4 Step
Number of programs	21
Sewing machine functions	Sewing
Number of stitch patterns	10
AC input voltage	220 - 240 V

Weight and Dimensions

Width	430 mm
Height	310 mm
Weight	8000 g
