24 Singer Inspiration
Setting

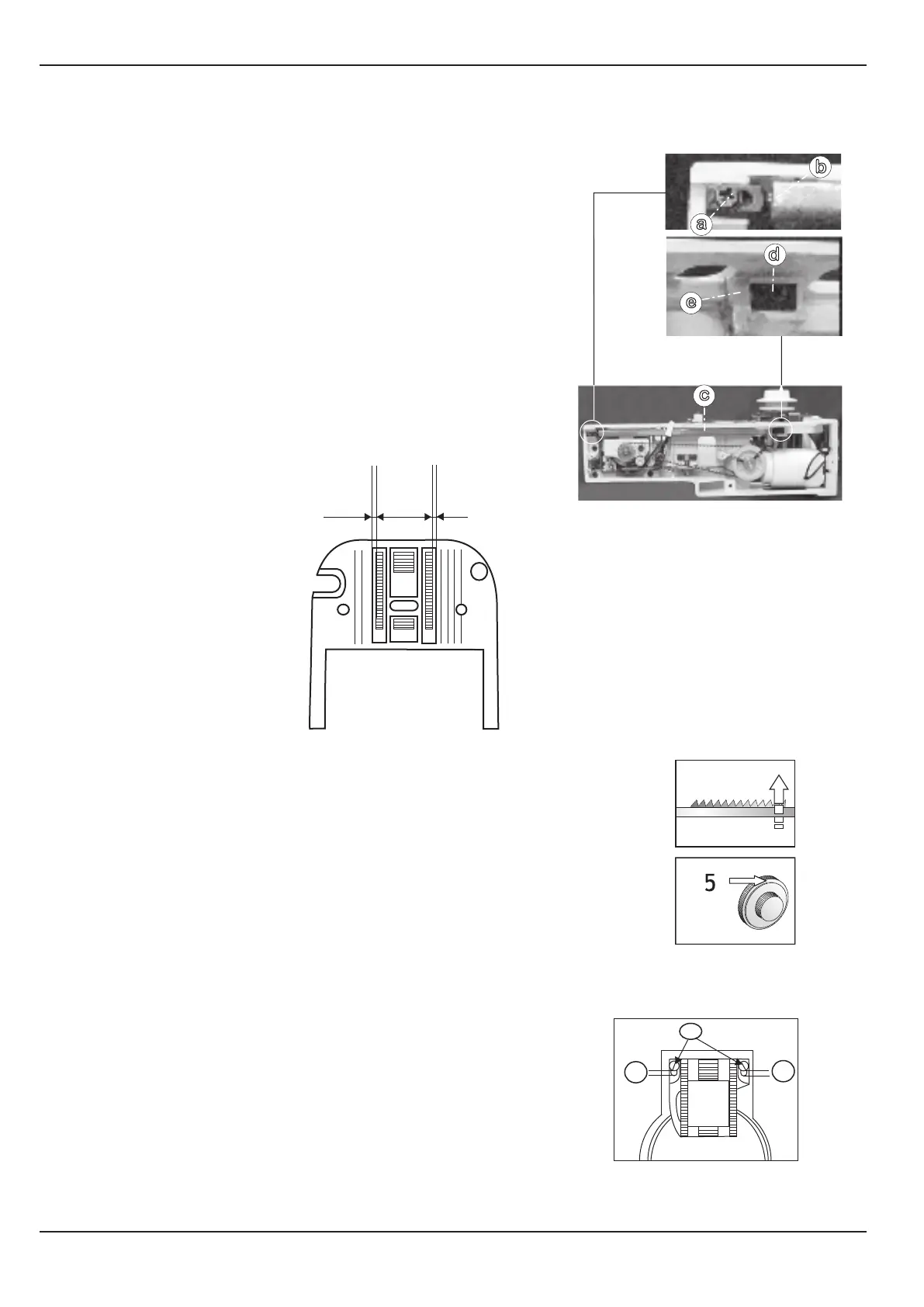

Feed rock shaft end play
Check
The the feed rock shaft (c) should have no end play when moving it left to right
Adjustment
1. Hold feed rock shaft (c) to the left against rock shaft center
(b) and check that the feed dog is centralized in the needle
plate slots.
3. If is not, loose the screw (a) and move center (b) with rock
shaft (c) left or right move feed dog so the distance (G) and (H)
is equal in needle plate slot.
4. Tighten the screw (a) and loose the screw (c).
5. Move the rock shaft center (e) to the left against the shaft (c).
6. Tighten the screw (d).
Feed dog centralization
Check
1. Make sure the feed dog is up.
2. Set the stitch lenghts to 5.
3. The feed dog should sideways, be symmetrically so the distance (G) and
(H) is equal to the needle plate slot.
Adjustment
1. Remove the needle plate
2. Make sure the feed dog is up (If the Machine has a drop feed)
3. Loose the two screws (a) lightelly.
4. Mount the needle plate.
3. Move feed dog so the distance (G) and (H) is equal.
4. Remove the needle plate and tighten the screws (a).
Note! The Feed dog screws (a) must be located at the very rear of
the slots (b) of feed dog.
