When inserting or removing the bobbin, the needle must be
fully raised.
Attention:
Turn power switch to off ("O") before inserting or removing
the bobbin.

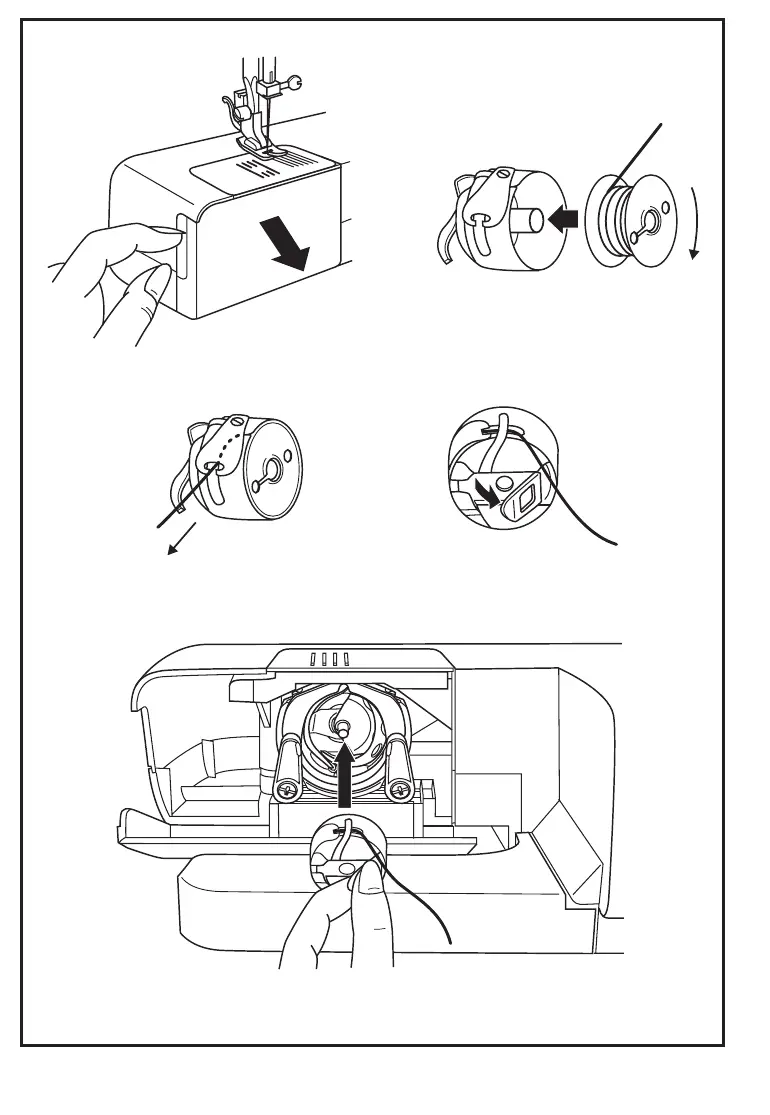

- Open the hinged cover (1).
- Hold the bobbin case with one hand. Insert the bobbin so that
the thread runs in a clockwise direction (arrow) (2).
- Pull the thread through the slit and under the finger (3).
- Hold the bobbin case by the hinged latch (4).
- Insert it into the shuttle (5).
20
GB
Inserting the bobbin
12
3
4
5
