Service Manual
One Plus
Model
5. Needle threader height --continued--

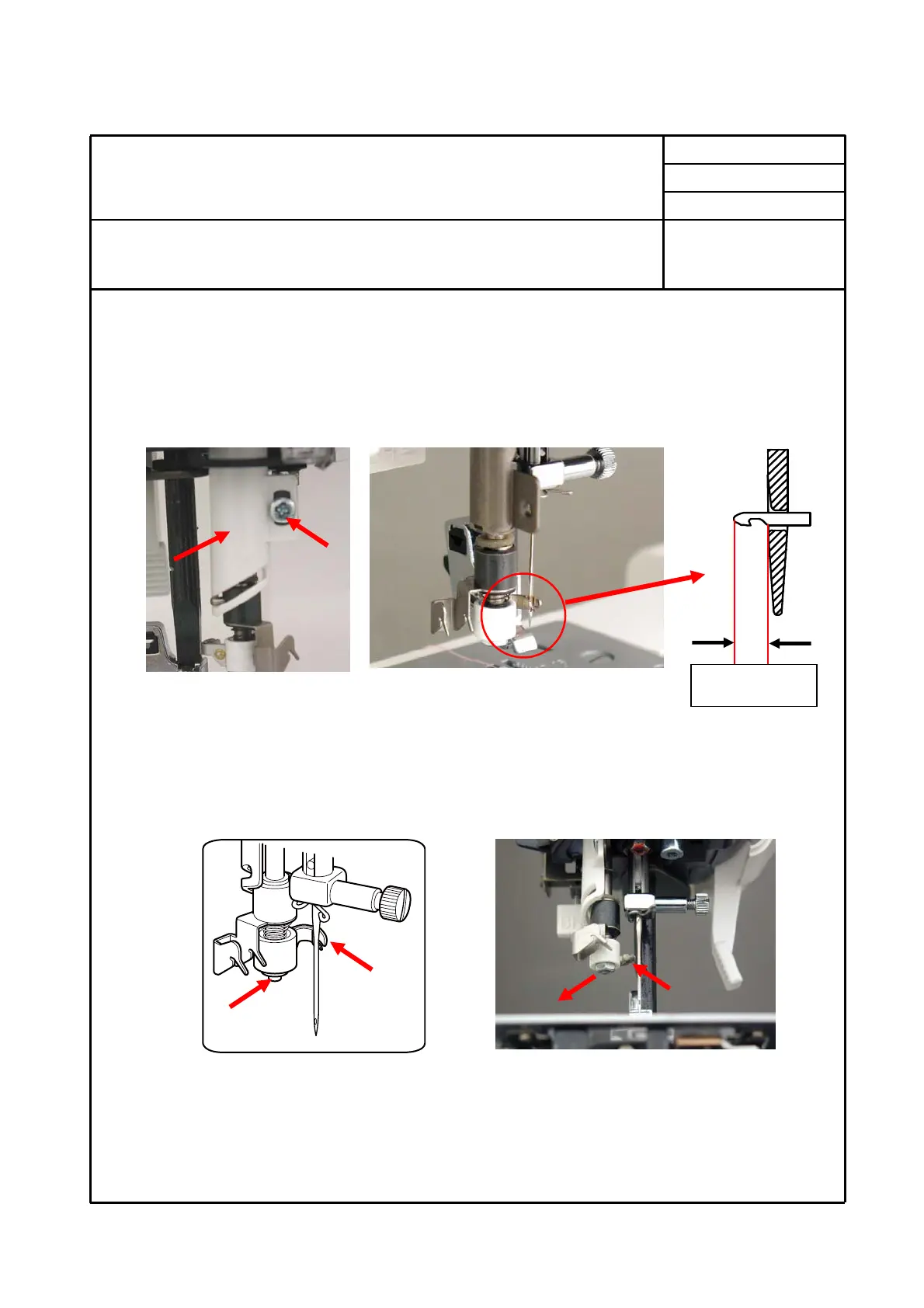

Remove screw (K) and outer pipe (J). Pull down the threading lever to its
lowest position. Check and see if hook protrudes approx. 1.5mm from needle.
Loosen nut (F) under threader support shaft and turn hook portion (G) in either
way for adjustment. Tighten the nut (F) securely after adjustment.
Reassemble outer pipe (J) to correct position.
F
G
F
G
K
J
approx.1.5mm
To Next Page
