Page 18/41
Original issue
Oct.2012
Service Manual
One Plus
Model

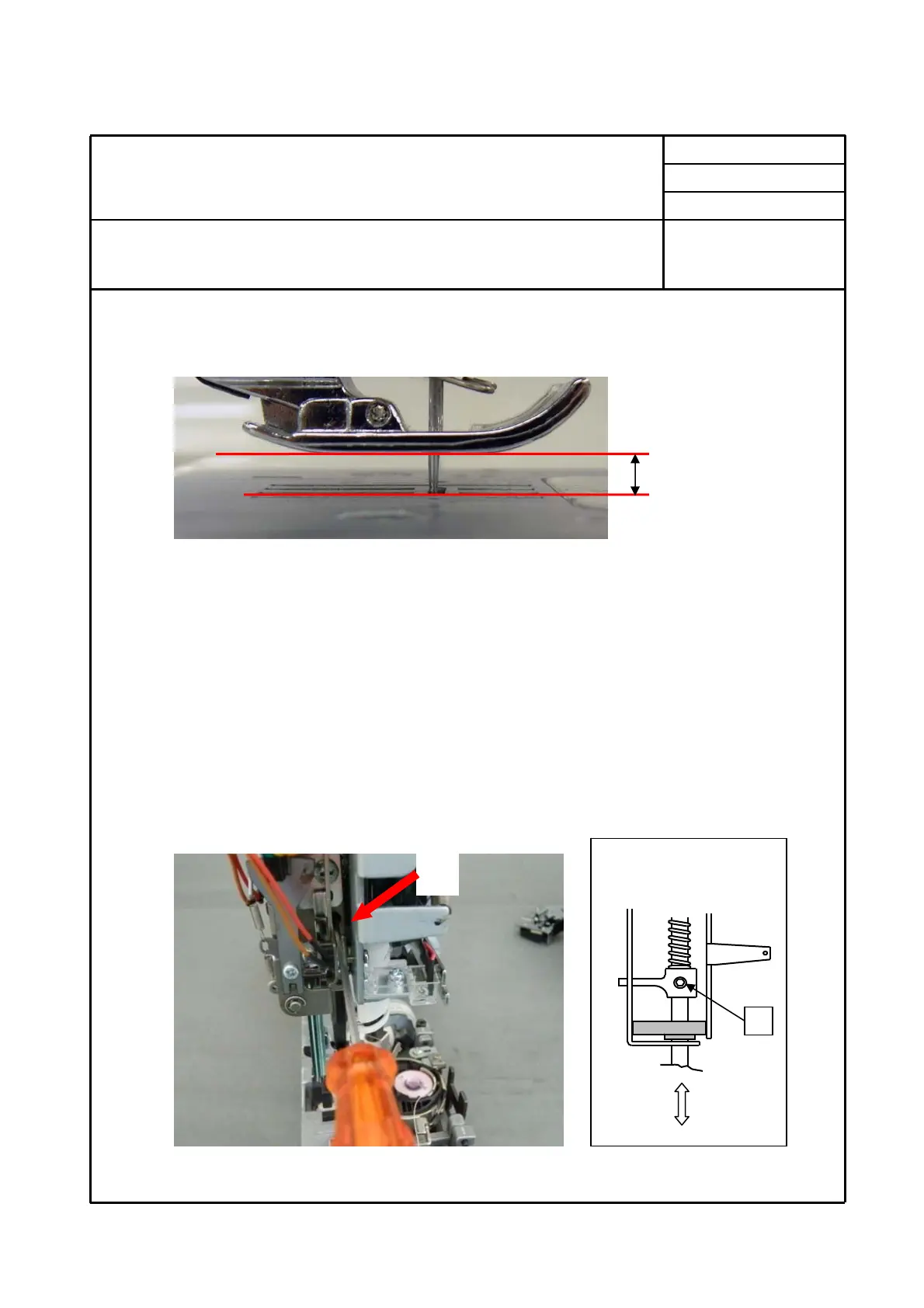

6. Presser foot height and direction
Checking
1. Lower the feed dog below the needle plate.
2. Raise the presser foot lever.
3. Check and see if clearance between needle plate and presser foot is about 5.6 mm.
Adjustment
1. Remove the face cover, and Raise the presser foot lever.
2. Loosen the screw (A) and adjust the presser foot height moving the presser bar.
3. Tighten the screw securely after checking the presser foot is parallel with the holes for
feed dog on the needle plate.
5.6 mm
A
A
To Next Page
