Antenna
Connect the 75 OHM coaxial cable from the antenna to the antenna socket on the rear
panel, as shown above.
Note:
For better reception,
an external roof-mounted antenna is recommended.
For UHF TV reception, use the specified UHF antenna.
When using 300 OHM flat cable, a 300 OHM-75 OHM adapter should be used for a
proper connection to the antenna jack (The adaptor is not supplied).
especially in outlying areas or where ghost effect or interference occur,
Consult a local AV technician.

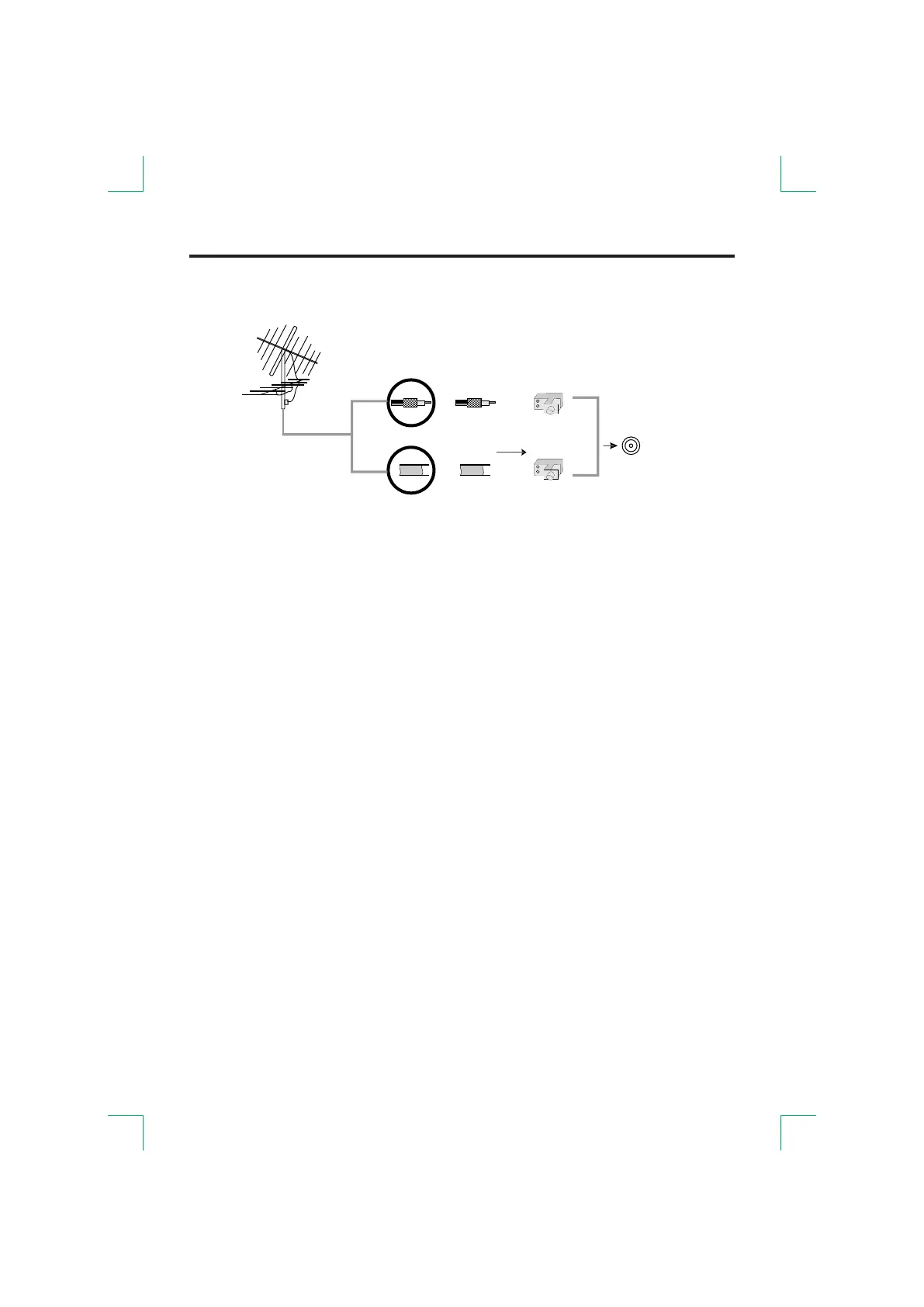

VHF TV ANTENNA
UHF TV ANTENNA
75 OHM COAXIAL CABLE
300 OHM FLAT CABLE
To TV ANTENNA JACK
300 OHM
75 OHM ADAPTOR
75 OHM DIN
Connection
