15

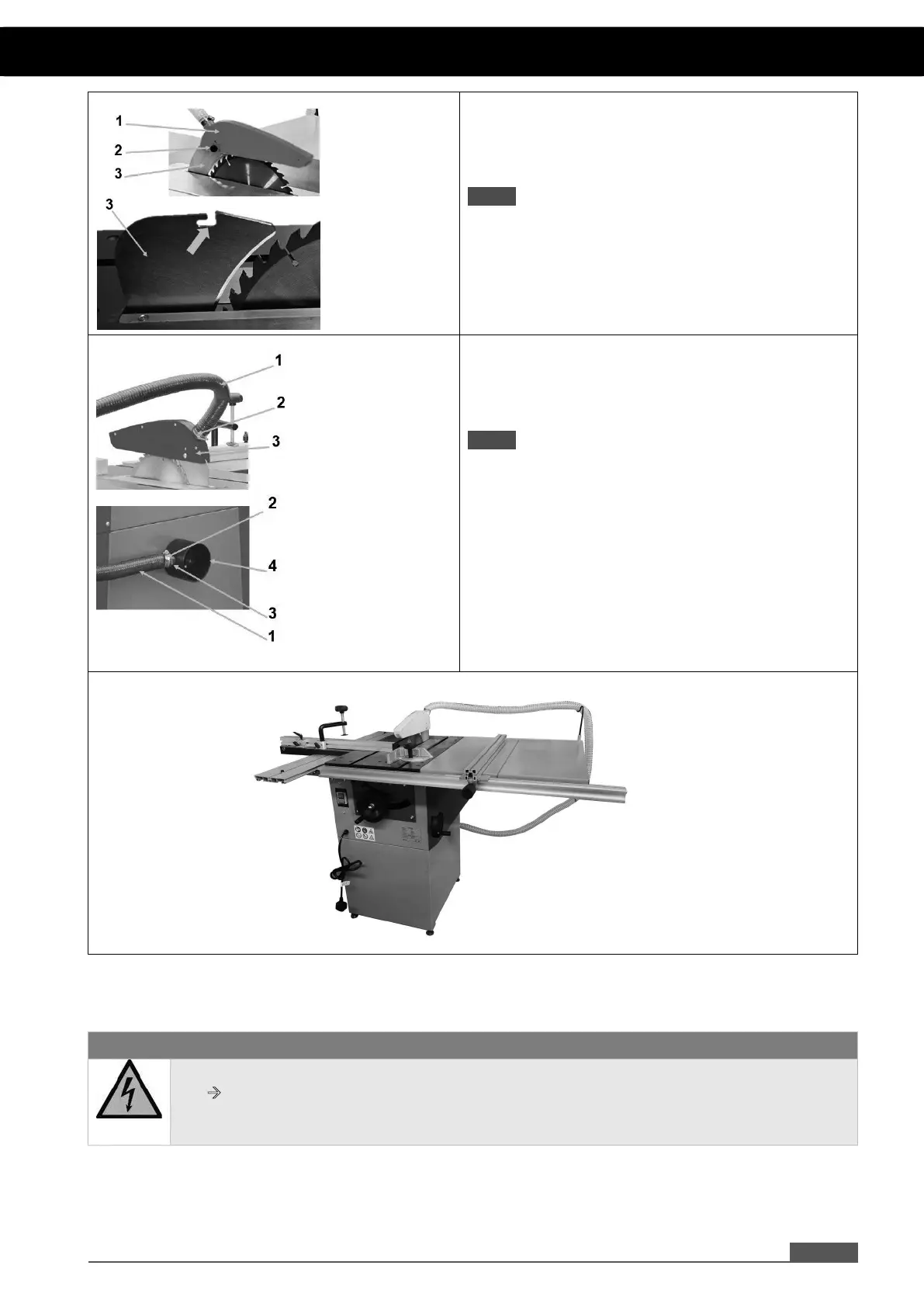

14. Assembly saw blade guard
Fix the saw blade guard (1) to the riving knife (3)
with the locking screw (2).
NOTE: The saw blade guard should be positioned
as close as possible to the workpiece.
15. Assembly suction hose
• Attach the 32 mm suction hose (1) to the saw
blade guard (3) with a hose clamp (2), then
hook the suction hose into the holder.
NOTE: Ensure that the suction hose is not kinked
and that there is sufficient distance between the
suction hose and the work area.
• Fasten the other end of the 32 mm suction
hose (1) with a hose clamp (2) to the suction
socket (3).
• One end of the 100 mm suction hose is
attached to the suction socket (4) with a hose
clamp (not included in the delivery content).
• The other end of the suction hose is
connected to a dust collection system (not
included in delivery).
5.5 Electrical connection
WARNING
Dangerous electrical voltage!
The machine may only be connected to the mains supply and the associated
checks carried out by a qualified electrician or under the instruction and
supervision of a qualified electrician!
• Check, whether the neutral connection (if existing) and the protective grounding
function properly.
• Check, whether the supply voltage and the frequency correspond to the specifications of
the machine.
5. ASSEMBLY Cont...
