OPERATING INSTRUCTIONS….cont

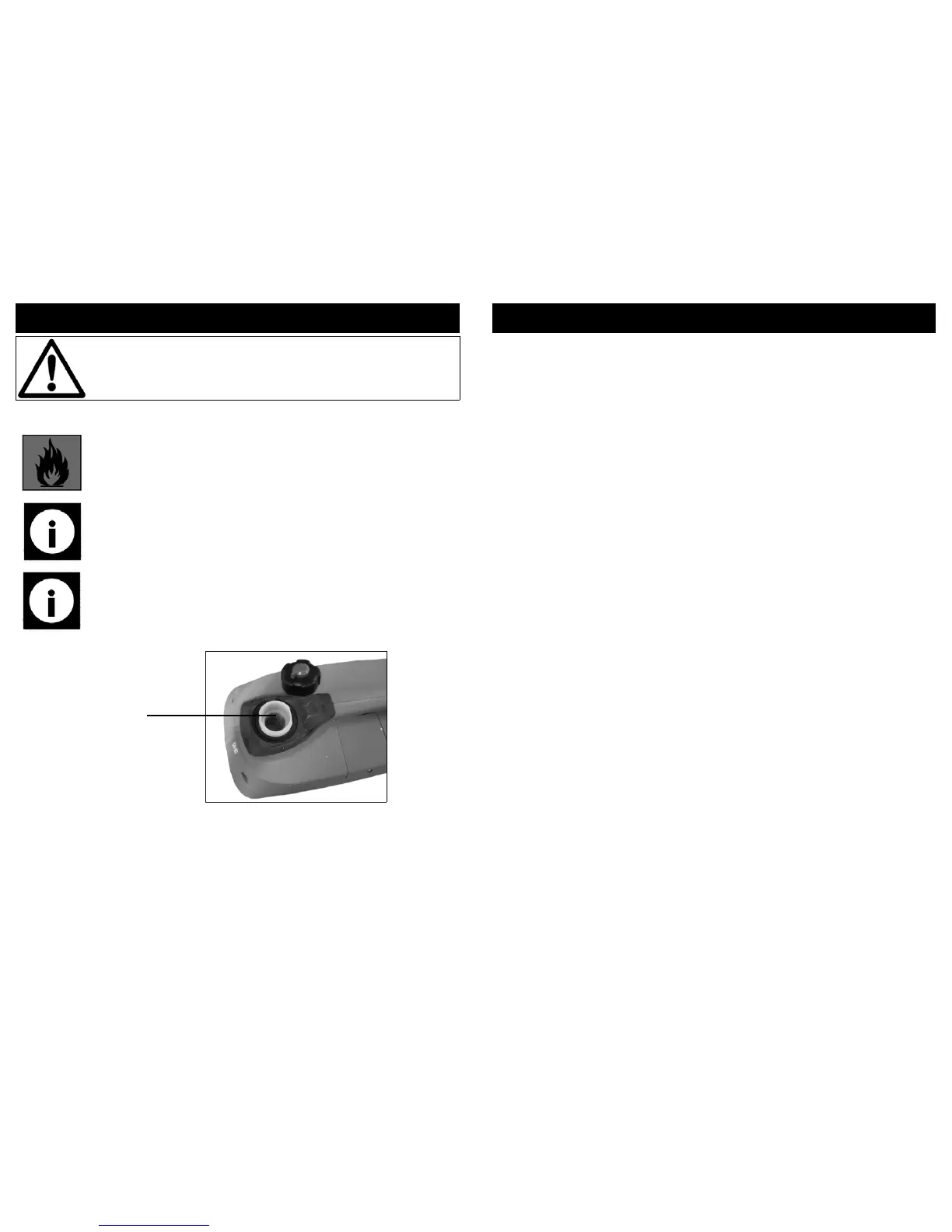

Fill with fuel:
Caution: Be sure oil level is maintained. Failure to do so will invalidate
any warranty you may have.
Flammable: The fuel used to run this generator (unleaded petrol) is
highly flammable. Never re-fuel the generator whilst it is running. Do not
re-fuel near naked flames or other possible ignition sources.
Note: Never overfill the fuel tank; leave a small air gap at the top.
Fuel capacity: approx. 2.7 Litres Ti-1002 & 6.5 Litres Ti-2002.
Note: When re-fuelling always ensure that the fuel filter (supplied) is in
place under the filler cap, as foreign matter or debris will cause dam-
age to the engine and greatly reduce the life of the generator.
To re-fuel the generator:
1. Remove the fuel cap.
2. Carefully pour the petrol into the tank to the desired level and replace the fuel cap.
3. Remove any spilt fuel from the generator and surrounding area to avoid any risk of
fire.
The generator should now be ready to run.
Fuel Filter
21
PARTS LIST
Ref. No Description SIP Part No Ref. No. Description SIP Part No.
1 Engine PW01-00001 35 Fuel Tank Cap PW01-00030
2 Stator PW01-00002 36 Fuel Tank Filter PW01-00031
3 Bolt M5x25 PW01-00003 37 Fuel Tank Cover PW01-00032
4 Flywheel Assembly PW01-00004 38 Fuel Tank PW01-00033
5 Flange Nut M10x1.25 PW01-00005 39 Clip 9mm PW01-00020
6 Flywheel Fan PW01-00006 40 Fuel Tank Outlet PW01-00034
7 Clutch Connector PW01-00007 41 Clip 7mm PW01-00027
8 Flange Bolt M6x12 PW01-00008 42 Tube Sleeve PW01-00035
9 Starter Cover PW01-00009 43 Fuel Tank Rubber Seal PW01-00036
10 Washer M8 PW01-00010 44 Inverter Block PW01-00037
11 Flange Bolt M6x16 PW01-00011 45 Flange Bolt M6x12 PW01-00008
12 Fan Cover PW01-00012 46 Rubber Foot PW01-00038
13 Flange Bolt M5x16 PW01-00013 47 Flange Bolt M5x12 PW01-00039
14 Ignition Coil PW01-00014 48 Engine Frame PW01-00040
15 Self Tapping Screw 4.8x30 PW01-00015 47 Flange Bolt M6x35 PW01-00041
16 Recoil PW01-00016 50 Flange Bolt M6 PW01-00042
17 Flange Bolt M6x12 PW01-00008 51 Voltage Regulator Mount PW01-00043
18 Ignition Coil Protector PW01-00017 52 Voltage Regulator PW01-00044
19 Cross Head Screw M5x12 PW01-00018 53 Flange Bolt M6 PW01-00042
20 Recoil Cover Bracket PW01-00019 54 Vibration Mount PW01-00045
21 Clip 9mm PW01-00020 55 Flange Bolt M6x16 PW01-00011
22 Vacuum Pump Air Hose PW01-00021 56 Engine Base Support PW01-00046
23 Clip 8mm PW01-00022 57 Flange Bolt M6 PW01-00042
24 Clip 8mm PW01-00022 58 Flange Bolt M5x12 PW01-00039
25 Vacuum Pump Outlet PW01-00023 59 Sensor PW01-00047
26 Clip 8mm PW01-00022 60 Clip 10mm PW01-00048
27 Flange Bolt M6x20 PW01-00024 51 Air Hose Short PW01-00049
28 Vacuum Pump PW01-00025 62 Clip 11mm PW01-00050
29 Clip 8mm PW01-00022 63 Tube Connector PW01-00051
30 Vacuum Pump Inlet PW01-00026 64 Carburettor Backlit Pad PW01-00052
31 Clip 7mm PW01-00027 65 Carburettor Gasket Large PW01-00053
32 Nut M8 PW01-00028 66 Carburettor PW01-00054
33 Flange Bolt M6x12 PW01-00008 67 Clip 8mm PW01-00022
34 Ignition System PW01-00029 68 Carburettor Inlet PW01-00055
