SAFETY INSTRUCTIONS….cont
Flammable: The fuel used to run this generator (unleaded petrol) is
highly flammable. Never re-fuel the generator whilst it is still running.
Store un used fuel safely and away from children and in accordance
with local regulations / laws.
Electrical current from the generator may "back feed" into the home's electrical sys-
tem.
It could cause damage or fire to the building, the generator as well as anything con-
nected to it.
Should a generator be required to be connected to any electrical system, it must be
installed by a suitably qualified electrician who can warn you of any dangers that may
occur.
Incorrectly installed generators can also cause personal injury. For example, if a power
company employee is working on an electrical line believing it to be "dead" and cur-
rent created by the generator is in the line, shock or electrocution may occur.
The key to better safeguard against these dangers is professional installation by a
qualified electrician and the installation of a generator transfer switch.
Keep in mind a generator burns fuel and must be run in a well ventilated area, it must
not be run in a garage or other outbuilding.
Cords used to connect the generator to the lights and appliances must be correctly
sized to prevent overheating or damage to the equipment as well, again if you are
unsure ask a suitably qualified electrician.
Caution: Never attempt to connect the generator directly to the electrical
system of any building / structure which is connected to the main grid.

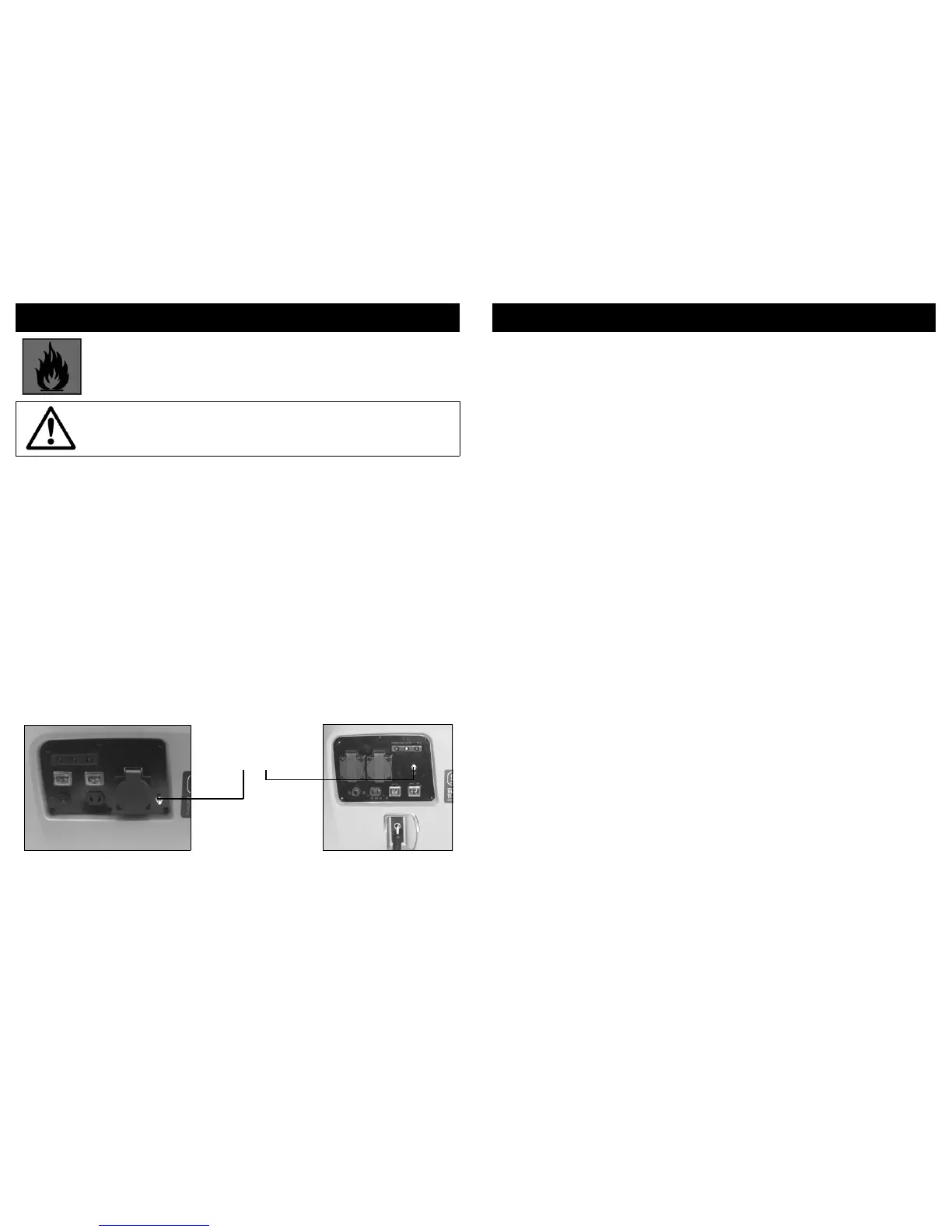

1. Use the ground terminal (see picture above) on the generator to connect the unit to
a suitable ground source. Securely fasten the end terminal of the ground wire to the
ground terminal on the generator.
2. The ground wire should be made of more than 0.75 square millimetre wire. Too thin
Grounding instructions:
Earth / Ground
Terminal
27
PARTS LIST….cont
119 Washer M4 PW01-00064 119 Washer M4 PW01-00064
120 Bracket Connector PW01-00177 120 Bracket Connector PW01-00177
121 Muffler Shield Left PW01-00178 121 Muffler Shield Left PW01-00178
122 Canister Bracket PW01-00179 122 Canister Bracket PW01-00179
123 Flange Bolt M5x16 PW01-00013 123 Flange Bolt M5x16 PW01-00013
124 Canister PW01-00180 124 Canister PW01-00180
125 Canister Bracket PW01-00181 125 Canister Bracket PW01-00181
126 Flange Bolt M5x12 PW01-00039 126 Flange Bolt M5x12 PW01-00039
127 Clip 8mm PW01-00022 127 Clip 8mm PW01-00022
128 Clip 10mm PW01-00048 128 Clip 10mm PW01-00048
129 Canister Tube PW01-00182 129 Canister Tube PW01-00182
130 Canister Tube PW01-00183 130 Canister Tube PW01-00183
131 Clip 9mm PW01-00020 131 Clip 9mm PW01-00020
132 Flange Bolt M5 PW01-00077 132 Flange Bolt M5 PW01-00077
118 Self Tapping Screw 4x12 PW01-00079
To Next Page
