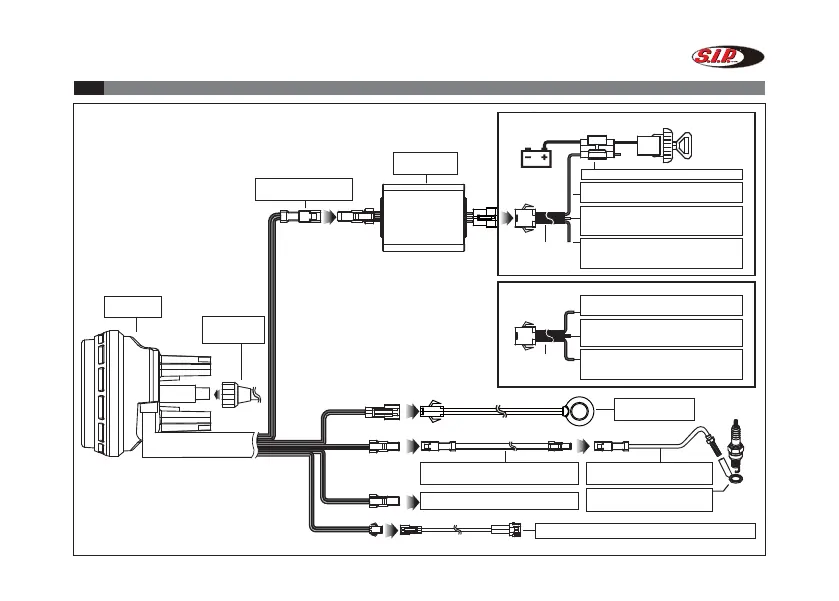

WIRING INSTALLATION INSTRUCTION
2.1
Temp. sensor extension wire
(part no. 7)
Speed sensor (optional)
Fuel warning switch extension wire (part no. 6)
Meter
(part no. 1)
Power box
(part no. 2)
Connection
speedometer
cable
Optional extension
(part no. 4)
M14 adapter for temp.
sensor
(part no. 9)
Cylinder head temp. sensor
(part no. 8)
Wiring Instructions for DC models (See 2.2)
Wiring Instructions for AC models (See 2.2)
Main wiring
(
part no. 3
)
Red/Positive power connect to the
power wire of the Vespa.
Brown/RPM wire: connect to 12V light
ux cable. Please check section 2.2
for details.
Black/Ground wire: connect to
the chassis or the engine.
Provide good ground connection.
Binder (part no.11)
Red/positive pole: Connect to the
battery DC 12V.
Brown/RPM wire: Connect to 12V light
ux cable. Please check section 2.2
for details.
Black/Ground wire: Connect to the
chassis or the engine. Provide good
ground connection.
Main wiring
(
part no. 3
)
Extension button
(part no. 5)
To Next Page
