Adjusted to fit back rubber hole stopper.(Notes: The distance
between two flat as small as possible, if more than 1.5mm, motor
will be calorific value more and torque decreases.)
（5）裝風葉和外殼：Install Fan and the cover
a) 用手轉動縫紉機，使機針停在最高位，縫紉機手輪如圖 B
Use hand to turn the sewing machine head, let the needle stop in the highest
position
b) 如安裝圖所示將圖⑩風葉裝入並用圖⑪上的螺釘鎖緊,（注：
停車針位和風葉與電機間隙如圖 A、B、C）
According to the above install picture to install the fan(picture⑩), use the
screw(of picture⑪)to fix.(Attention: the needle stop position and the
clearance of fan and the motor is as following picture A/B/C)
c) 將如安裝圖所示將圖⑫塑膠外殼裝入並用圖⑬的螺釘鎖緊
（如圖 D）
According to the above install picture, install the cover(picture⑫), and use
the picture⑬ screw to fix(figure D below).

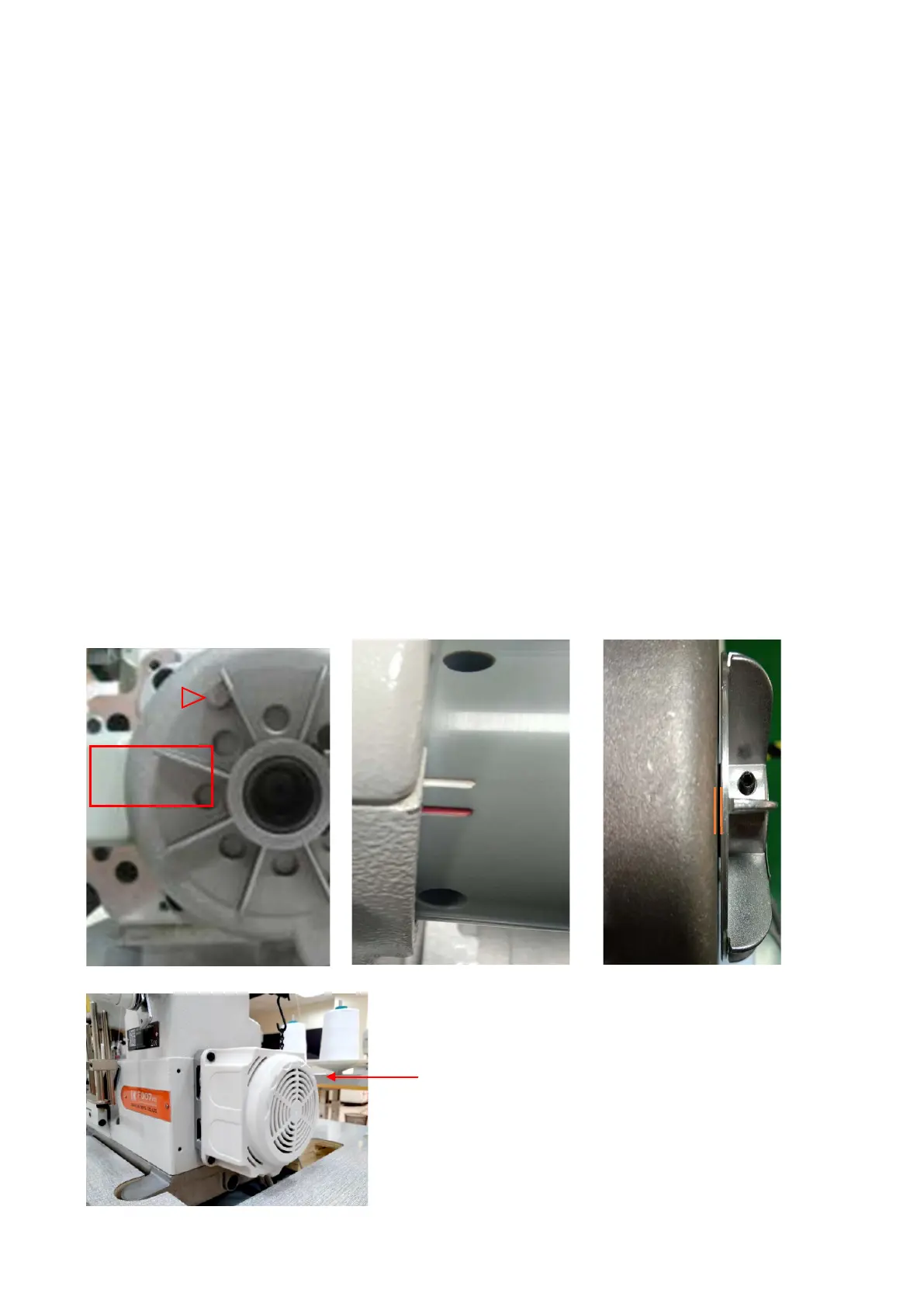

圖 A 圖 B 圖 C
圖 D
裝外罩
间隙 1.5～2
Clearance
1.5～2
感应磁铁
Induct magnet
